Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
WSM640SC-PU2

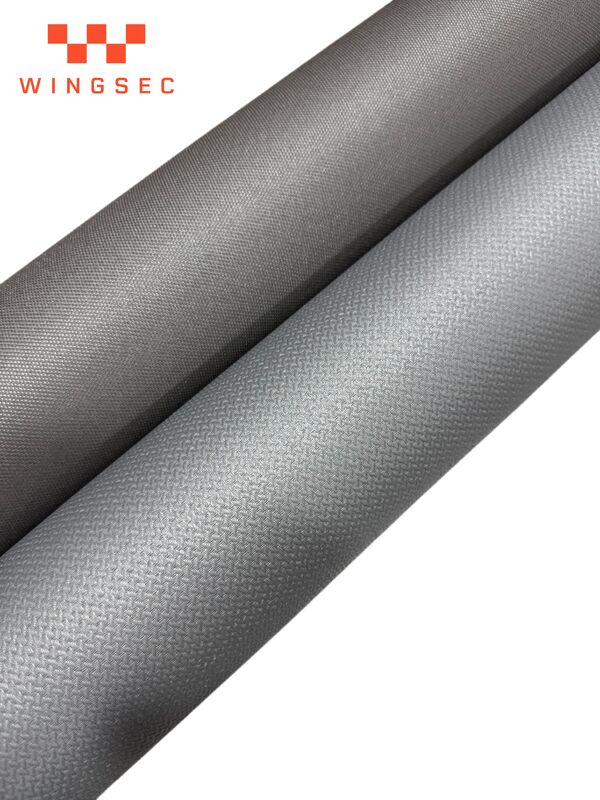

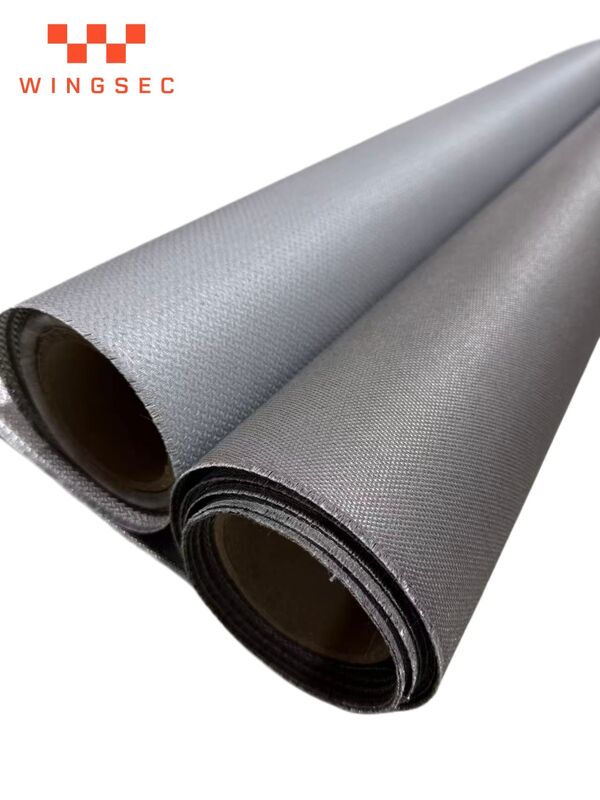

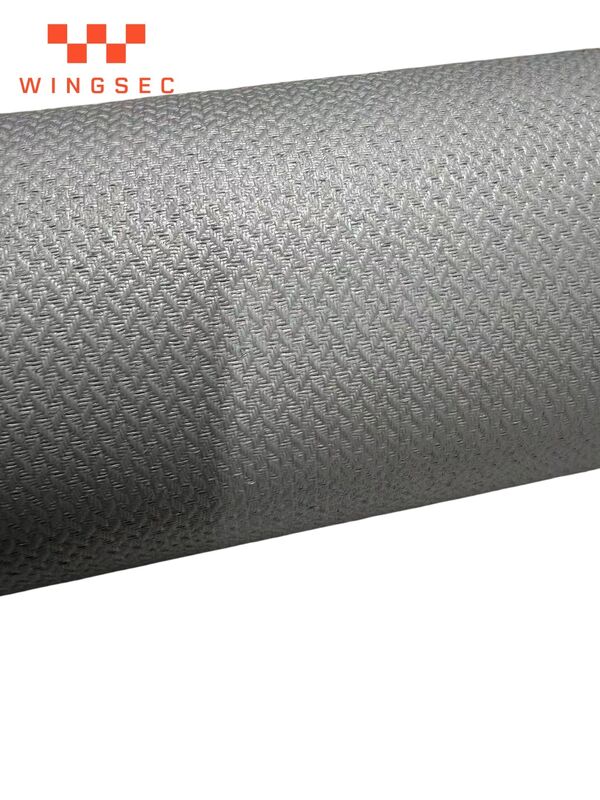

700℃ Stainless Steel Wire Reinforced Pu Coated Fiberglass Cloth For Fireproof Curtain
Description:
This is a specially formulated, medium-weight fiberglass fabric, double-coated with aluminum-colored polyurethane to form a reflective, heat-insulating layer and enhance the fabric's durability and flexibility.
It can be used in fire curtains, smoke curtains, high-temperature curtains, welding curtains, and fire protection systems. It can withstand temperatures up to 550 degrees Celsius. It is completely asbestos-free and harmless to humans and animals.
Product Features
Excellent fire resistance and high-temperature resistance up to 880°C.
Provides effective heat resistance as well as smoke and gas sealing performance.
Features outstanding puncture resistance and tear resistance.
Asbestos-free, non-irritating to the skin, and comfortable to handle.
Offers high stability and a long service life.
Resistant to water, oil, and various chemicals.
Application
Insulation pads, insulation covers, high-temperature gaskets, high-temperature seals, fire curtains, fire covers, fire jackets, furnace curtains, fire barrier shields, automotive exhaust covers, expansion joint lining, expansion joint pillows, engine system protection, oven doors, process doors
Fiberglass S.S. (V4A) Wire Fabric Series Basic Cloth products
| Product Type | Thickness mm | Weight g/m2 | Weave |
| FW5005 | 0.5 | 520 | Plain |
| YD MP666SC | 0.65 | 630 | Satin |
| YD 666 | 0.65 | 630 | Herringbone pattern |
| YD M666 | 0.65 | 630 | Satin |
| YD M860SC | 0.8 | 820 | Satin |
| YD M30S | 1.5 | 1200 | Plain |
V4A stainless steel wire reinforced fiberglass fabric gives additional strength, abrasion resistance, cut resistance for coating Silicone, PU, vermiculite, high temperature treatment, etc.
| Maximum continuous operating temperature limits for surface treatment materials: |
| Silicone - 500°F (260°C) |
| Polyurethane (PU) - 300°F (150°C) |
| Acrylic - 300°F (150°C) |
| Fluorocarbon (C-F) - 300°F (150°C) |
| Aluminum foil - 600°F (315°C) |
| Graphite - 1382°F (750°C) |
| Vermiculite - 1382°F (750°C) |
| High-temperature solvents/Calcium Silicate - 1382°F (750°C) |
Key Features:
Fire & Smoke Curtain
A: We are a professional source factory specializing in fiberglass fabrics and coated high-temperature textiles. Our factory has extensive experience in manufacturing stainless steel wire reinforced fiberglass fabric for industrial fire and heat protection applications.
A: With over 20 years of industry experience, Junsek provides stable quality, competitive factory-direct pricing, and professional technical support. We have complete production lines for weaving, coating, and finishing high-performance fiberglass fabrics.
A: Stainless steel wire reinforced fiberglass fabric offers higher tensile strength, improved abrasion resistance, enhanced puncture resistance, and superior heat resistance compared with standard fiberglass cloth. It is widely used for welding blankets, fire curtains, expansion joints, insulation covers, and industrial thermal protection.
A: Yes. We can customize thickness, width, coating type, weight, weave pattern, temperature resistance, and roll length according to your requirements.
A: Standard products are usually shipped within 15–30 days after order confirmation, depending on order quantity and specifications.
A: We accept T/T, L/C, D/P, and other mutually agreed payment terms.
A: In addition to stainless steel wire reinforced fiberglass fabric, we also manufacture silicone coated fiberglass fabric, PU coated fiberglass fabric, acrylic coated fiberglass cloth, EPDM coated fiberglass fabric, aluminum foil fiberglass cloth, high silica fabric, carbon fiber felt, welding blankets, and fire blanket materials.
A: Yes, free samples are available for quality evaluation. Please contact us with your detailed requirements.
