Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
WSFW5005-PU2

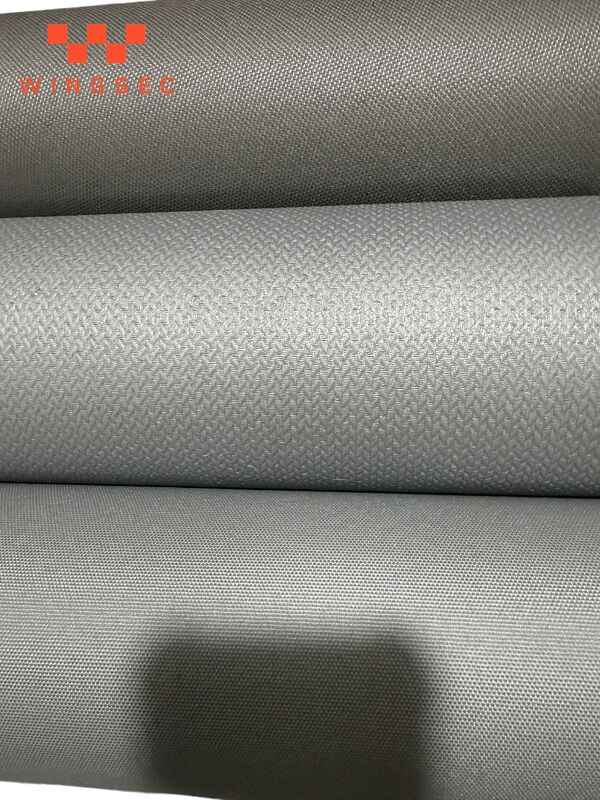

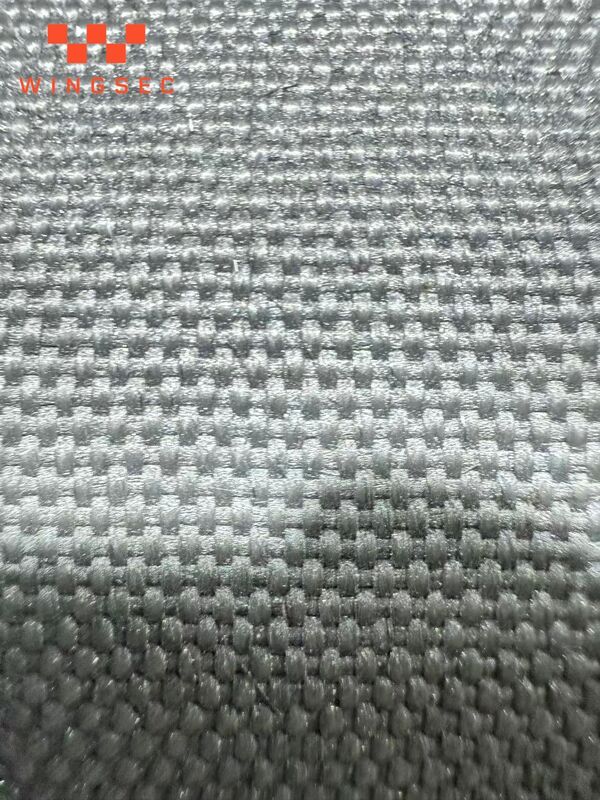

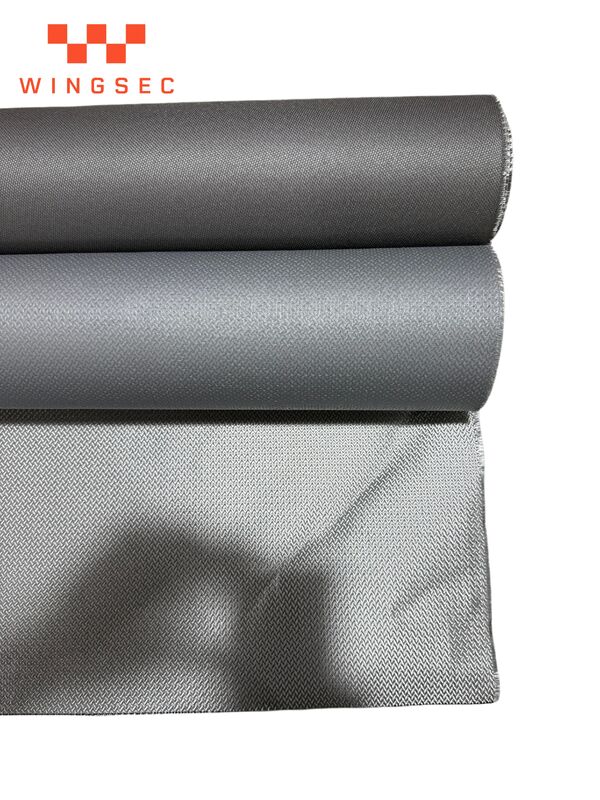

640S Stainless steel wire reinforced fiberglass fabrics for fire and smoke curtains | 0.55mm 640gsm
Description:
Product Features
1. High temperature resistance up to 1200℃.
2. Strong fire resistant, good smoke and gas sealing.
3. good tear strength resistance, high strength, good puncture resistance.
4. High stability, Durable.
5. Chemical resistance, oilproof, waterproof.
6. No harm to human body, asbestos free, halogen free.
7. Environmentally friendly.
Application
This material is widely used in fire and smoke curtains, welding blankets, expansion joints, removable insulation covers, thermal barriers, and industrial heat shielding applications. It is especially suitable for industries such as shipbuilding, metallurgy, power generation, construction, and automotive manufacturing where reliable fire resistance and long service life are required.
Fiberglass S.S. (V4A) Wire Fabric Series Basic Cloth products
| Style | FW5005 | 640S | 660SC | 860SC | 860SC | M24S | M30S | M35S | Post-Processing and typical applications |
| Warp Yarn | EC9 68*2+Steel wire | EC9 68*2+Steel wire | EC9 68*2+Steel wire | EC9 68*3+Steel wire | EC9 68*3+Steel wire | ET9 860+Steel wire | ET9 500+Steel wire | ET9 860+Steel wire | |
| Fill Yarn | EC9 68*2+Steel wire | EC9 68*2+Steel wire | EC9 68*2+Steel wire | EC9 68*3+Steel wire | EC9 68*3+Steel wire | ET9 860+Steel wire | ET9 500+Steel wire | ET9 1800+Steel wire | PU coated for fire and smoke curtains; Vermiculite coated for thermal insulation blankets. |
| Weave | Plain | 8H Satin | 8H Satin | 8H Satin | 8H Satin | Plain | Plain | Plain | |
| Thread Count Warp (Per cm) |
16±1 | 16±1 | 16±1 | 16±1 | 16±1 | 15±2 | 30.5±2 | 15±2 | |
| Thread Count Fill (Per cm) |
9±1 | 15±1 | 15±1 | 15±1 | 15±1 | 9.5±1 | 19.2±1 | 10±1 | |
| Basic Weight (g/m2) | 480 | 640 | 650 | 825 | 825 | 820 | 1200 | 1200 | |
| Thickness(mm) | 0.5 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 | 1 | 1.5 | |
| Tensile strength Warp (N/2.5cm) | ≥1800 | ≥2300 | ≥2400 | ≥2700 | ≥2700 | / | / | / | |
| Tensile strength Fill (N/2.5cm) | ≥1200 | ≥2200 | ≥2200 | ≥2700 | ≥2700 | / | / | / | |
| Working Temperature (ºC) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
Fiberglass S.S. (V4A) fabric combines fiberglass with stainless steel (V4A) wire for enhanced strength and durability.It offers excellent thermal resistance and mechanical stability, making it ideal for demanding applications like heat shields, fire barriers, and industrial insulation in harsh environments. Contact us to know more about fiberglass fabric with s.s. wire reinforced.
| Maximum continuous operating temperature limits for surface treatment materials: |
| Silicone - 500°F (260°C) |
| Polyurethane (PU) - 300°F (150°C) |
| Acrylic - 300°F (150°C) |
| Fluorocarbon (C-F) - 300°F (150°C) |
| Aluminum foil - 600°F (315°C) |
| Graphite - 1382°F (750°C) |
| Vermiculite - 1382°F (750°C) |
| High-temperature solvents/Calcium Silicate - 1382°F (750°C) |
Key Features:
Fire & Smoke Curtain
A: We are a professional source factory specializing in fiberglass fabrics and coated high-temperature textiles. Our factory has extensive experience in manufacturing stainless steel wire reinforced fiberglass fabric for industrial fire and heat protection applications.
A: With over 20 years of industry experience, Junsek provides stable quality, competitive factory-direct pricing, and professional technical support. We have complete production lines for weaving, coating, and finishing high-performance fiberglass fabrics.
A: Stainless steel wire reinforced fiberglass fabric offers higher tensile strength, improved abrasion resistance, enhanced puncture resistance, and superior heat resistance compared with standard fiberglass cloth. It is widely used for welding blankets, fire curtains, expansion joints, insulation covers, and industrial thermal protection.
A: Yes. We can customize thickness, width, coating type, weight, weave pattern, temperature resistance, and roll length according to your requirements.
A: Standard products are usually shipped within 15–30 days after order confirmation, depending on order quantity and specifications.
A: We accept T/T, L/C, D/P, and other mutually agreed payment terms.
A: In addition to stainless steel wire reinforced fiberglass fabric, we also manufacture silicone coated fiberglass fabric, PU coated fiberglass fabric, acrylic coated fiberglass cloth, EPDM coated fiberglass fabric, aluminum foil fiberglass cloth, high silica fabric, carbon fiber felt, welding blankets, and fire blanket materials.
A: Yes, free samples are available for quality evaluation. Please contact us with your detailed requirements.
