Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
WSFW5005-PU2

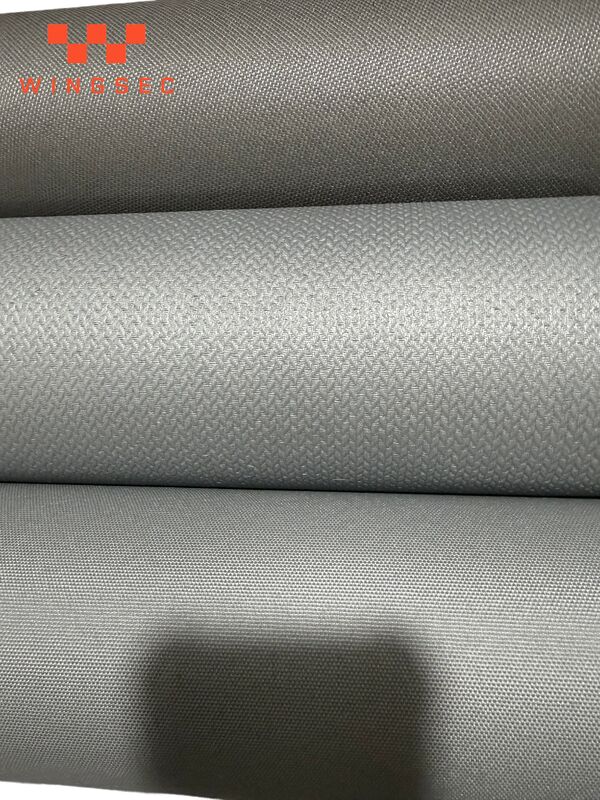

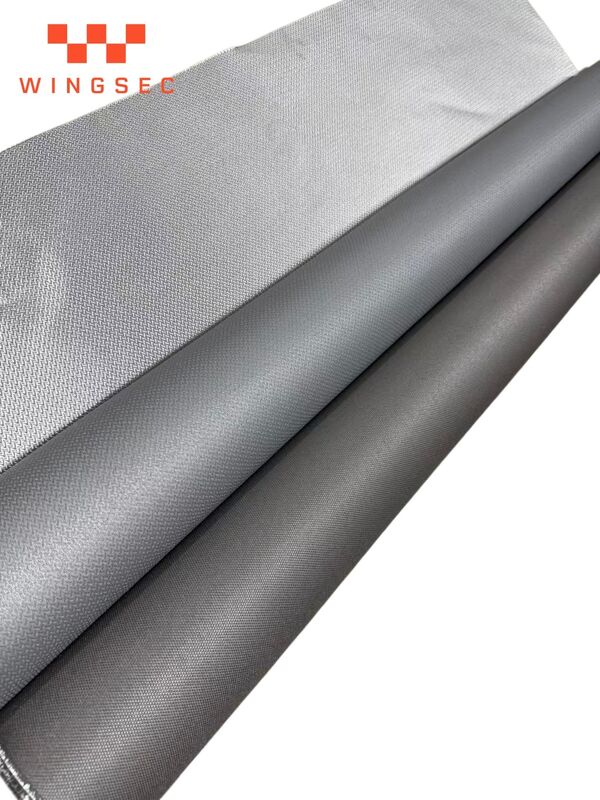

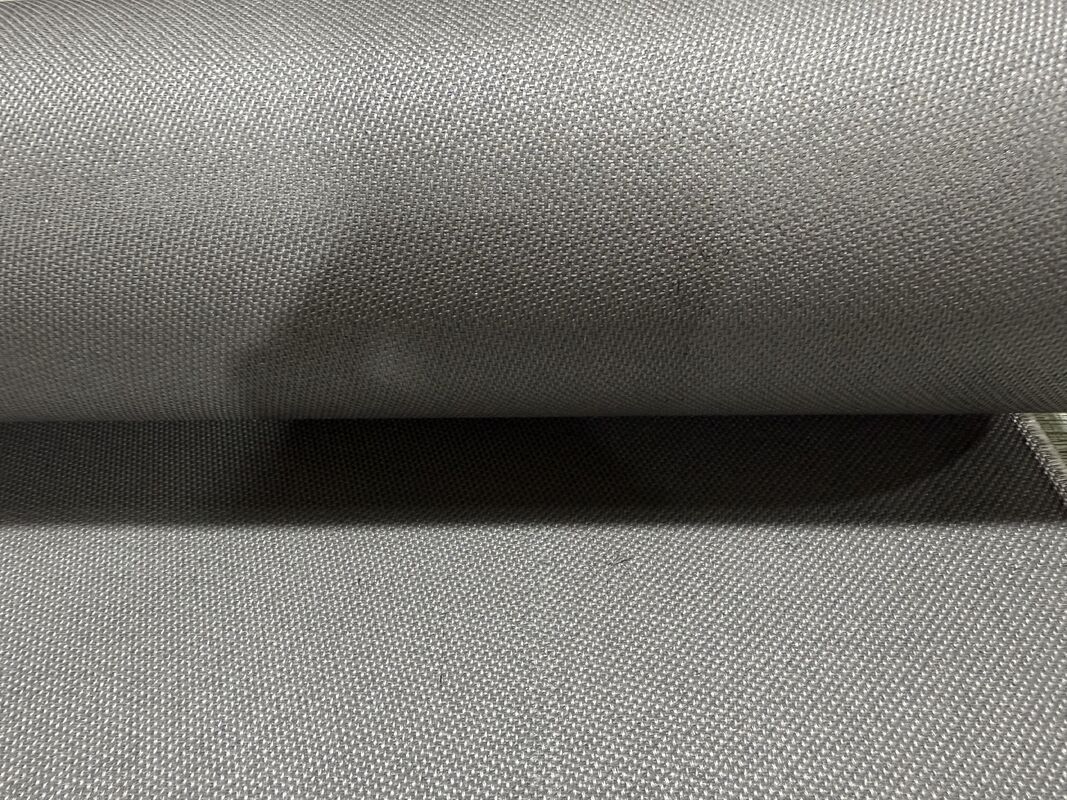

Fire Curtains Barrier Fibreglass Cloth Roll – 0.5/0.6/0.8mm Stainless Steel Insert Fiberglass Cloth
Description:
Product Features
1. High temperature resistance up to 1200℃.
2. Strong fire resistant, good smoke and gas sealing.
3. good tear strength resistance, high strength, good puncture resistance.
4. High stability, Durable.
5. Chemical resistance, oilproof, waterproof.
6. No harm to human body, asbestos free, halogen free.
7. Environmentally friendly.
Application
This material is widely used in fire and smoke curtains, welding blankets, expansion joints, removable insulation covers, thermal barriers, and industrial heat shielding applications. It is especially suitable for industries such as shipbuilding, metallurgy, power generation, construction, and automotive manufacturing where reliable fire resistance and long service life are required.
Fiberglass S.S. (V4A) Wire Fabric Series Basic Cloth products
| Product Type | Thickness mm | Weight g/m2 | Weave |
| FW5005 | 0.5 | 520 | Plain |
| YD MP666SC | 0.65 | 630 | Satin |
| YD 666 | 0.65 | 630 | Herringbone pattern |
| YD M666 | 0.65 | 630 | Satin |
| YD M860SC | 0.8 | 820 | Satin |
| YD M30S | 1.5 | 1200 | Plain |
V4A stainless steel wire reinforced fiberglass fabric gives additional strength, abrasion resistance, cut resistance for coating Silicone, PU, vermiculite, high temperature treatment, etc.
| Maximum continuous operating temperature limits for surface treatment materials: |
| Silicone - 500°F (260°C) |
| Polyurethane (PU) - 300°F (150°C) |
| Acrylic - 300°F (150°C) |
| Fluorocarbon (C-F) - 300°F (150°C) |
| Aluminum foil - 600°F (315°C) |
| Graphite - 1382°F (750°C) |
| Vermiculite - 1382°F (750°C) |
| High-temperature solvents/Calcium Silicate - 1382°F (750°C) |
Key Features:
Fire & Smoke Curtain
A: We are a professional source factory specializing in fiberglass fabrics and coated high-temperature textiles. Our factory has extensive experience in manufacturing stainless steel wire reinforced fiberglass fabric for industrial fire and heat protection applications.
A: With over 20 years of industry experience, Junsek provides stable quality, competitive factory-direct pricing, and professional technical support. We have complete production lines for weaving, coating, and finishing high-performance fiberglass fabrics.
A: Stainless steel wire reinforced fiberglass fabric offers higher tensile strength, improved abrasion resistance, enhanced puncture resistance, and superior heat resistance compared with standard fiberglass cloth. It is widely used for welding blankets, fire curtains, expansion joints, insulation covers, and industrial thermal protection.
A: Yes. We can customize thickness, width, coating type, weight, weave pattern, temperature resistance, and roll length according to your requirements.
A: Standard products are usually shipped within 15–30 days after order confirmation, depending on order quantity and specifications.
A: We accept T/T, L/C, D/P, and other mutually agreed payment terms.
A: In addition to stainless steel wire reinforced fiberglass fabric, we also manufacture silicone coated fiberglass fabric, PU coated fiberglass fabric, acrylic coated fiberglass cloth, EPDM coated fiberglass fabric, aluminum foil fiberglass cloth, high silica fabric, carbon fiber felt, welding blankets, and fire blanket materials.
A: Yes, free samples are available for quality evaluation. Please contact us with your detailed requirements.
