Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
WSFW5005-PU2

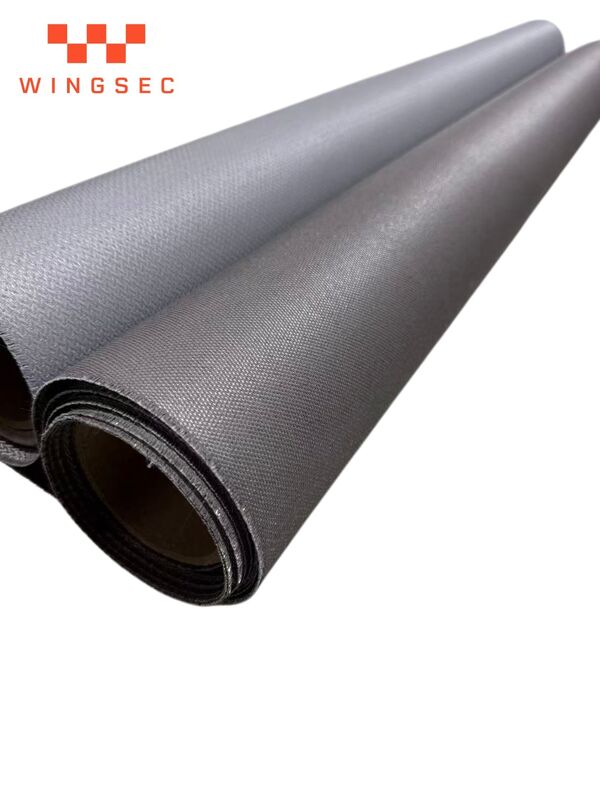

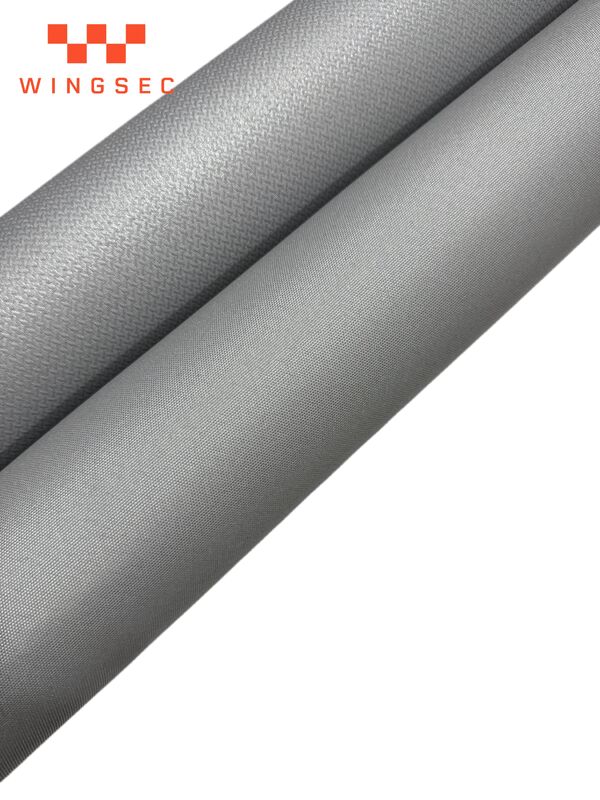

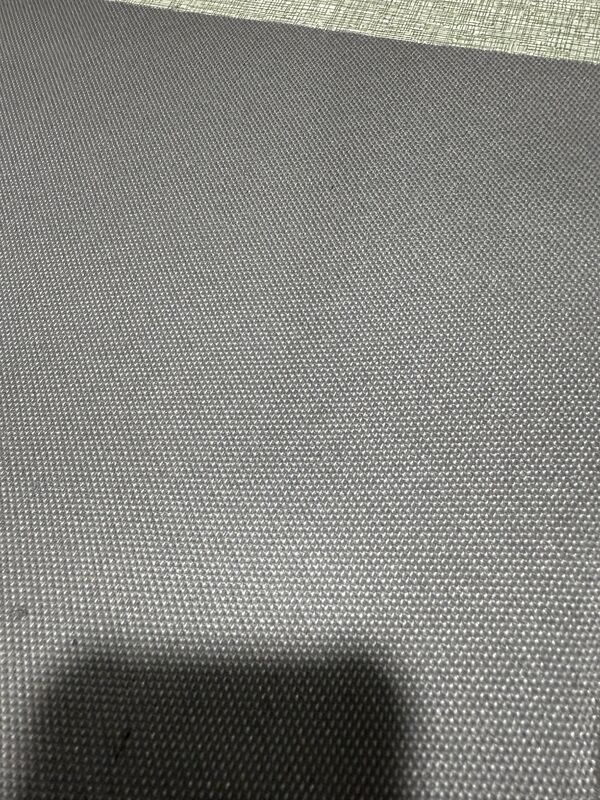

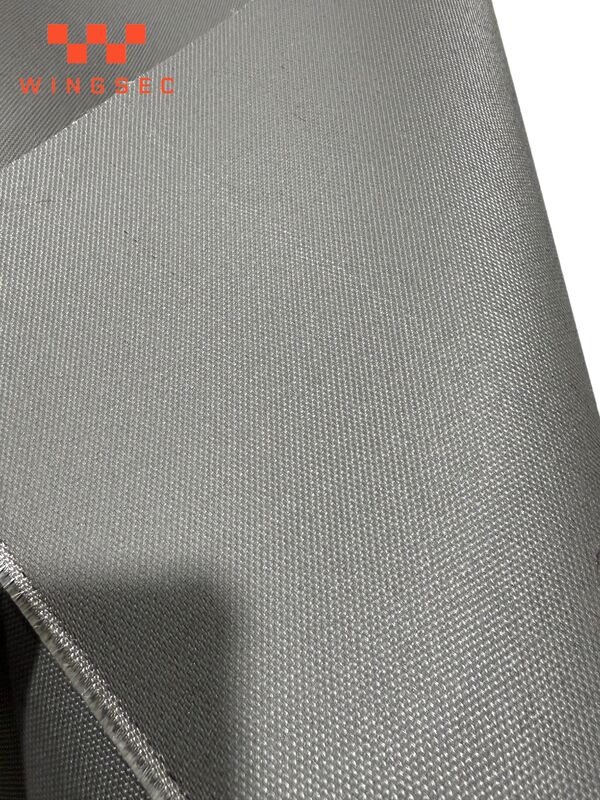

Radiant Heat Reflective Stainless Laminated Fiberglass Fabric High Temperature Heat Resistant
Description:
Product Features
It boasts excellent tensile strength, ensuring strong structural stability even in harsh environments. With high temperature resistance up to 1000℃, it can withstand extreme heat without deformation or damage. The fabric also features strong chemical corrosion resistance, making it suitable for use in corrosive industrial settings. Additionally, it has superior dimensional stability, uniform weaving density, good breathability and non-combustible properties, outperforming ordinary fiberglass fabrics in durability and reliability. It is lightweight, flexible and easy to cut and install, reducing construction and application costs.
Application
This fabric is widely used in multiple industrial and commercial fields, including industrial insulation, fire curtains, welding blankets and equipment protection. It is also an ideal choice for FRP reinforcement, boiler insulation and exhaust system wrapping. Moreover, it is applicable in shipbuilding and aerospace component protection, serving as a cost-effective, long-lasting solution for refineries, power plants, construction projects and various high-temperature industrial scenarios. Choose our product for stable performance and professional protection.
Fiberglass S.S. (V4A) Wire Fabric Series Basic Cloth products
| Style | FW5005 | 640S | 660SC | 860SC | 860SC | M24S | M30S | M35S | Post-Processing and typical applications |
| Warp Yarn | EC9 68*2+Steel wire | EC9 68*2+Steel wire | EC9 68*2+Steel wire | EC9 68*3+Steel wire | EC9 68*3+Steel wire | ET9 860+Steel wire | ET9 500+Steel wire | ET9 860+Steel wire | |
| Fill Yarn | EC9 68*2+Steel wire | EC9 68*2+Steel wire | EC9 68*2+Steel wire | EC9 68*3+Steel wire | EC9 68*3+Steel wire | ET9 860+Steel wire | ET9 500+Steel wire | ET9 1800+Steel wire | PU coated for fire and smoke curtains; Vermiculite coated for thermal insulation blankets. |
| Weave | Plain | 8H Satin | 8H Satin | 8H Satin | 8H Satin | Plain | Plain | Plain | |
| Thread Count Warp (Per cm) |
16±1 | 16±1 | 16±1 | 16±1 | 16±1 | 15±2 | 30.5±2 | 15±2 | |
| Thread Count Fill (Per cm) |
9±1 | 15±1 | 15±1 | 15±1 | 15±1 | 9.5±1 | 19.2±1 | 10±1 | |
| Basic Weight (g/m2) | 480 | 640 | 650 | 825 | 825 | 820 | 1200 | 1200 | |
| Thickness(mm) | 0.5 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 | 1 | 1.5 | |
| Tensile strength Warp (N/2.5cm) | ≥1800 | ≥2300 | ≥2400 | ≥2700 | ≥2700 | / | / | / | |
| Tensile strength Fill (N/2.5cm) | ≥1200 | ≥2200 | ≥2200 | ≥2700 | ≥2700 | / | / | / | |
| Working Temperature (ºC) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
Fiberglass S.S. (V4A) fabric combines fiberglass with stainless steel (V4A) wire for enhanced strength and durability.It offers excellent thermal resistance and mechanical stability, making it ideal for demanding applications like heat shields, fire barriers, and industrial insulation in harsh environments. Contact us to know more about fiberglass fabric with s.s. wire reinforced.
| Maximum continuous operating temperature limits for surface treatment materials: |
| Silicone - 500°F (260°C) |
| Polyurethane (PU) - 300°F (150°C) |
| Acrylic - 300°F (150°C) |
| Fluorocarbon (C-F) - 300°F (150°C) |
| Aluminum foil - 600°F (315°C) |
| Graphite - 1382°F (750°C) |
| Vermiculite - 1382°F (750°C) |
| High-temperature solvents/Calcium Silicate - 1382°F (750°C) |
Key Features:
Fire & Smoke Curtain
A: We are a professional source factory specializing in fiberglass fabrics and coated high-temperature textiles. Our factory has extensive experience in manufacturing stainless steel wire reinforced fiberglass fabric for industrial fire and heat protection applications.
A: With over 20 years of industry experience, Junsek provides stable quality, competitive factory-direct pricing, and professional technical support. We have complete production lines for weaving, coating, and finishing high-performance fiberglass fabrics.
A: Stainless steel wire reinforced fiberglass fabric offers higher tensile strength, improved abrasion resistance, enhanced puncture resistance, and superior heat resistance compared with standard fiberglass cloth. It is widely used for welding blankets, fire curtains, expansion joints, insulation covers, and industrial thermal protection.
A: Yes. We can customize thickness, width, coating type, weight, weave pattern, temperature resistance, and roll length according to your requirements.
A: Standard products are usually shipped within 15–30 days after order confirmation, depending on order quantity and specifications.
A: We accept T/T, L/C, D/P, and other mutually agreed payment terms.
A: In addition to stainless steel wire reinforced fiberglass fabric, we also manufacture silicone coated fiberglass fabric, PU coated fiberglass fabric, acrylic coated fiberglass cloth, EPDM coated fiberglass fabric, aluminum foil fiberglass cloth, high silica fabric, carbon fiber felt, welding blankets, and fire blanket materials.
A: Yes, free samples are available for quality evaluation. Please contact us with your detailed requirements.
