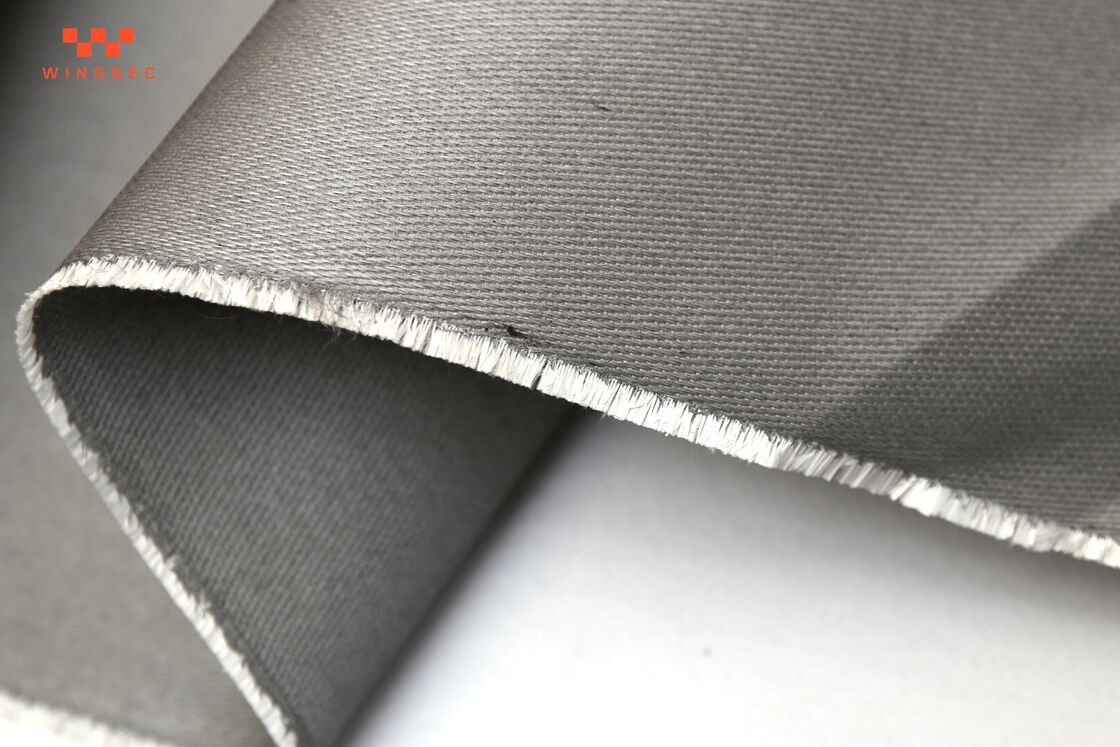

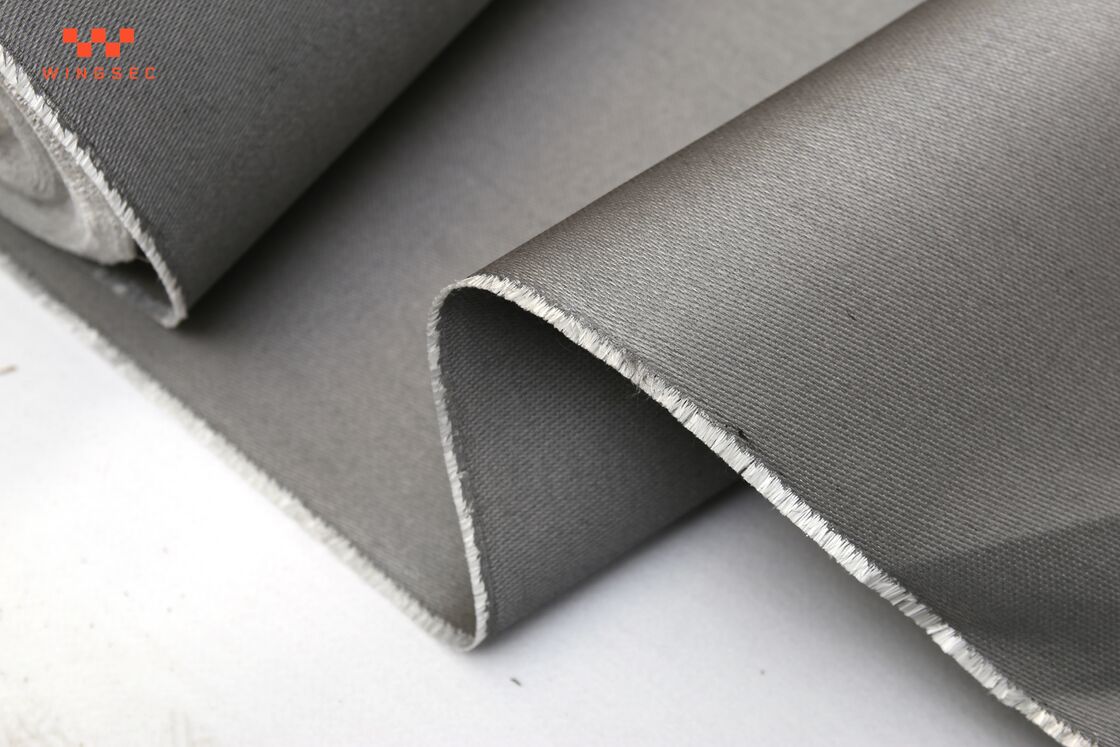

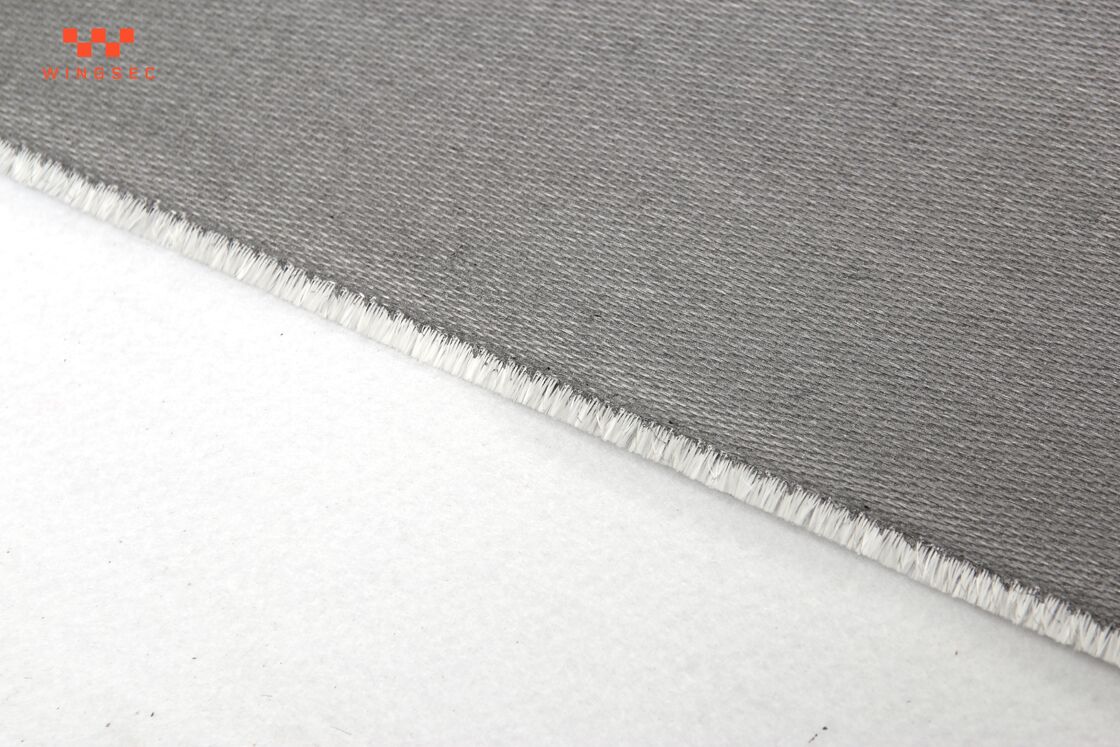

Fire Curtain Fabric Combining PU Coated Fiberglass and Stainless Steel Wire for Fire Resistance and Mechanical Performance
Description:
PU-coated steel wire fiberglass fabric is a high-performance composite material made of multiple advanced materials, designed to provide superior durability, strength and versatility for industrial and commercial applications.
Composition:
This fabric employs a three-layer structure, combining the advantages of each layer:
Bottom Layer: High-strength fiberglass fabric, renowned for its excellent heat resistance, dimensional stability, and chemical inertness.
Reinforcing Layer: Embedded steel wires, evenly distributed, enhancing tensile strength, tear resistance, and structural rigidity.
Coating: Uniformly coated polyurethane (PU) layer on one or both sides, providing water resistance, abrasion resistance, and flexibility.
Product Features
- Block the spread of flames
This material has exceptional fire-resistant properties, effectively blocking the spread of flames, making it one of the best choices for fire curtain system.
- S.S. (V4A) wire insided
The stainless steel wire inside fiberglass fabric enhances its tensile strength and temperature resistance. It provides additional structural support, preventing deformation under high heat and mechanical stress, making the fabric more durable and reliable for industrial applications.
- Fire resistance 120 min at 1000 ºC
The material provides fire resistance for 120 minutes at 1000ºC (Integrity). When used with a sprinkler system, it can meet fire resistance tests for even longer durations.
Application
Insulation pads, insulation covers, high-temperature gaskets, high-temperature seals, fire curtains, fire covers, fire jackets, furnace curtains, fire barrier shields, automotive exhaust covers, expansion joint lining, expansion joint pillows, engine system protection, oven doors, process doors
Fiberglass S.S. (V4A) Wire Fabric Series Basic Cloth products
| Product Type |
Thickness mm |
Weight g/m2 |
Weave |
| FW5005 |
0.5 |
520 |
Plain |
| YD MP666SC |
0.65 |
630 |
Satin |
| YD 666 |
0.65 |
630 |
Herringbone pattern |
| YD M666 |
0.65 |
630 |
Satin |
| YD M860SC |
0.8 |
820 |
Satin |
| YD M30S |
1.5 |
1200 |
Plain |
V4A stainless steel wire reinforced fiberglass fabric gives additional strength, abrasion resistance, cut resistance for coating Silicone, PU, vermiculite, high temperature treatment, etc.
| Maximum continuous operating temperature limits for surface treatment materials: |
| Silicone - 500°F (260°C) |
| Polyurethane (PU) - 300°F (150°C) |
| Acrylic - 300°F (150°C) |
| Fluorocarbon (C-F) - 300°F (150°C) |
| Aluminum foil - 600°F (315°C) |
| Graphite - 1382°F (750°C) |
| Vermiculite - 1382°F (750°C) |
| High-temperature solvents/Calcium Silicate - 1382°F (750°C) |
Key Features:
Superior Strength: The combination of fiberglass and steel wire ensures high tensile strength and impact resistance, making it suitable for heavy-duty applications.
Water and Weather Resistance: The PU coating forms a seamless barrier, effectively blocking water, moisture, and UV radiation, ensuring long-term stable operation in harsh outdoor environments.
Heat Resistance: The fiberglass substrate can withstand high temperatures (up to 200°C, depending on the PU formulation), making it flame-retardant and suitable for high-temperature environments.
Flexibility and Durability: The PU coating gives the material elasticity, allowing it to bend without cracking, while also providing resistance to abrasion, oil, and chemical corrosion.
Lightweight: Despite its high strength, the material remains relatively lightweight, facilitating installation and transportation.
Fire & Smoke Curtain
