Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
WSM640SC-NLG2

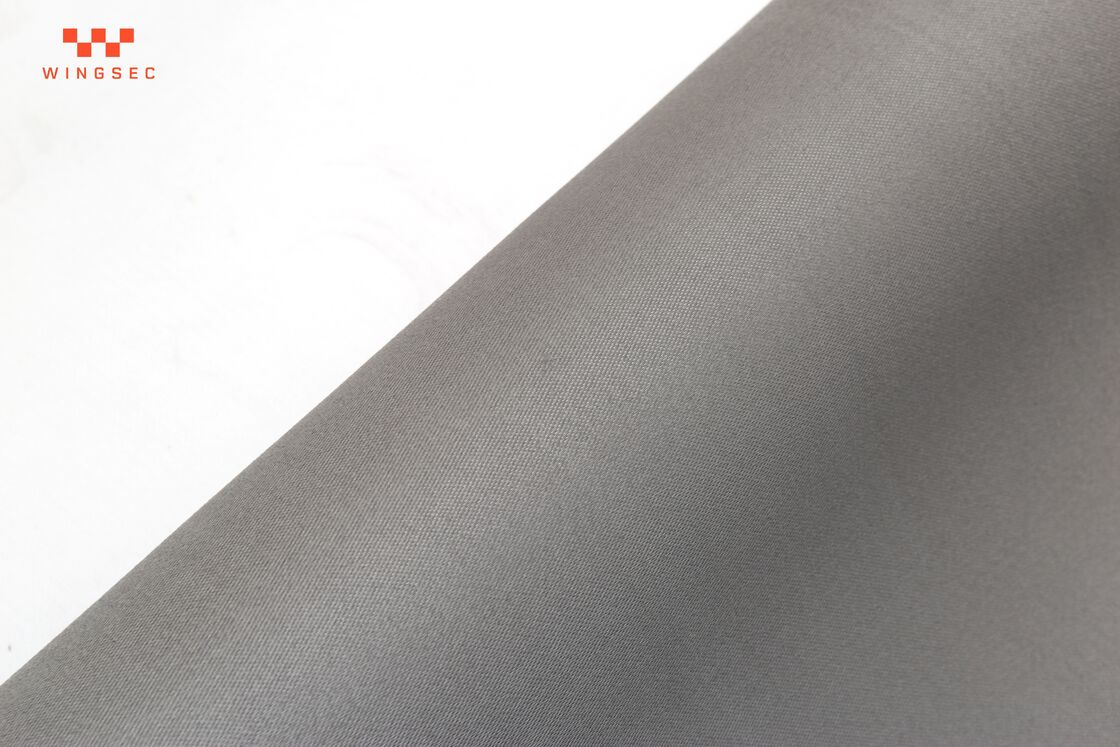

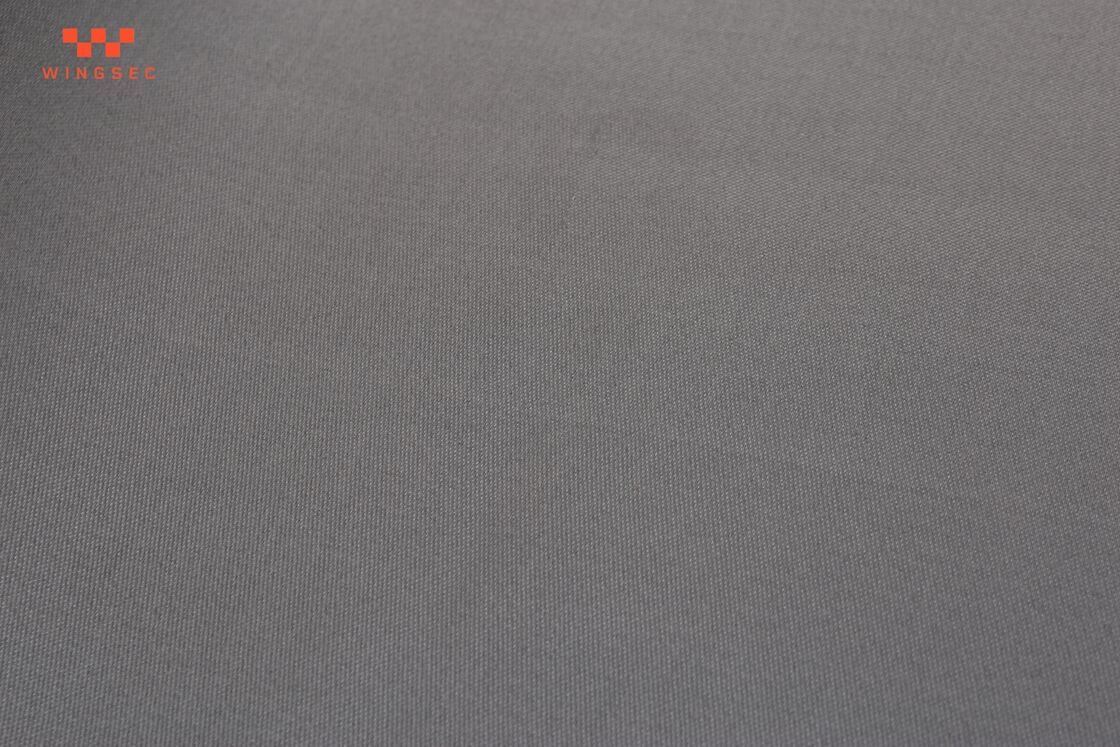

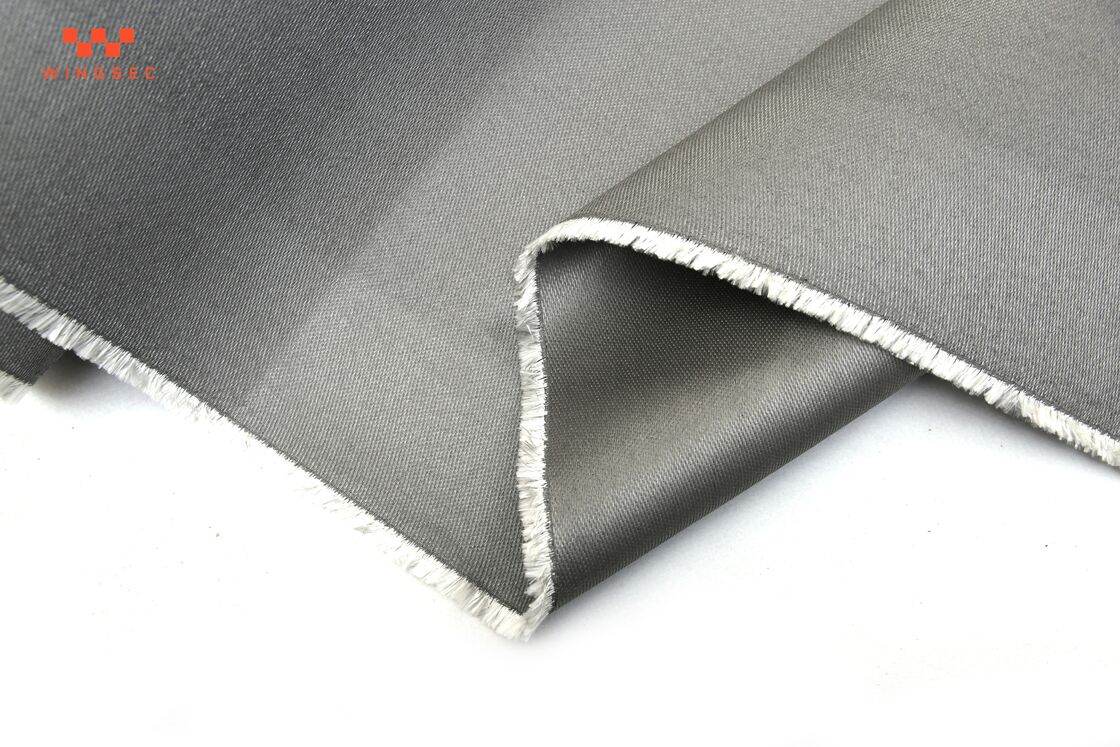

Fire Curtain Fabric Composed of PU Coated Fiberglass and Stainless Steel Wire for Fire Resistance and Mechanical Strength
Description:
Wingsec produces a variety of fiberglass fabrics with built-in 304 stainless steel wires. These fabrics exhibit higher strength at extreme temperatures compared to ordinary fiberglass fabrics. A variety of coatings are available, including vermiculite. Furthermore, we can also produce other steel alloys such as 316 and 304. These fabrics with built-in stainless steel wires are easy to process, resulting in finished parts with exceptional durability in extreme temperature environments.
Product Features
Application
Insulation pads, insulation covers, high-temperature gaskets, high-temperature seals, fire curtains, fire covers, fire jackets, furnace curtains, fire barrier shields, automotive exhaust covers, expansion joint lining, expansion joint pillows, engine system protection, oven doors, process doors
Fiberglass S.S. (V4A) Wire Fabric Series Basic Cloth products
| Product Type | Thickness mm | Weight g/m2 | Weave |
| FW5005 | 0.5 | 520 | Plain |
| YD MP666SC | 0.65 | 630 | Satin |
| YD 666 | 0.65 | 630 | Herringbone pattern |
| YD M666 | 0.65 | 630 | Satin |
| YD M860SC | 0.8 | 820 | Satin |
| YD M30S | 1.5 | 1200 | Plain |
V4A stainless steel wire reinforced fiberglass fabric gives additional strength, abrasion resistance, cut resistance for coating Silicone, PU, vermiculite, high temperature treatment, etc.
| Maximum continuous operating temperature limits for surface treatment materials: |
| Silicone - 500°F (260°C) |
| Polyurethane (PU) - 300°F (150°C) |
| Acrylic - 300°F (150°C) |
| Fluorocarbon (C-F) - 300°F (150°C) |
| Aluminum foil - 600°F (315°C) |
| Graphite - 1382°F (750°C) |
| Vermiculite - 1382°F (750°C) |
| High-temperature solvents/Calcium Silicate - 1382°F (750°C) |
Fire & Smoke Curtain
