Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
WSM640SC-NLG2

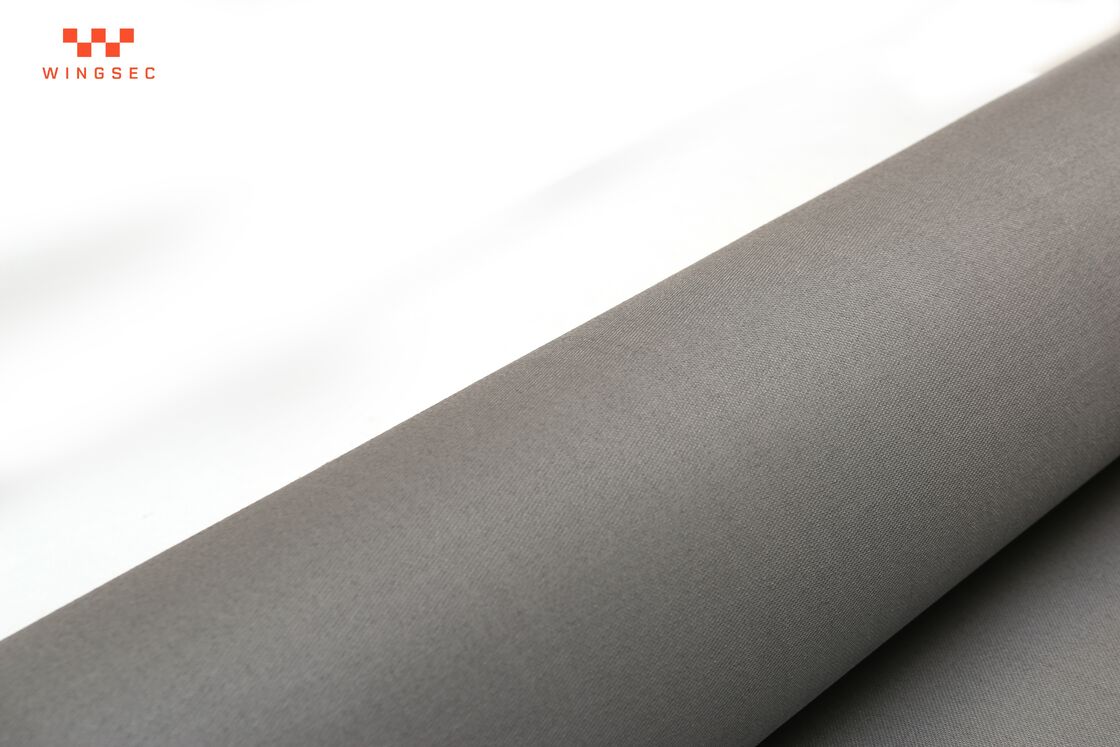

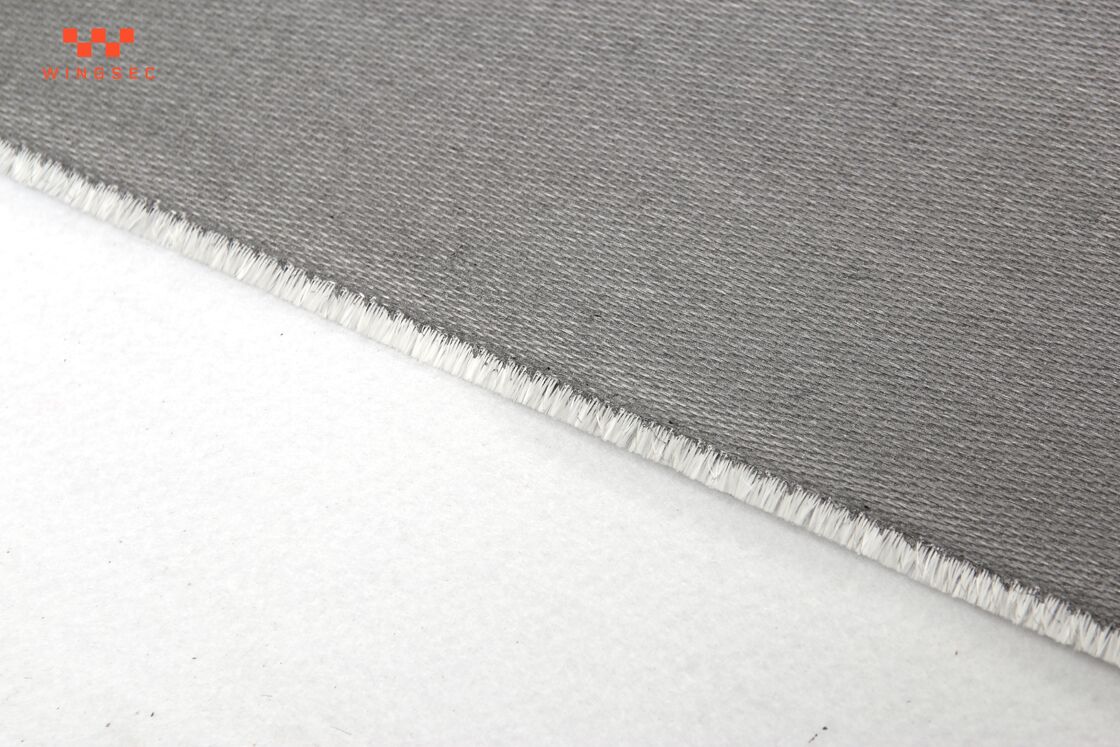

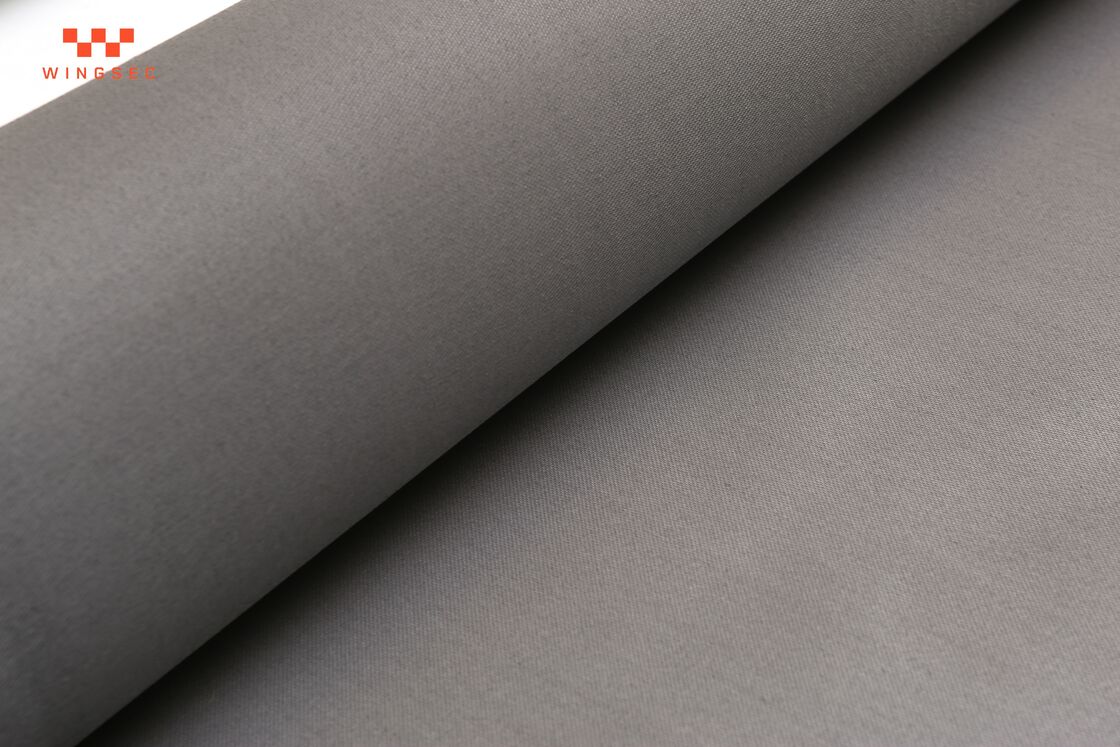

540gsm PU Coated Fiberglass S.S. V4A Wire Reinforced Fiberglass Fabrics
Description:
This is a S.S wire reinforced fiberglass fabric with a formulated polyurethane aluminum polymer which provides a heat reflecting surface as well as other properties for the manufacturer of smoke curtain, heat shield and other types of fire control systems.
Product Features
Application
Glass Fabric with V4A Wire Reinforcement widely used in industries such as construction, chemical, oil refining, automotive, and marine for thermal protection, weatherproofing, gas and liquid impermeable covering, removable insulation covering, safety color protection systems, prefabricated curtains/blankets, automotive engine insulation, and vertical spark protection.
Fiberglass S.S. (V4A) Wire Fabric Series Basic Cloth products
| Product Type | Thickness mm | Weight g/m2 | Weave |
| FW5005 | 0.5 | 520 | Plain |
| YD MP666SC | 0.65 | 630 | Satin |
| YD 666 | 0.65 | 630 | Herringbone pattern |
| YD M666 | 0.65 | 630 | Satin |
| YD M860SC | 0.8 | 820 | Satin |
| YD M30S | 1.5 | 1200 | Plain |
V4A stainless steel wire reinforced fiberglass fabric gives additional strength, abrasion resistance, cut resistance for coating Silicone, PU, vermiculite, high temperature treatment, etc.
| Maximum continuous operating temperature limits for surface treatment materials: |
| Silicone - 500°F (260°C) |
| Polyurethane (PU) - 300°F (150°C) |
| Acrylic - 300°F (150°C) |
| Fluorocarbon (C-F) - 300°F (150°C) |
| Aluminum foil - 600°F (315°C) |
| Graphite - 1382°F (750°C) |
| Vermiculite - 1382°F (750°C) |
| High-temperature solvents/Calcium Silicate - 1382°F (750°C) |
Fire & Smoke Curtain
