Industrial Grade High Temperature Fiberglass Cloth Providing Excellent Heat Resistance and Thermal Insulation Properties
Wingsec High Silica Cloth Introduction

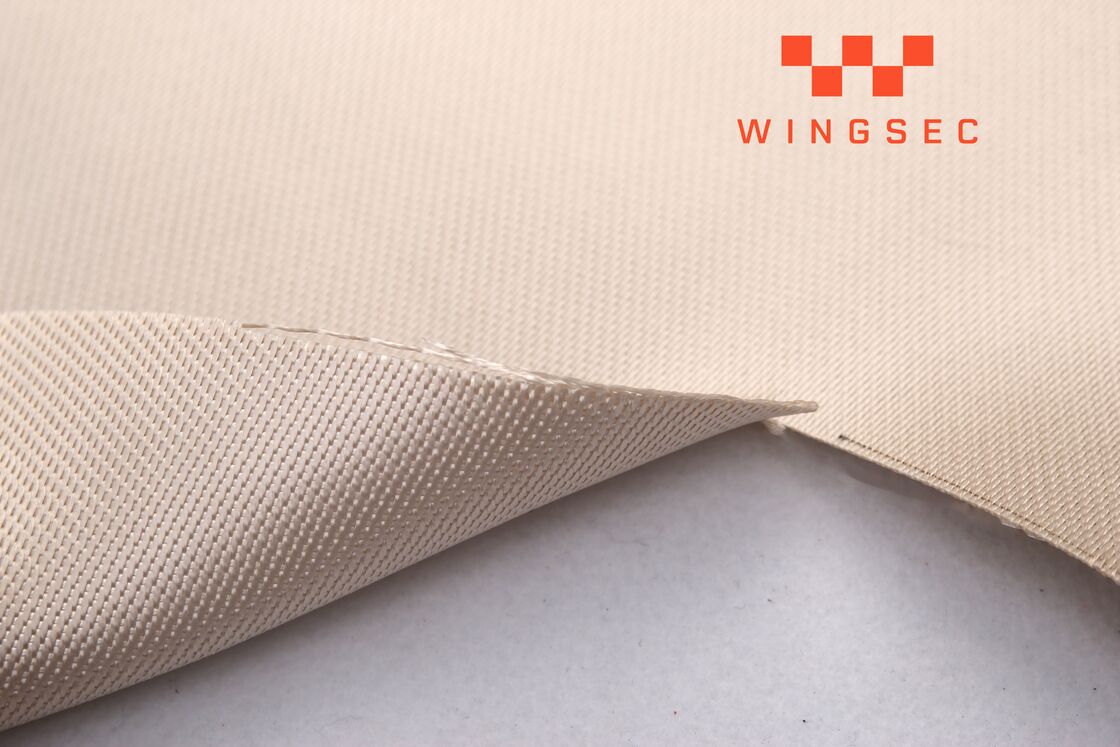

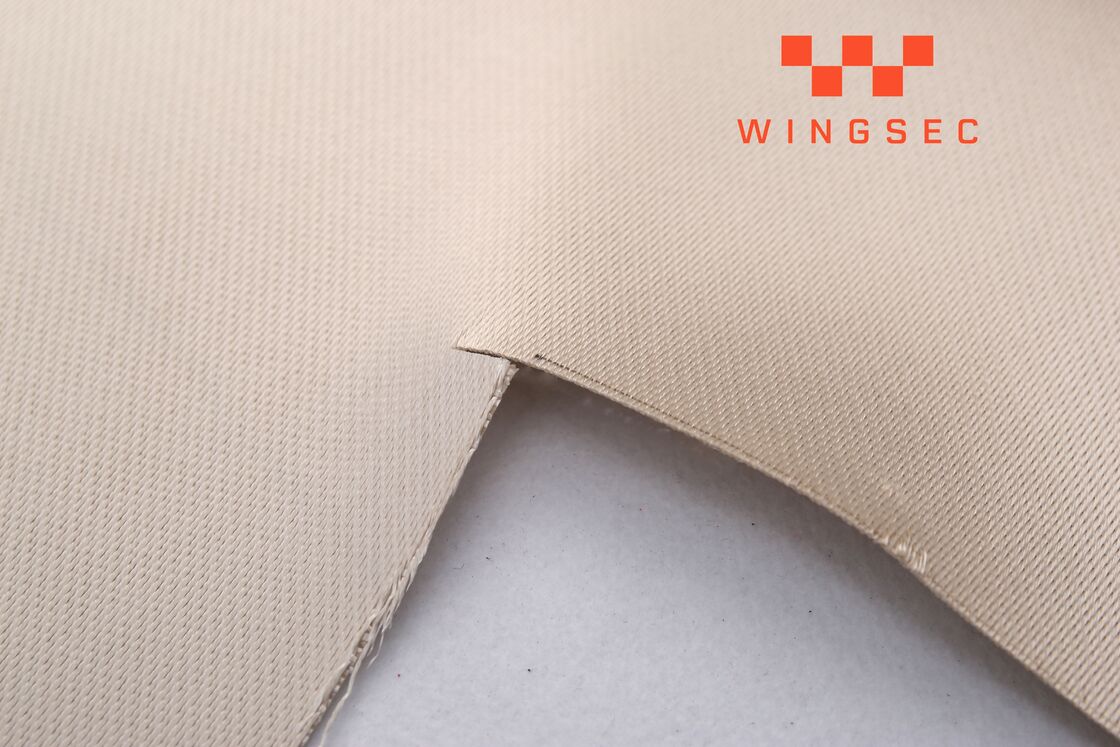

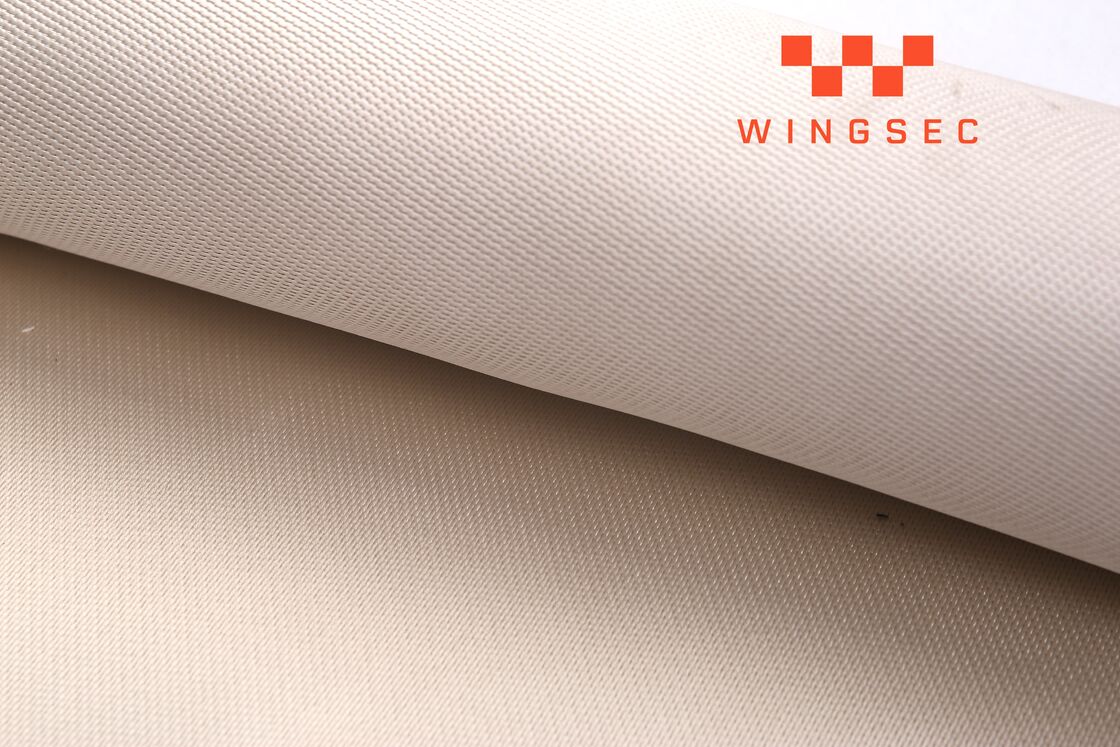

Woven silica fabric (also called high-silica fabric / silica cloth) is a high-performance heat-resistant textile woven from high-purity amorphous silica (SiO₂) fibers (typically ≥96% silica content). It is often chosen where standard fiberglass (E-glass) fails due to temperature or chemical exposure. These fabrics can be pre-shrunk to achieve a shrinkage rate of less than 1%.. For appliactions requiring greater thickness, texturized silica fabrics are available in 2.0 mm and 3.0 mm.
Widely used for welding protection, industrial thermal insulation, automotive exhaust heat shields, aerospace components, petrochemical pipeline insulation, steel mill fire safety, electrical high-temperature insulation, and fireproof barriers. It delivers reliable heat resistance, flame retardancy and thermal protection in extreme high-temperature environments.
Much More Related Products
|
Style
|
Thickness(mm)
|
Width (cm)
|
Weight (gsm)
|
SiO₂ %
|
LOI
|
Weave
|
|
WSBWS300
|
0.3土0.05
|
92/100
|
300土30
|
≥96
|
≤3
|
Plain
|
|
WSBWS300B
|
0.3土0.03
|
92/100
|
300土30
|
≥96
|
≤3
|
1/2 Twill
|
|
WSBWS400B
|
0.4土0.04
|
92/100
|
440土40
|
≥96
|
≤3
|
2/2 Twill
|
|
WSBSW400C
|
0.4土0.04
|
92/100/152
|
440土40
|
≥96
|
≤3
|
2/2 Twill
|
|
WSBWT400
|
0.4土0.04
|
92/100/152
|
400土40
|
≥96
|
≤3
|
Plain
|
|
WSBWS650
|
0.65土0.1
|
92/100/152
|
650土40
|
≥96
|
≤3
|
3/8 Satin
|
|
WSBWS1100
|
1.0土0.1
|
92/100/152
|
1100土60
|
≥96
|
≤3
|
5/12 Satin
|
|
WSBWS1150
|
1.15土0.15
|
92/100/152
|
1150土60
|
≥96
|
≤3
|
5/12 Satin
|
|
WSBWS1250
|
1.25土007
|
92/100/152
|
1250土60
|
≥96
|
≤3
|
5/12 Satin
|
Key Features
1. Superior Temperature Resistance: Our high-silica fabrics boast a temperature resistance up to 1000°C (1832°F), ensuring reliable insulation even under extreme high-temperature conditions. It is ideal for welding blankets, welding curtains, and other high-temperature fabrics.
2. Excellent Thermal Insulation: The high silica content in our fabrics provides superior thermal insulation, effectively reducing heat transfer. This property is crucial for industries requiring excellent thermal insulation, such as casting, metalworking, and automotive manufacturing.
3. Excellent Abrasion Resistance: Our high-silica fabrics are renowned for their durability and abrasion resistance, making them ideal for applications in harsh environments with severe mechanical abrasion. They are widely used in welding, manufacturing, and equipment protection.
4. Wide Range of Applications: Our high-silica fabrics are applicable to numerous industries and fields. These fabrics are ideal for thermal protection in industries such as petrochemicals, power generation, aerospace, and shipbuilding. They are also widely used in the production of fire-resistant clothing, heat shields, and high-temperature gaskets.
5. Silicone Coating: To further enhance performance, some of our high-silica fabrics are coated with a silicone coating. This coating enhances the fabric's resistance to molten metal splashes, sparks, and abrasion, making it suitable for applications requiring direct contact with high-temperature metals.
Main Applications
We are dedicated to delivering high-purity, premium-quality products. Our high-silica fiberglass cloth is expertly woven from 96% amorphous silica fibers, creating a distinctive silica texture that provides outstanding abrasion resistance and exceptional strength. The result is a high-strength woven silica cloth engineered to safeguard equipment and personnel in extreme temperatures and demanding environments.
Why Choose Us
- Uncompromising Quality: As a leading manufacturer, we uphold the highest standards of precision and quality. Our high-silica fabrics undergo rigorous testing to meet strict industry specifications, ensuring reliable performance in demanding environments.
- Extensive Product Range: We offer a wide selection of thicknesses and weights, providing flexibility to choose the ideal fabric for any application. Our tailored solutions meet the diverse needs of our customers.
- Expert Technical Support: Backed by deep industry expertise, our team provides comprehensive technical guidance to help you select the right high-silica fabric. We are committed to exceptional service and customer satisfaction.
