Place of Origin:
China
Brand Name:
Wingsec
Certification:
Heat Resistance Test Report
Model Number:
Silica Cloth
Wingsec your trusted source for high-quality fireproof insulation fabrics. We are proud to introduce our exceptional product line of High Silica Fabrics, designed to provide superior thermal protection in high-temperature environments. With an impressive temperature resistance of up to 1000°C (1832°F), our high silica fabrics offer unmatched performance and reliability. Read on to discover the outstanding features and applications of our high silica fabric range.
|
Style |
Thickness(mm) |
Width (cm) |
Weight (gsm) |
SiO₂ % |
LOI |
Weave |
|
WSBWS300 |
0.3土0.05 |
92/100 |
300土30 |
≥96 |
≤3 |
Plain |
|
WSBWS300B |
0.3土0.03 |
92/100 |
300土30 |
≥96 |
≤3 |
1/2 Twill |
|
WSBWS400B |
0.4土0.04 |
92/100 |
440土40 |
≥96 |
≤3 |
2/2 Twill |
|
WSBSW400C |
0.4土0.04 |
92/100/152 |
440土40 |
≥96 |
≤3 |
2/2 Twill |
|
WSBWT400 |
0.4土0.04 |
92/100/152 |
400土40 |
≥96 |
≤3 |
Plain |
|
WSBWS650 |
0.65土0.1 |
92/100/152 |
650土40 |
≥96 |
≤3 |
3/8 Satin |
|
WSBWS1100 |
1.0土0.1 |
92/100/152 |
1100土60 |
≥96 |
≤3 |
5/12 Satin |
|
WSBWS1150 |
1.15土0.15 |
92/100/152 |
1150土60 |
≥96 |
≤3 |
5/12 Satin |
|
WSBWS1250 |
1.25土007 |
92/100/152 |
1250土60 |
≥96 |
≤3 |
5/12 Satin |
Main Applications

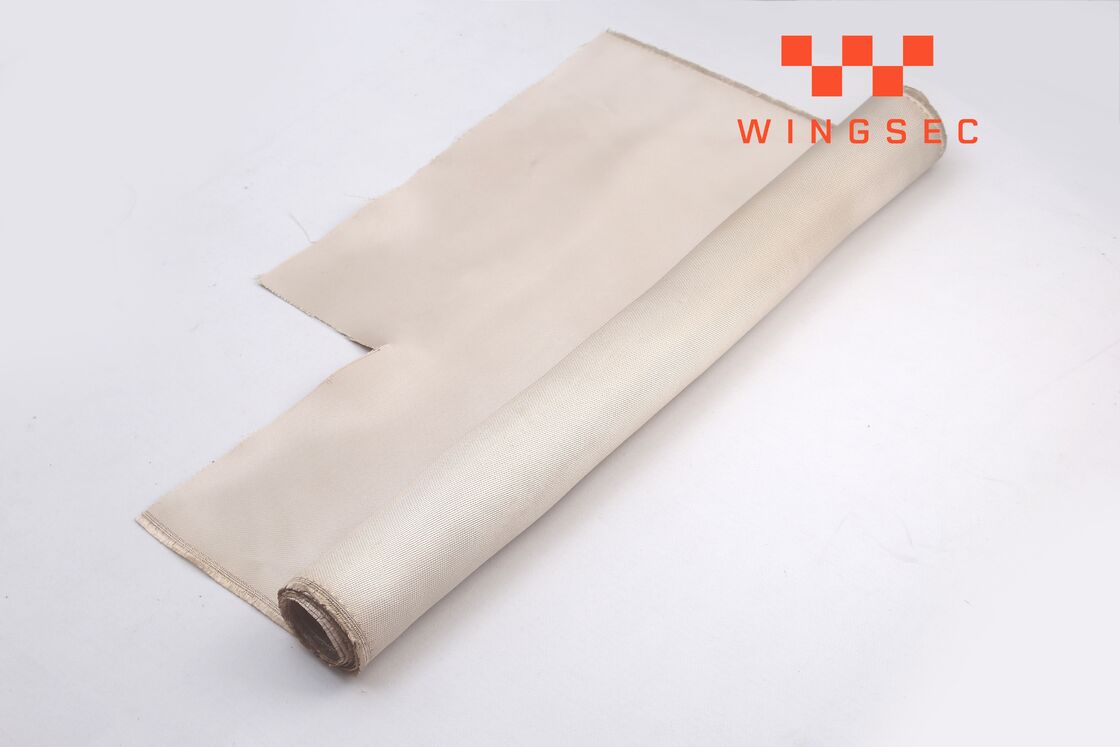

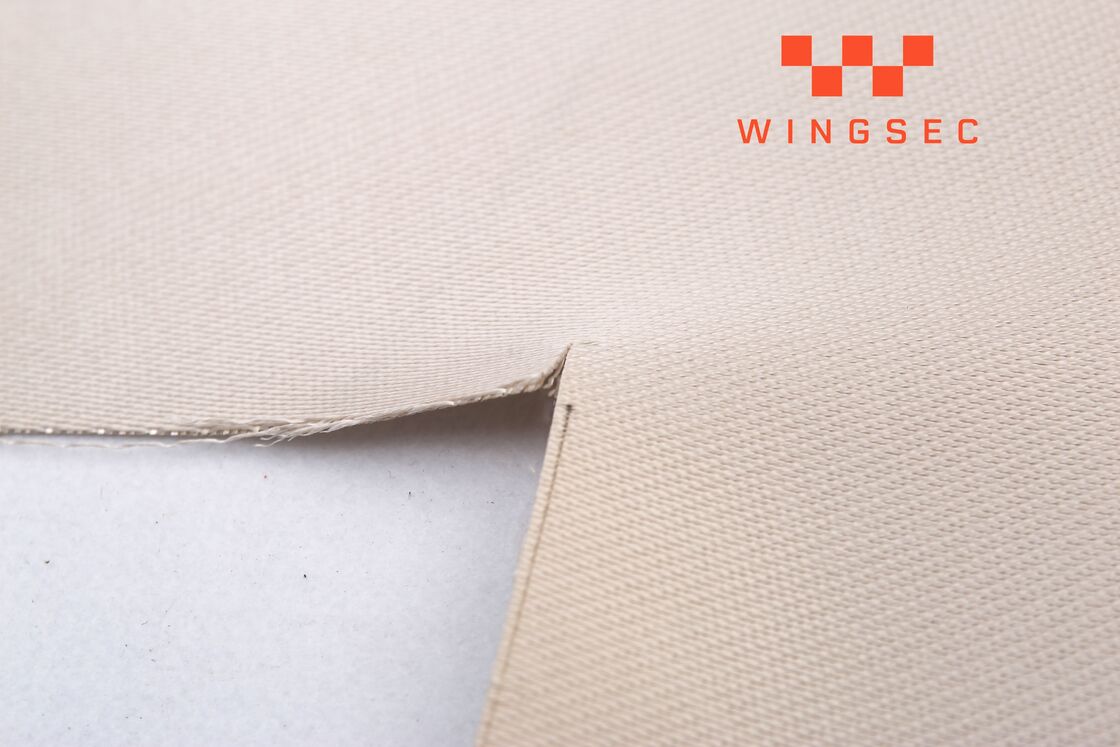

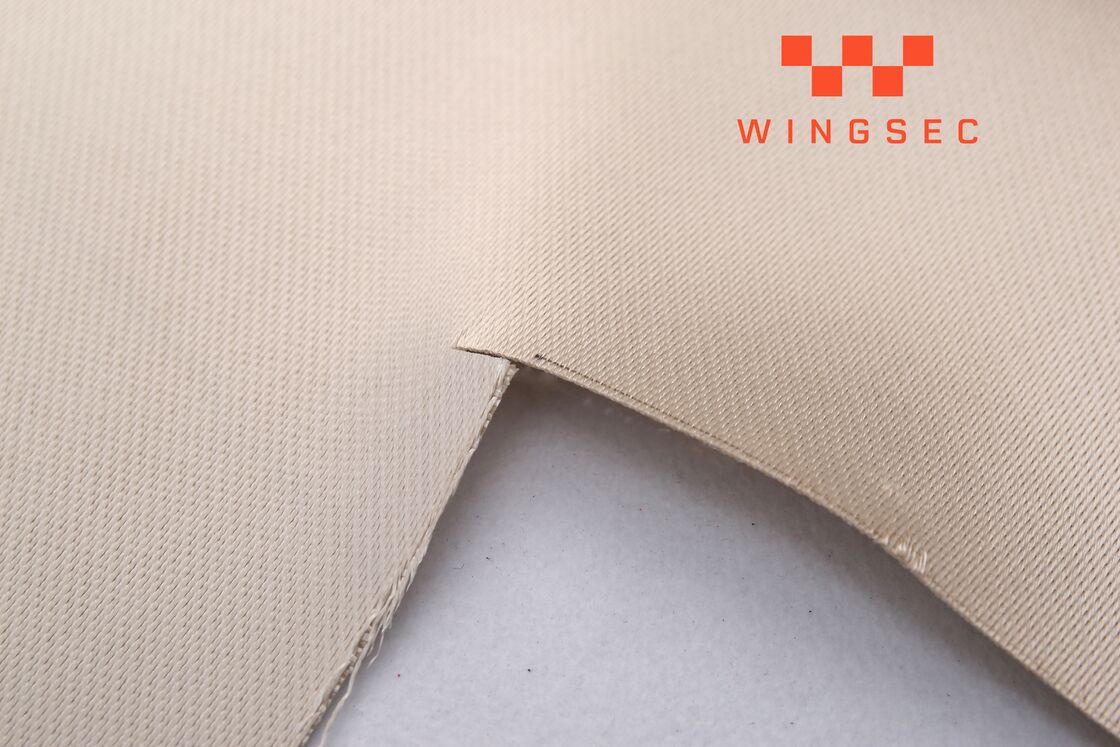

We are dedicated to delivering high-purity, premium-quality products. Our high-silica fiberglass cloth is expertly woven from 96% amorphous silica fibers, creating a distinctive silica texture that provides outstanding abrasion resistance and exceptional strength. The result is a high-strength woven silica cloth engineered to safeguard equipment and personnel in extreme temperatures and demanding environments.
