Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
Pu Coated Fiberglass Cloth
video
video

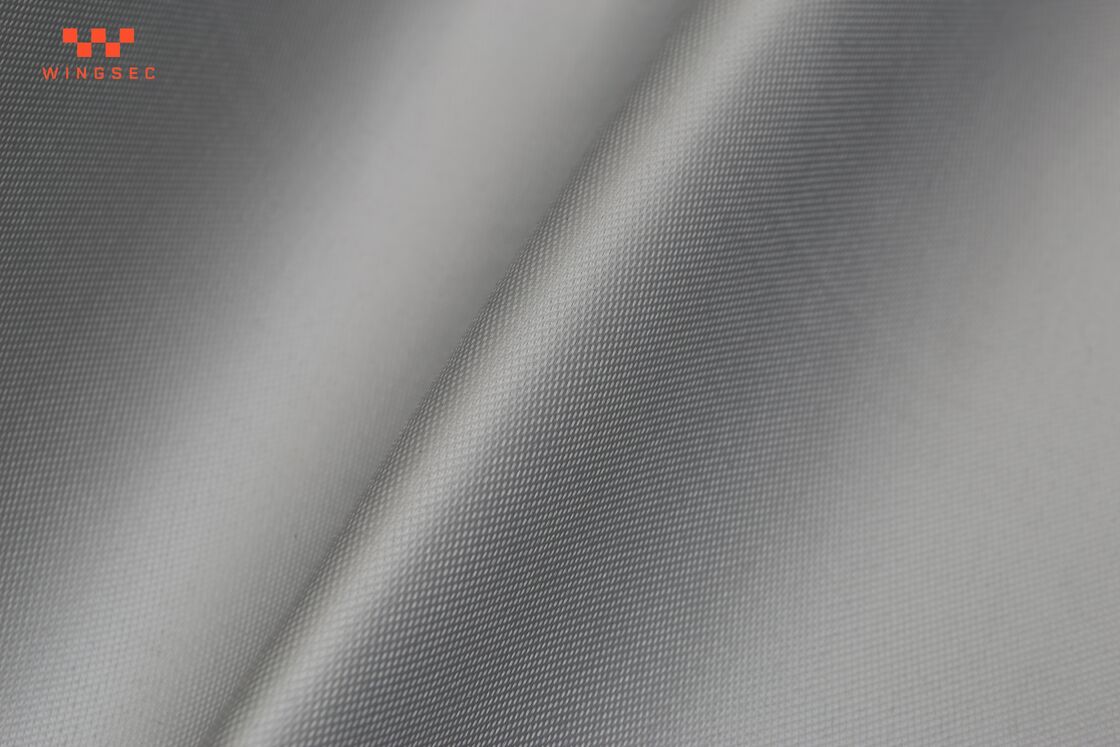

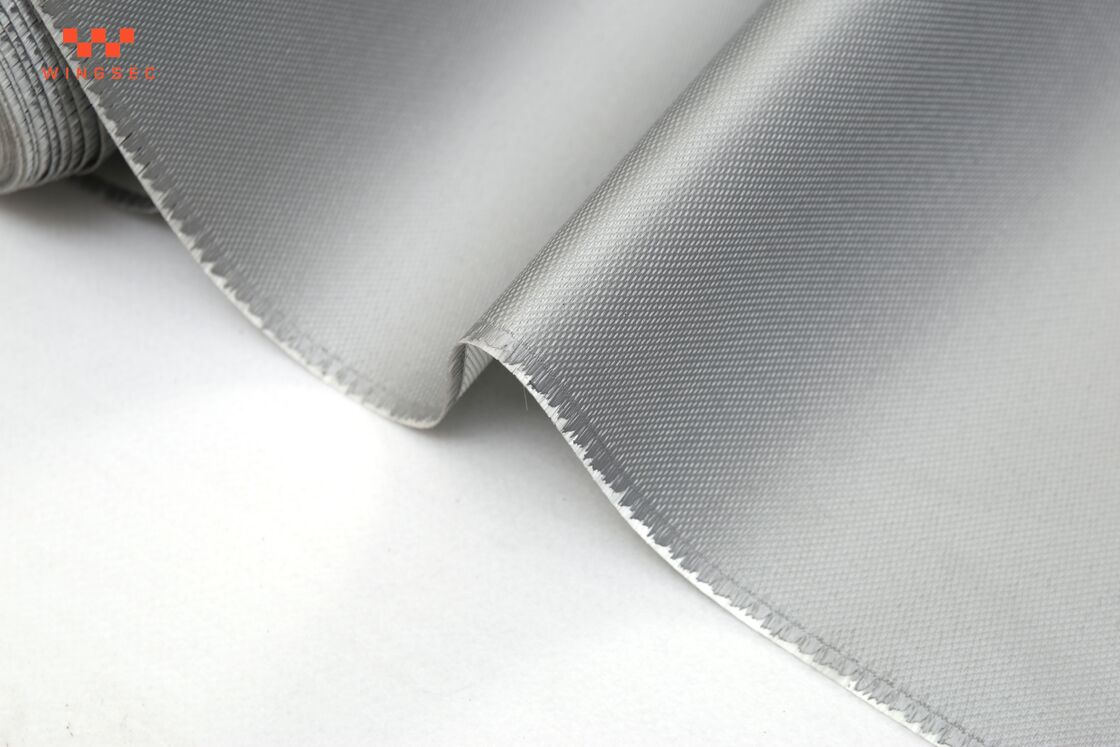

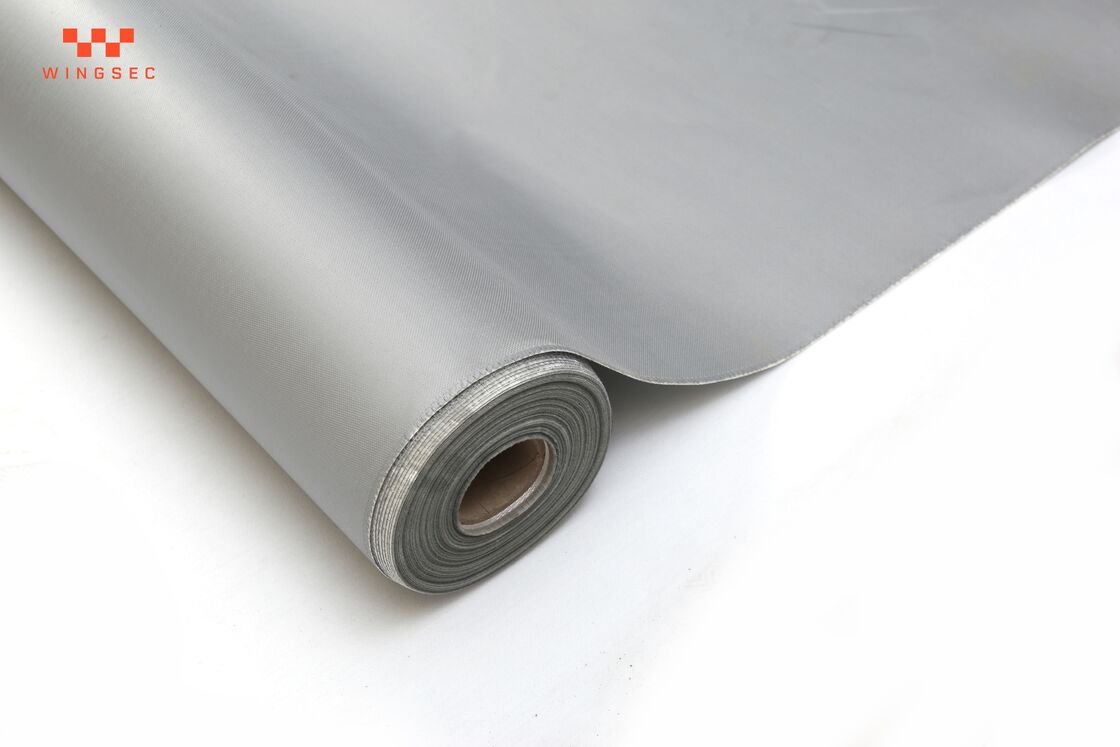

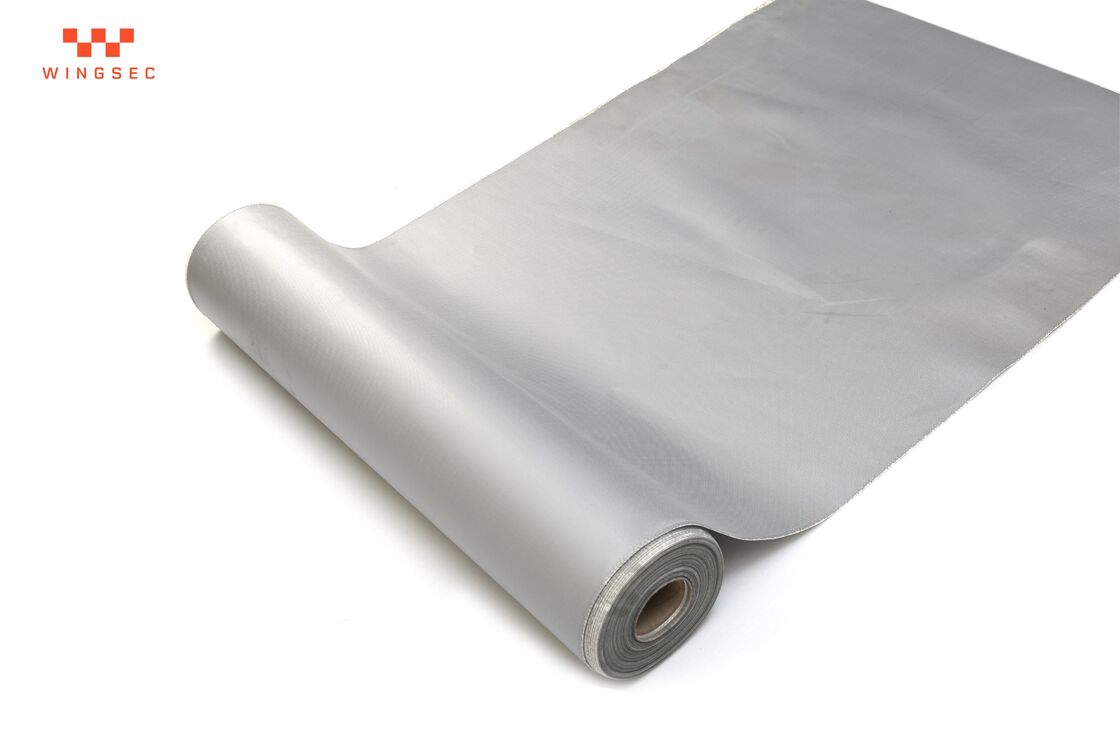

460g/M² 0.41mm PU-Coated Fiberglass Fabric With Up To 1800°C Heat Resistance For Fireproof Use And Industrial Protection.
Polyurethane Coated Fabric Introduction
Wingsec polyurethane (PU) coated fiberglass fabric is made from high-strength E-glass filament yarn in a 3732 twill weave base cloth. It is coated on both sides with a specially formulated PU layer, providing excellent performance in fire resistance, abrasion resistance, chemical resistance, oil resistance, and splash protection.
The total weight is 460gsm, with a base fabric weight of 425gsm and a thickness of 0.4mm, plus 30gsm PU coating on each side. This material can withstand instantaneous temperatures up to 1100°C, making it ideal for welding splash protection blankets, curtains, and industrial heat shielding applications.
Technique Data Sheets
| PU Coated Fiberglass Fabric – Technical Data Sheet | ||
| Category | Parameter | Specification |
| General | Product Name | Polyurethane (PU) Coated Fiberglass Fabric |
| Base Fabric | C or E-glass Fiberglass Cloth | |
| Weave Type | Plain / Twill (1/3 Twill Optional)/Satin | |
| Color | Grey / Black / White (Customizable) | |
| Physical Properties | Areal Weight | 200 – 2000 g/m² |
| PU Coating Weight | 20 – 150 g/m² | |
| Thickness | 0.20 – 2.0 mm | |
| Roll Width | 1000 – 2000 mm | |
| Roll Length | 50 m / 100 m | |
| Yarn Details | Yarn Type | C or E-glass |
| Warp Yarn | 68 – 136 Tex | |
| Weft Yarn | 68 – 136 Tex | |
| Warp Density | 12 – 20 ends/cm | |
| Weft Density | 8 – 15 ends/cm | |
| Mechanical Properties | Tensile Strength (Warp) | ≥ 500 – 1000 N/cm |
| Tensile Strength (Weft) | ≥ 400 – 800 N/cm | |
| Thermal Performance | Base Fabric Temp. | Up to 550°C |
| PU Coating Temp. | Up to 180 – 260°C | |
| Fire Performance | Fire Resistance | Flame Retardant |
| After-Flame Time | ≤ 2 seconds | |
| Features | Performance | Fireproof, Heat Insulation, Oil & Solvent Resistant, Abrasion Resistant |
| Applications | Usage | Welding Blankets, Fire Curtains, Pipeline Protection, Thermal Insulation Covers |
Much More Related Products
| Premier Quality | Thickness (mm) | Weight (g/m2) | Weaving |
| WS3732-PU1 | 0.4mm | 455 | Twill |
| WS3732-PU2 | 0.45mm | 470 | Twill |
| WS666-PU1 | 0.6mm | 660 | 8 H Satin |
| WS666-PU2 | 0.7mm | 700 | 8 H Satin |
| WS3784-PU1 | 0.8mm | 870 | 8 H Satin |
| WS3784-PU2 | 0.9mm | 900 | 8 H Satin |
| WSM30-PU1 | 1.5mm | 1080 | Plain |
| WSM30-PU2 | 1.5mm | 1120 | Plain |
| WS666SC-PU1 | 0.7mm | 670 | Satin |
| WS666SC-PU2 | 0.7mm | 700 | Satin |
Polyurethane Coating Cloth Features
Excellent certified fire resistance.
End users can choose the favority face.
Easy to be applied, sewn and fabricated.
Excellent abrasion resistance property.
Excellent tensile strength.
Nominal Thickness, unit weight, pattern, all can be customized base on your use method.
Application
Fire curtain
Welding blanket
Compensator
Removable thermal couples
Heat insulation mat
Flexible duct
Fireproof Bag Welding Blanket
Fireproof Insulation Jacket Fire & Smoke Curtain
Advantages of Fiberglass Cloth
Fiberglass fabric remains the most commonly used reinforcement material in the composites industry. Fiberglass is the lowest-cost and easiest to process of all reinforcement materials. Furthermore, when combined with resin, fiberglass fabric offers strength, light weight, and excellent appearance.
When selecting industrial fiberglass fabric, many specific parameters need to be considered. These parameters can be categorized into four basic variables: yarn weight, warp count, weave pattern, and fabric surface treatment.
The wide variation in fiberglass yarn weight and warp count provides the basis for fabric design. Together, yarn weight and warp count determine the fabric's strength, weight, and thickness.
Fiberglass fabric is manufactured using basic weave types. There are five basic weave patterns for industrial fiberglass fabric: plain, twill, satin, leno, and basket weave.
The fabric structure is determined by the number of warp and weft yarns per inch of fabric and the weave pattern.
The surface treatment of fiberglass fabric is important. Most applications require the use of a coating material with the fiberglass fabric. For compatibility with resin coating, organic coating or post-treatment, perform surface treatment.
RFQs
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Why do you choose us?
A: Wingsec management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q: What is your delivery time?
A: Generally we will within 30 days of delivery to you
4. Q: Can you produce customized goods?
A: Surely, we can be customized according to your demanding.
5. Q: What kinds of payment you accept?
A: We accept T/T, L/C, D/P.
6. Q: Do you have other production?
A: Certainly, we still have Rewettable fiberglass fabric, EPDM, Fluoride, Silicone, Polyurethane, Vermiculite coated fiberglass fabric, & Aluminized aramid fabric. We are looking forward to your enquiry.
