Place of Origin:
China
Brand Name:
Wingsec
Certification:
BS474
Model Number:
WS HT800
| HT800(Golden) | ||||
| 1 | Structure | Satin | ||
| 2 | Model of raw yarn (tex) | Warp | ET9 33 4X2 | ETG 150 4/2 |
| weft | ET9 33 4X2 | ETG 150 4/2 | ||
| 3 | Width | 101.6±2cm | 40±0.75 inch | |
| 4 | Thickness | 0.8±0.08mm | 0.03±0.003 inch | |
| 5 | Type of covering | Heat treatment | ||
| 6 | Weight | 830±30g/m2 | 25 OZ/YD2 | |
| 7 | Density | Warp | 18±1.8 per cm | 47.5±4.5 per inch |
| Weft | 13±1.3 per cm | 33±3.3per inch | ||
| 8 | Tensile strength (min) | Warp | 8000N/5cm | 888 Ibs/inch |
| Weft | 6000N/5cm | 666 Ibs/inch | ||
| 9 | Oil content | <0.5% | ||
| 10 | Refractoriness | 550℃ | ||
| Appearance | Thickness | Base fabric | Width | Length | Weave |
| (mm) | (g/m2) | (m) | (m) | ||
| Filament | 0.4 | 430 | 1.0-1.5 | 50 | Twill |
| Filament | 1 | 840 | 1.0-1.5 | 50 | Satin |
| Filament | 1.7 | 1700 | 1.0-1.5 | 50 | Satin |
| Texturized | 0.8 | 650 | 1.0-1.5 | 50 | Plan |
| Texturized | 1 | 800 | 1.0-1.5 | 50 | Plain |
| Texturized | 1.5 | 1000 | 1.0-1.5 | 50 | Plain |
| Texturized | 2 | 1250 | 1.0-1.5 | 50 | Plain |
| Texturized | 3 | 1800 | 1.0-1.5 | 50 | Plain |

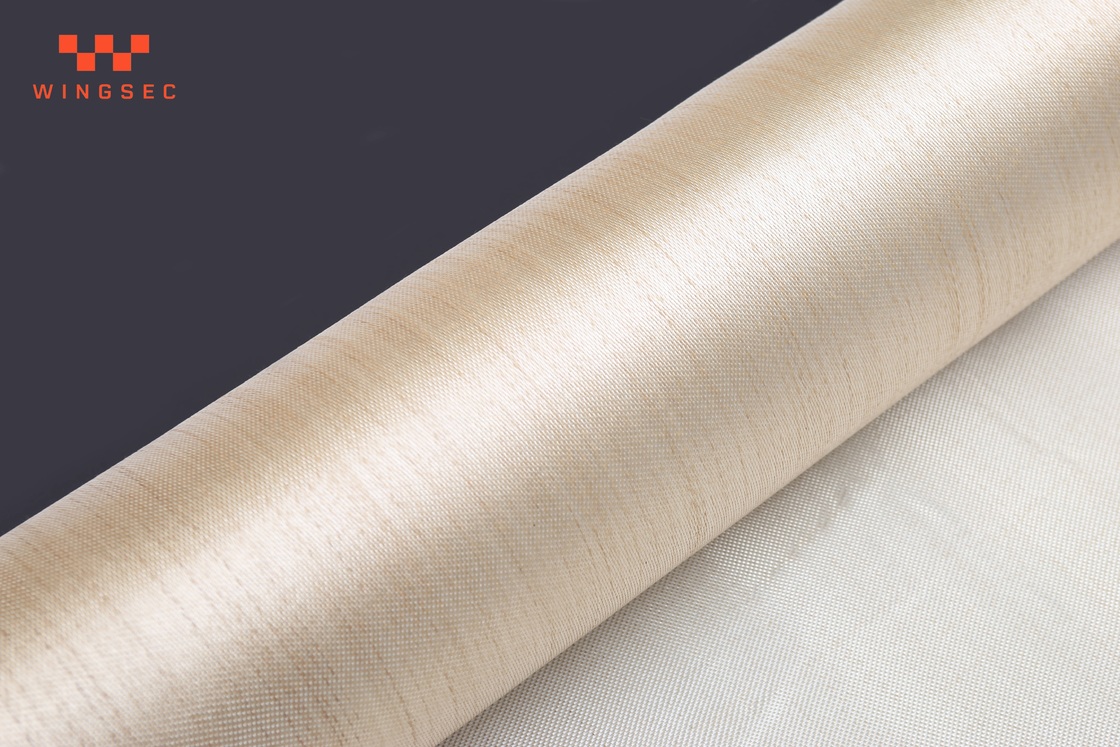

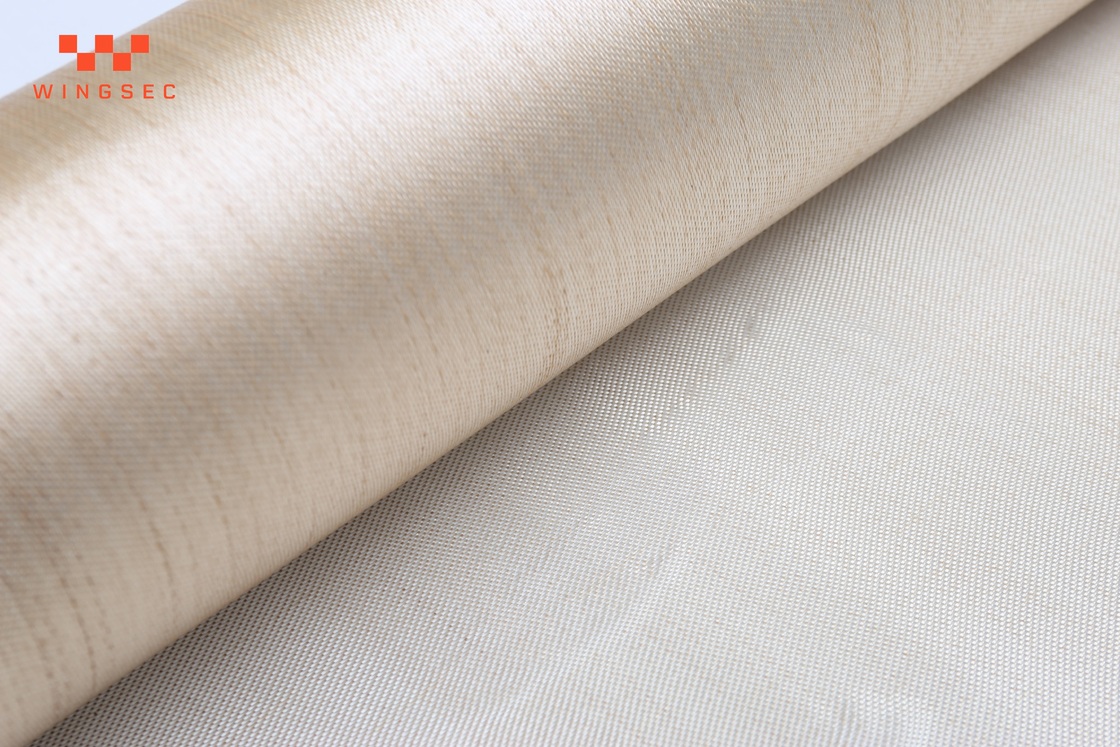

HT800 fiberglass cloth has a temperature resistance capability of up to 550°C and can sustain even higher temperature sparks intermittently.
Main Applications
Welding Protection
Welding blankets, curtains, and screens to resist sparks, molten metal splashes, and high radiant heat.
Provides a smokeless barrier in confined spaces, ensuring worker comfort and clean air quality.
FAQs
Q: Why choose us?
A: Wingsec's management and staff have over 20 years of combined experience in the industrial textiles industry. Leveraging advanced equipment, Wingsec is committed to providing customers with high-quality, cost-effective products.
Q: What is your delivery time?
A: We typically ship within 10 days of order, but the specific delivery time depends on the quantity you require.
Q: Where is your shipping port?
A: Typically, Shanghai Port, but custom orders are also available.
Q: Can you produce custom products?
A: Of course, we can customize according to your requirements.
Q: What payment methods do you accept?
A: We accept T/T, D/A, L/C, and D/P.
Q: Do you have other production methods?
A: Of course. We offer silicone-coated fiberglass cloth, polyurethane-coated fiberglass cloth, stainless steel wire-reinforced alkali-free fiberglass cloth, vermiculite-coated fiberglass cloth, graphite-treated fiberglass cloth, calcium silicate-coated fiberglass cloth, EPDM-coated fiberglass cloth, fluororubber-coated fiberglass cloth, aluminum foil-coated fiberglass cloth, woven lock/finished fiberglass cloth, fire blankets, welding blankets, and customized solutions for your insulation needs. We look forward to hearing from you.
