Place of Origin:
China
Brand Name:
Wingsec
Certification:
Heat Resistance Test Report
Model Number:
WSBWS600

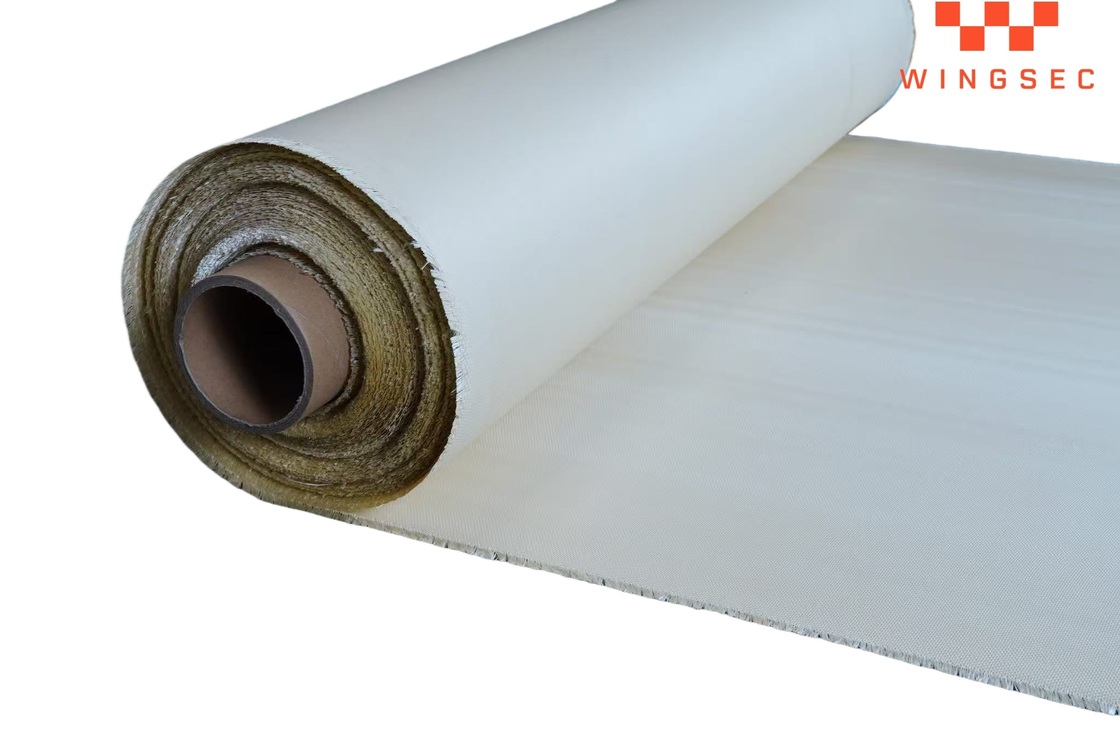

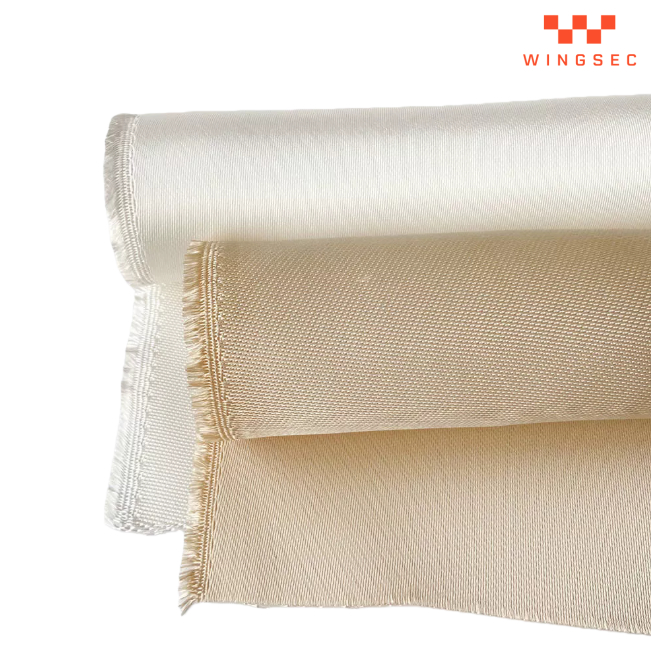

With the ability to withstand continuous temperature of 900-degree Celsius and most significantly, the instantaneous temperature of 1400-degree Celsius, the silica cloth is highly heat resistant. It has been made to be suitable for rocket and missile manufacturing in the aerospace industries.
The yarn and filtration mesh pieces that are treated with the use of high resistance coating.
They are perfectly suitable for heat preservation materials as well as fire fighting equipments such as fireproof garments. They are excellent in dust collection and filtration equipments.
| Style | Thickness(mm) | Width (cm) | Weight (gsm) | SiO₂ % | LOI |
Weave |
| WSBWS300 | 0.3土0.05 | 92/100 | 300土30 | ≥96 | ≤3 | Plain |
| WSBWS300B | 0.3土0.03 | 92/100 | 300土30 | ≥96 | ≤3 | 1/2 Twill |
| WSBWS400B | 0.4土0.04 | 92/100 | 440土40 | ≥96 | ≤3 | 2/2 Twill |
| WSBSW400C | 0.4土0.04 | 92/100/152 | 440土40 | ≥96 | ≤3 | 2/2 Twill |
| WSBWT400 | 0.4土0.04 | 92/100/152 | 400土40 | ≥96 | ≤3 | Plain |
| WSBWS650 | 0.65土0.1 | 92/100/152 | 650土40 | ≥96 | ≤3 | 3/8 Satin |
| WSBWS1100 | 1.0土0.1 | 92/100/152 | 1100土60 | ≥96 | ≤3 | 5/12 Satin |
| WSBWS1150 | 1.15土0.15 | 92/100/152 | 1150土60 | ≥96 | ≤3 | 5/12 Satin |
| WSBWS1250 | 1.25土007 | 92/100/152 | 1250土60 | ≥96 | ≤3 | 5/12 Satin |
Main Applications
Heavy duty welding protecion and fire curtains
Hot face material for removable heat insulation jacket
Heat insulation mattress
FAQs
Q: Why choose us?
A: Wingsec's management and staff have over 20 years of combined experience in the industrial textiles industry. Leveraging advanced equipment, Wingsec is committed to providing customers with high-quality, cost-effective products.
Q: What is your delivery time?
A: We typically ship within 10 days of order, but the specific delivery time depends on the quantity you require.
Q: Where is your shipping port?
A: Typically, Shanghai Port, but custom orders are also available.
Q: Can you produce custom products?
A: Of course, we can customize according to your requirements.
Q: What payment methods do you accept?
A: We accept T/T, D/A, L/C, and D/P.
Q: Do you have other production methods?
A: Of course. We offer silicone-coated fiberglass cloth, polyurethane-coated fiberglass cloth, stainless steel wire-reinforced alkali-free fiberglass cloth, vermiculite-coated fiberglass cloth, graphite-treated fiberglass cloth, calcium silicate-coated fiberglass cloth, EPDM-coated fiberglass cloth, fluororubber-coated fiberglass cloth, aluminum foil-coated fiberglass cloth, woven lock/finished fiberglass cloth, fire blankets, welding blankets, and customized solutions for your insulation needs. We look forward to hearing from you.
