425gsm PU Coated Fiberglass Fabric Anti Chemical Splash Protection

Anti-chemical Splash Protection PU Coated Fiberglass Fabric with 425gsm Mass per Unit and 0.4mm Thickness

Polyurethane Coated Fabric Introduction

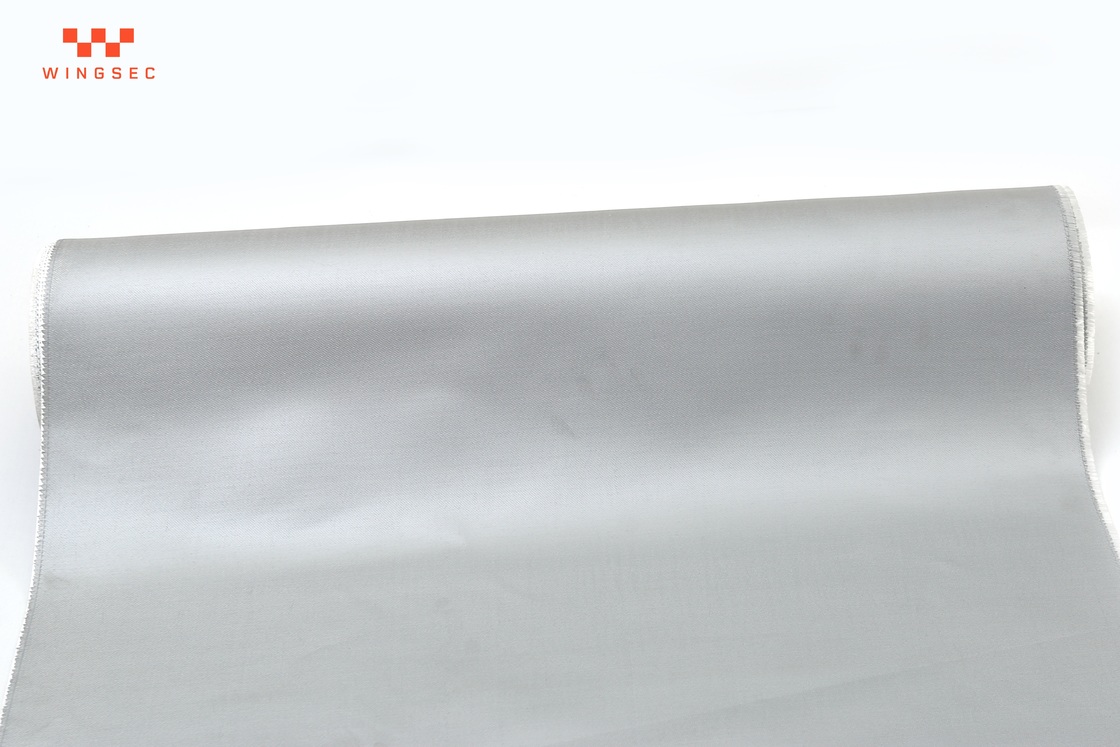

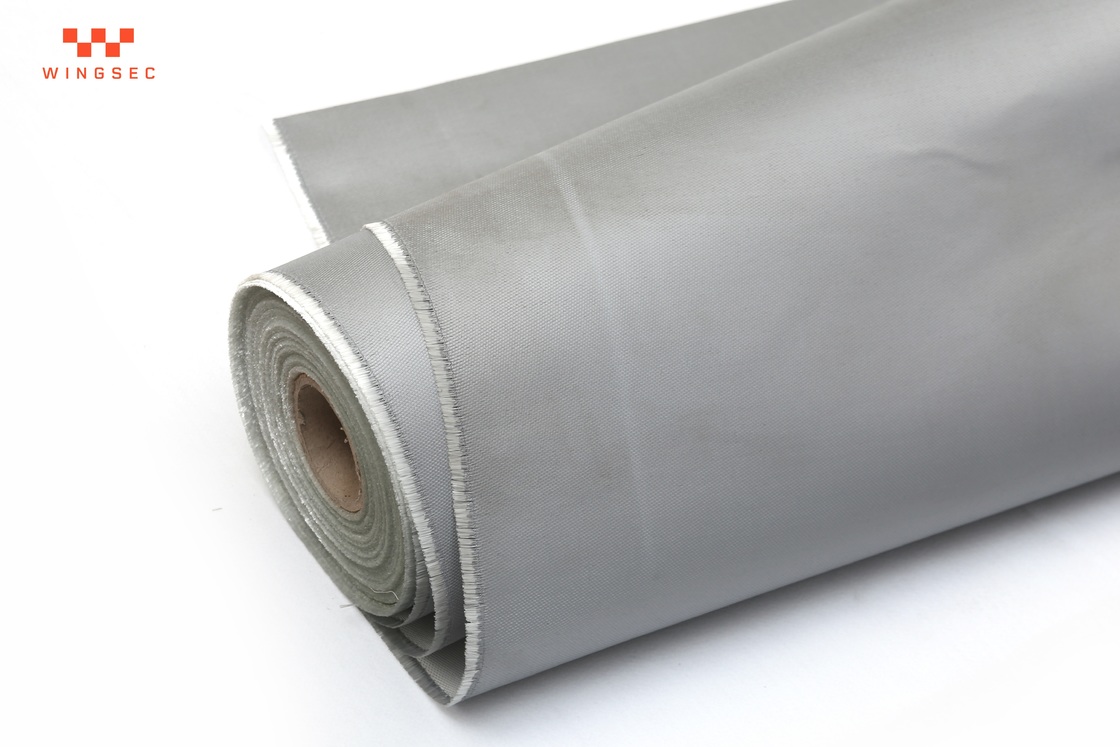

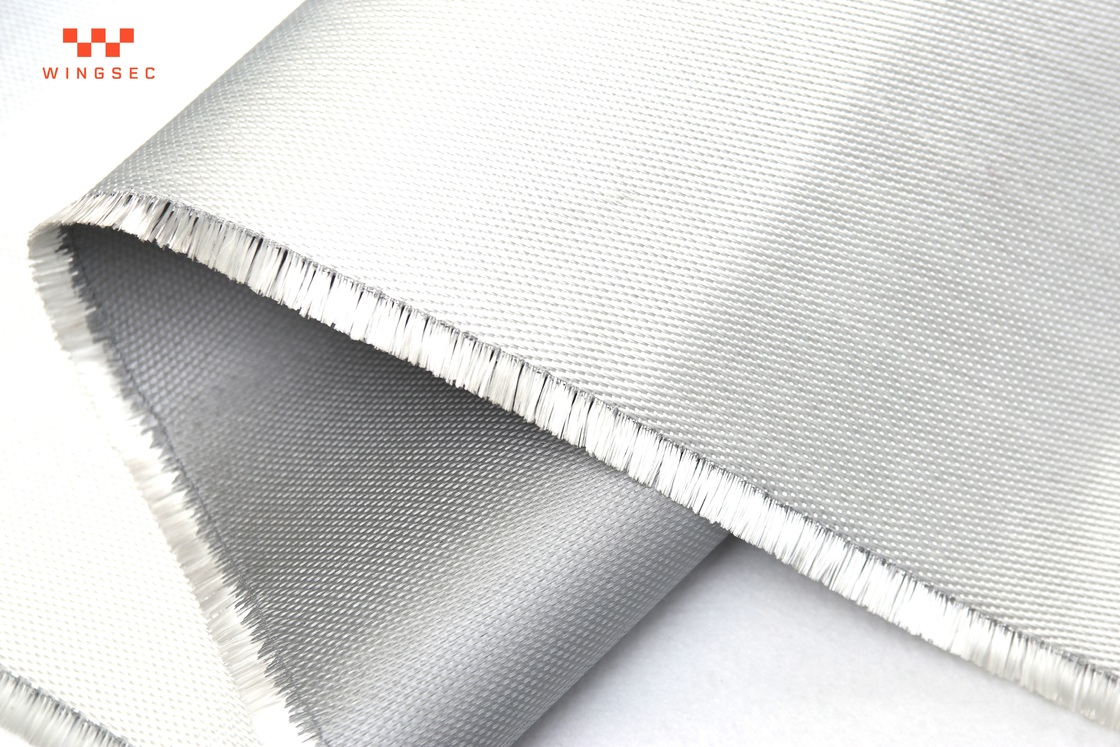

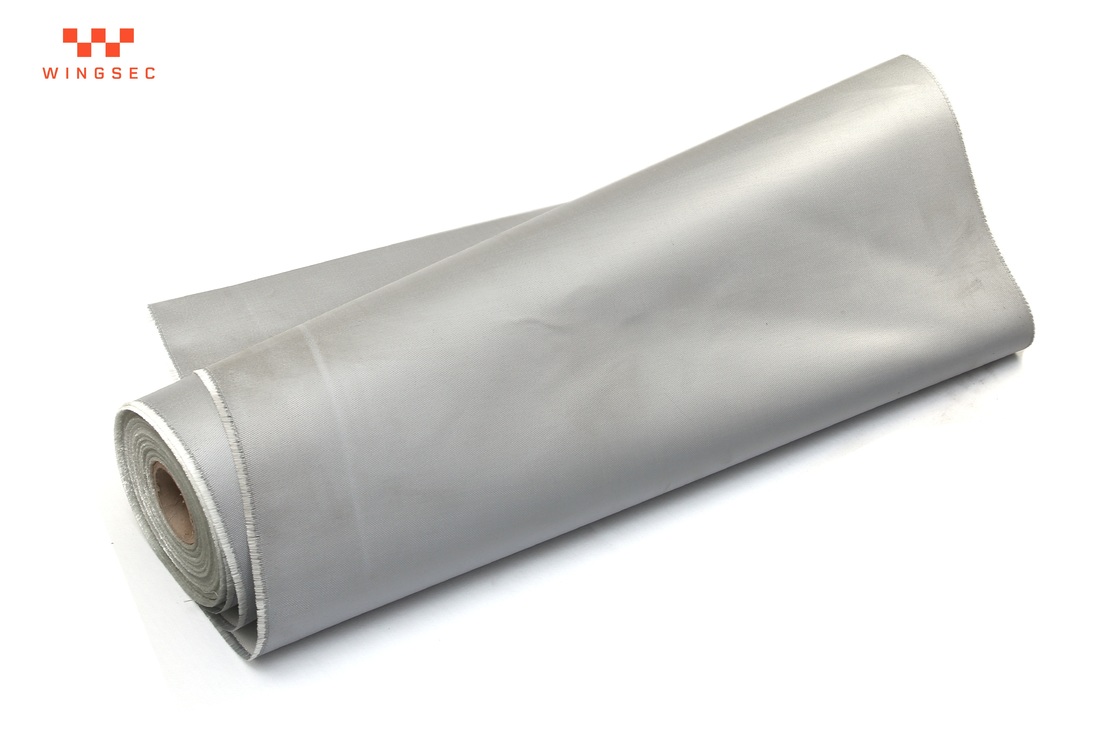

Wingsec Polyurethane (Pu) Coating Fiberglass Fabric is woven by high strength E-glass Fiber Glass filament yarn. Then it is coated with a specially polyurethane coating on two sides. It also has excellent features of fire-proof, abrasion resistant, anti-chemical, oil resistant and splash protection. The toal weight of this PU coated fabric is 460gsm. Base cloth is E-glass 3732 twill weave fiberglass fabric with 425gsm mass per unit and 0.4mm thickness. Coating on one side 30gsm white PU each sides. PU coated glass fiber cloth are capable of resisting instantaneous temperature up to 1100 degress celsius. So it is very suitable for welding splash protection blanket and curtain

Technique Data Sheets

Much More Related Products

Polyurethane Coating Cloth Features

• Good certified fire resistance.
• End users can choose the favority face.
• Easy to be applied, sewn and fabricated.
• Well abrasion resistance property.
• Well tensile strength.
• Nominal Thickness, unit weight, pattern, all can be customized base on your use method.

Application

Welding Protection & Heat Shields
PU coated fiberglass cloth is commonly used for welding curtains, blankets, and heat shields. The coating provides excellent resistance to molten metal splashes, sparks, and high temperatures up to around 180–200°C continuously (and short bursts up to 260°C).

                               Fireproof Bag                                                                      Welding Blanket

                    Fireproof Insulation Jacket                                                        Fire & Smoke Curtain

Advantages of Fiberglass Cloth
Fiberglass fabric remains the most commonly used reinforcement material in the composites industry. Fiberglass is the lowest-cost and easiest to process of all reinforcement materials. Furthermore, when combined with resin, fiberglass fabric offers strength, light weight, and excellent appearance.

When selecting industrial fiberglass fabric, many specific parameters need to be considered. These parameters can be categorized into four basic variables: yarn weight, warp count, weave pattern, and fabric surface treatment.

The wide variation in fiberglass yarn weight and warp count provides the basis for fabric design. Together, yarn weight and warp count determine the fabric's strength, weight, and thickness.

Fiberglass fabric is manufactured using basic weave types. There are five basic weave patterns for industrial fiberglass fabric: plain, twill, satin, leno, and basket weave.

The fabric structure is determined by the number of warp and weft yarns per inch of fabric and the weave pattern.

The surface treatment of fiberglass fabric is important. Most applications require the use of a coating material with the fiberglass fabric. For compatibility with resin coating, organic coating or post-treatment, perform surface treatment.

RFQs

1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Why do you choose us?
A: Wingsec management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q: What is your delivery time?
A: Generally we will within 30 days of delivery to you
4. Q: Can you produce customized goods?
A: Surely, we can be customized according to your demanding.
5. Q: What kinds of payment you accept?
A: We accept T/T, L/C, D/P.
6. Q: Do you have other production?
A:  Certainly, we still have Rewettable fiberglass fabric, EPDM, Fluoride, Silicone, Polyurethane, Vermiculite coated fiberglass fabric, & Aluminized aramid fabric. We are looking forward to your enquiry.
