Place of Origin:
Hebei, China
Brand Name:
Wingsec
Certification:
ISO 9001:2015, SGS, REACH, RoHS
Model Number:
HT3788

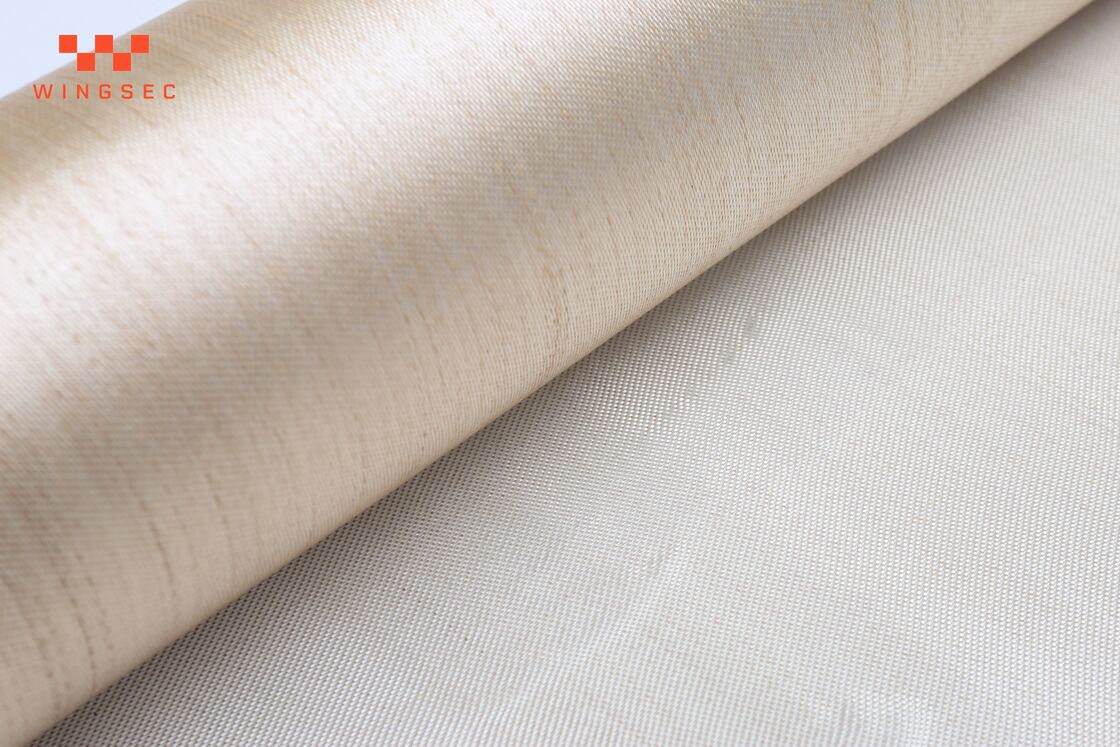

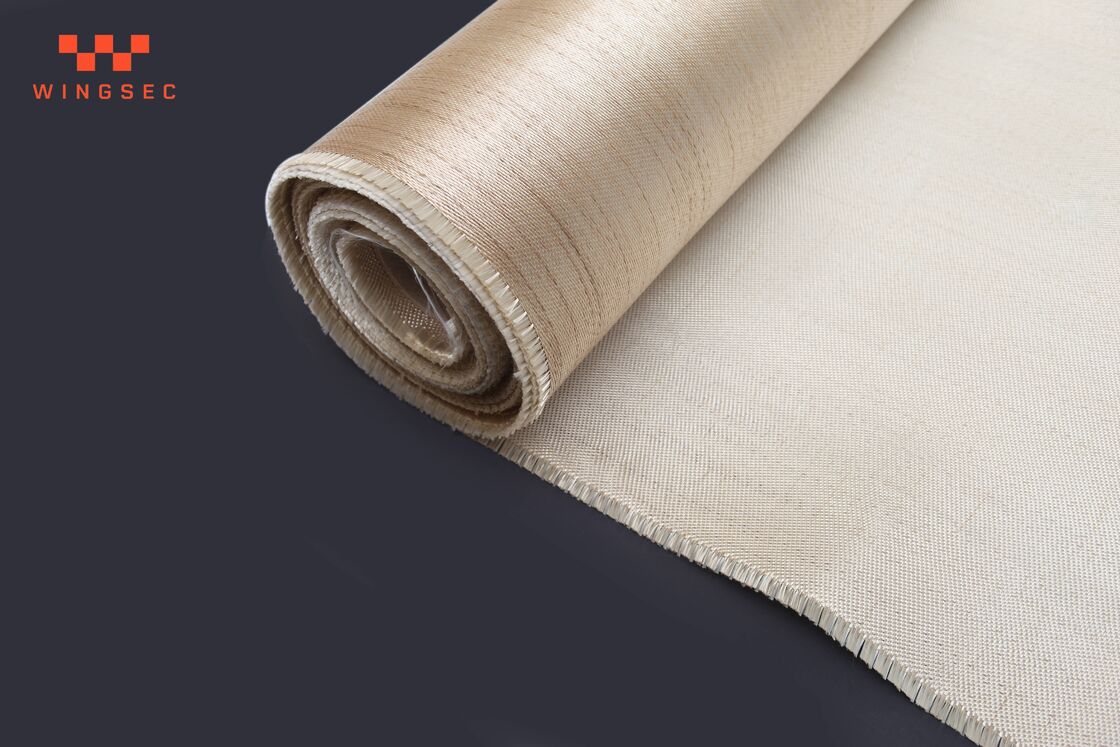

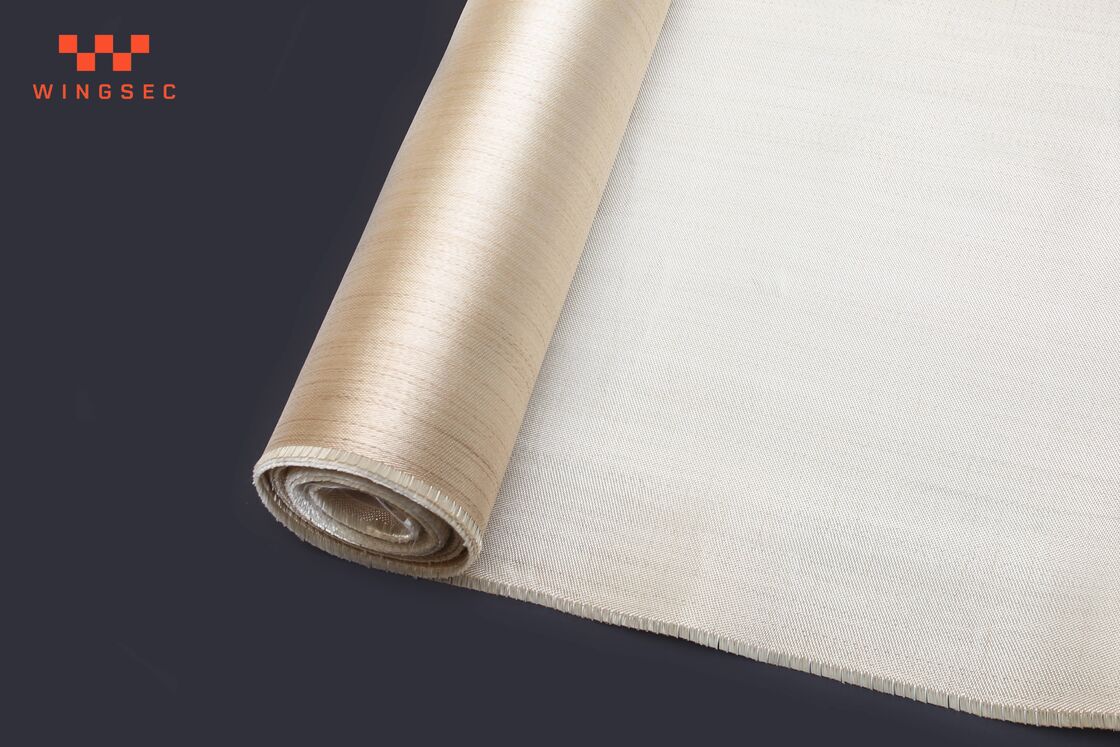

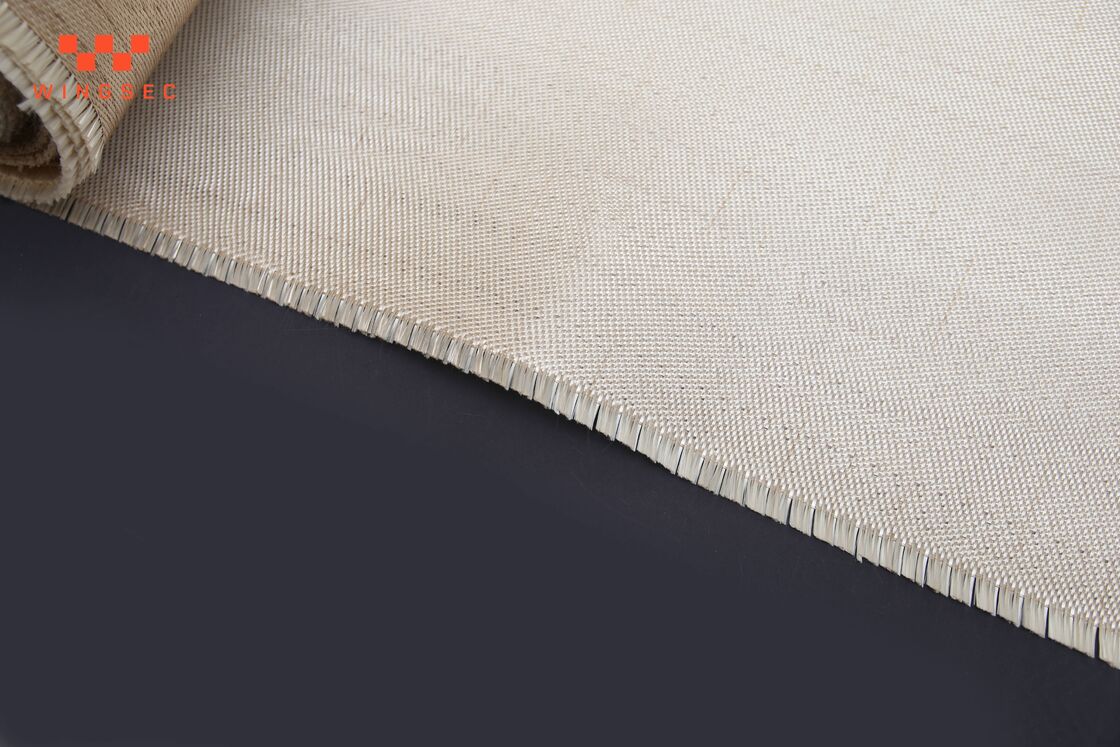

The HT3788 1.65mm heat-treated fiberglass fire barrier welding curtain roll is specifically designed for welding screen and fire barrier applications. Its dense 1.65mm construction provides excellent opacity for arc flash protection while effectively blocking sparks, spatter, and radiant heat. The heat-treated twill weave delivers reliable smoke-free performance at 550°C, making it ideal for creating safe welding zones in busy fabrication shops and industrial facilities.
| Parameter | Specification |
|---|---|
| Material | 100% E-Glass Fiberglass Yarn |
| Weave Type | Twill Weave |
| Thickness | 1.65 ± 0.16 mm |
| Width | 101.65 ± 2 cm (40 inch) |
| Weight | 1650 ± 50 g/m² (42.8 OZ/YD²) |
| Temperature Rating | 550°C (1022°F) |
| Tensile Strength Warp | 9000 N/5cm (1000 lbs/inch) |
| Tensile Strength Weft | 7000 N/5cm (778 lbs/inch) |
| Oil Content | < 0.5% |
| Coating Type | Heat Treatment (Smoke-Free) |
| Color | Golden / Tan |
Related Products
| Cloth Type | Style | Thickness | Weight |
| Woven Fiberglass Fabric | HT3732 | 0.4mm | 430gsm |
| HT800 | 0.8mm | 830gsn | |
| HT3788 | 1.6mm |
1650gsm |
|
| Texturized Fiberglass Fabric | HT2025 | 0.7mm | 580gsm |
| HTM30 | 1.2mm | 1200gsm | |
| Reinforced Fiberglass Fabric | HT 666 Reinforced with Wire | 0.6mm | 650gsm |
we can also produce other Fiberglass Fabrics, such as Write Fiberglass Fabric, PU-coated Fiberglass Fabric, Aluminum Foil GlasFiber, Silicone-coated Fiberglass Fabric, Acrylic-coated Fiberglass Cloth, Dried Fiberglass Fabrics, etc. Do you have an interest? Please contact me at any time.
