Place of Origin:
Hebei, China
Brand Name:
Wingsec
Certification:
ISO 9001:2015, SGS, REACH, RoHS
Model Number:
HT3788

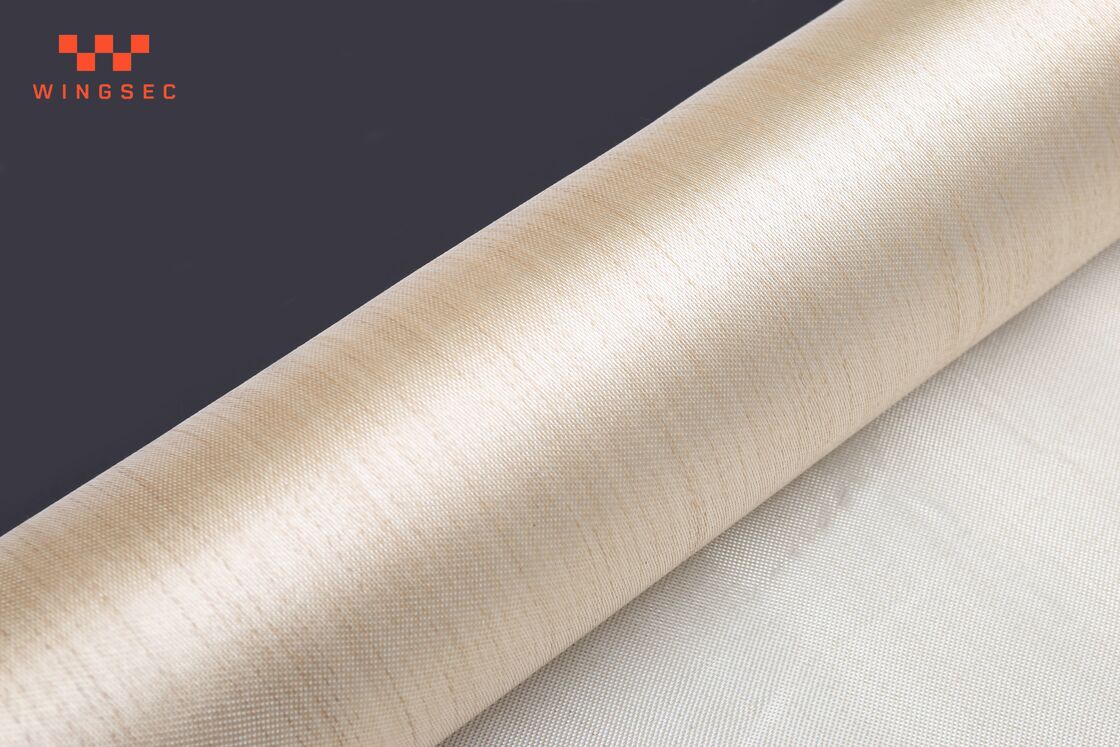

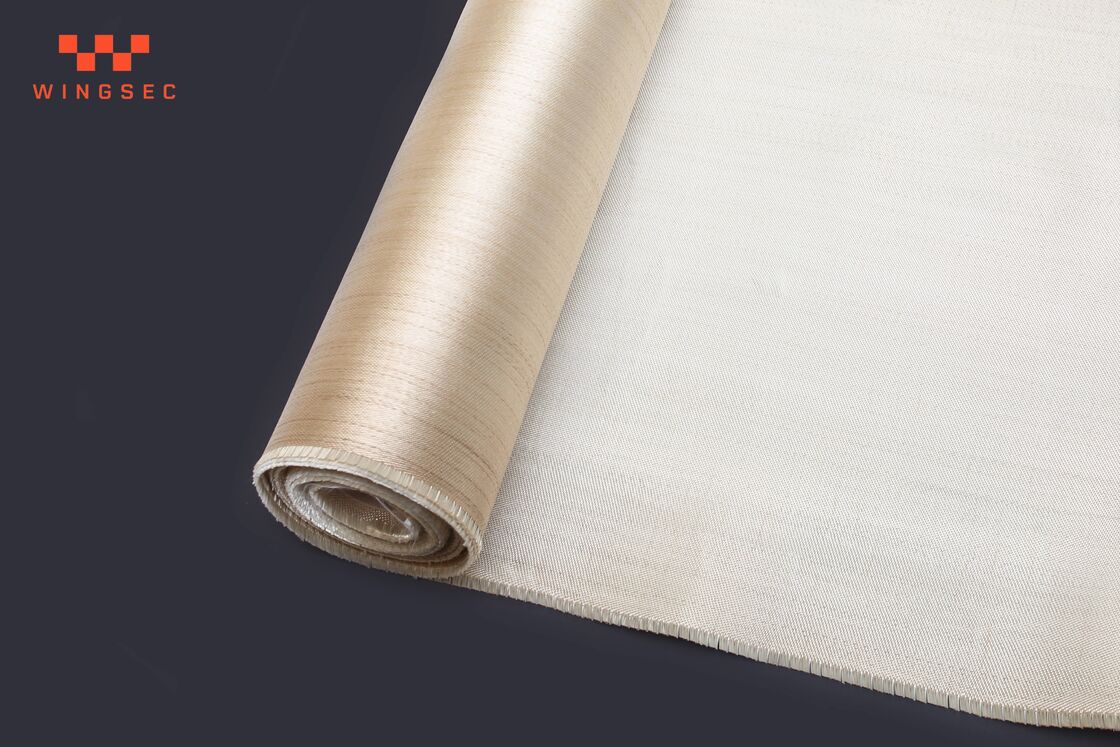

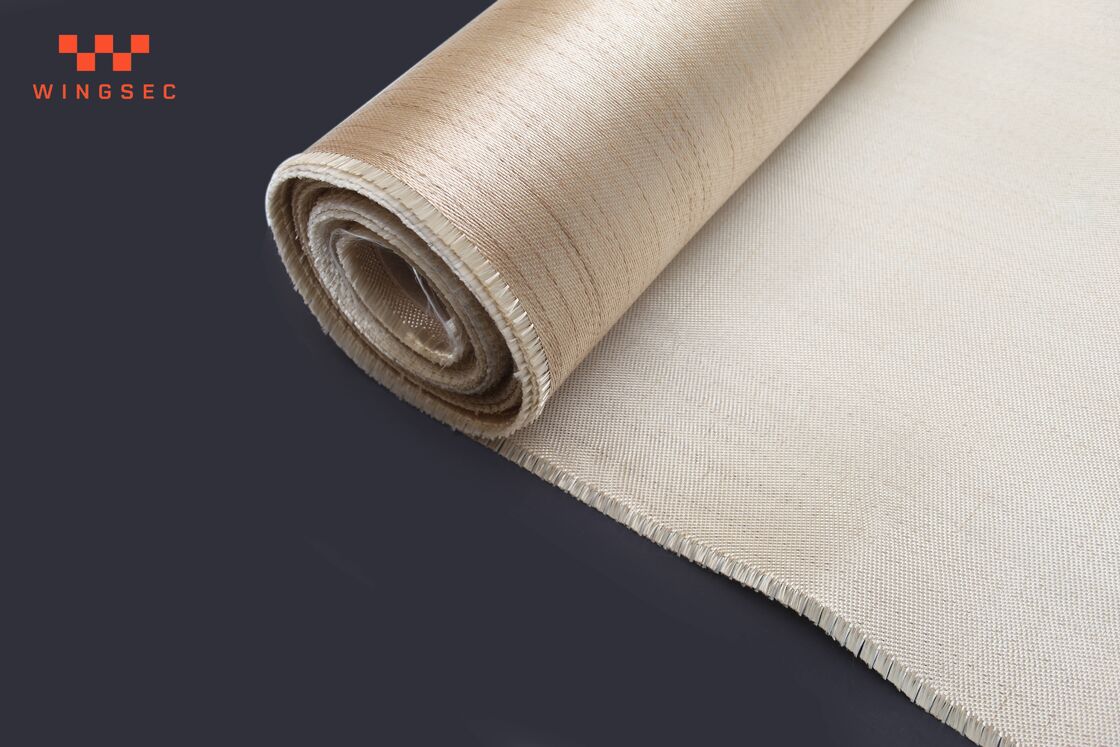

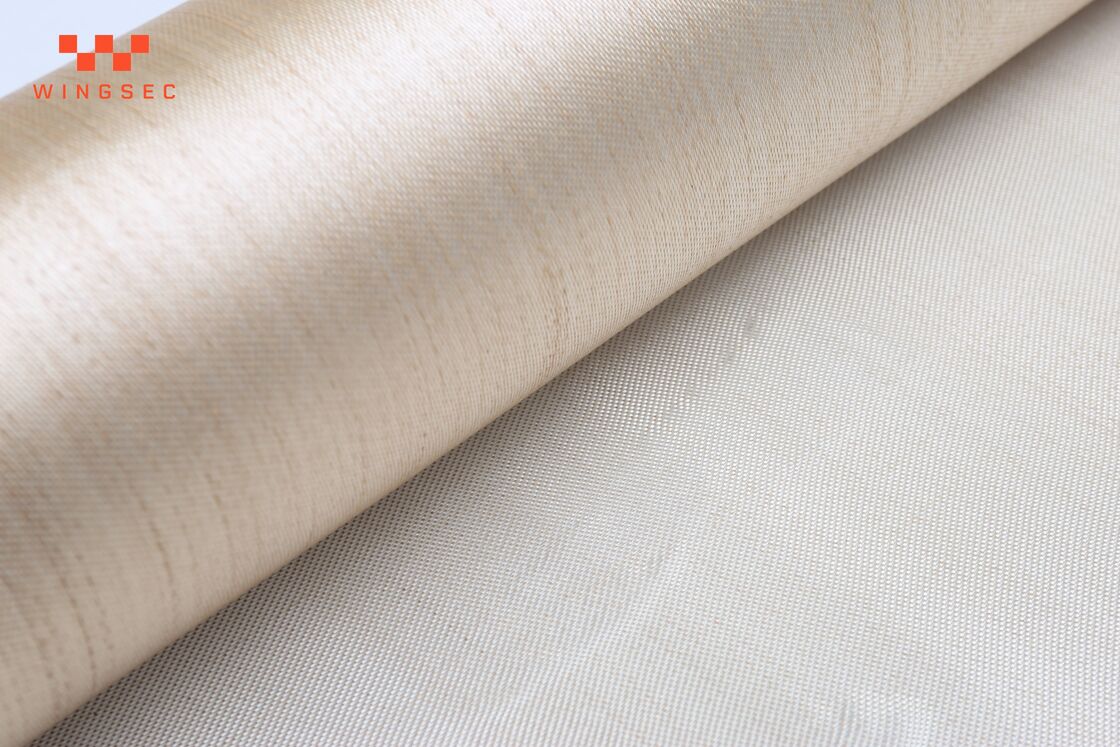

The HT3788 1.65mm satin weave heat-treated fiberglass fabric roll is purpose-built for manufacturing removable insulation pads and jackets. The premium satin weave provides an exceptionally smooth surface finish and superior drapability, making it ideal for fabricators who sew custom-shaped insulation covers for valves, flanges, and industrial equipment. With 10000 N/5cm warp tensile strength and 550°C temperature rating, this fabric delivers long-lasting performance in demanding thermal insulation applications.
| Parameter | Specification |
| Material | 100% E-Glass Fiberglass Yarn |
| Weave Type | Satin Weave |
| Thickness | 1.65 ± 0.16 mm |
| Width | 101.65 ± 2 cm (40 inch) |
| Weight | 1650 ± 50 g/m² (45.7 OZ/YD²) |
| Temperature Rating | 550°C (1022°F) |
| Tensile Strength Warp | 10000 N/5cm (1111 lbs/inch) |
| Tensile Strength Weft | 8000 N/5cm (888 lbs/inch) |
| Oil Content | < 0.5% |
| Coating Type | Heat Treatment (Smoke-Free) |
| Color | Golden / White |
Related Products
| Cloth Type | Style | Thickness | Weight |
| Woven Fiberglass Fabric | HT3732 | 0.4mm | 430gsm |
| HT800 | 0.8mm | 830gsn | |
| HT3788 | 1.6mm |
1650gsm |
|
| Texturized Fiberglass Fabric | HT2025 | 0.7mm | 580gsm |
| HTM30 | 1.2mm | 1200gsm | |
| Reinforced Fiberglass Fabric | HT 666 Reinforced with Wire | 0.6mm | 650gsm |
we can also produce other Fiberglass Fabrics, such as Write Fiberglass Fabric, PU-coated Fiberglass Fabric, Aluminum Foil GlasFiber, Silicone-coated Fiberglass Fabric, Acrylic-coated Fiberglass Cloth, Dried Fiberglass Fabrics, etc. Do you have an interest? Please contact me at any time.
Our Company Services:
1.If you want to know the detailed information, price, shipping information of other products, we can provide you with it.
2. If you accept our prices and services, you can contact us to request samples to check the quality, we can provide free samples, but we do not pay the first shipping
3. You can send your samples or technical parameters to our company, and we will re-order some samples for you according to your requirements within 15 days
4. If you have any questions about the freight forwarder, we can contact your freight forwarder to arrange the delivery and deliver the goods smoothly.
5. We will provide the most favorable prices and services, please contact us immediately
