Place of Origin:
Hebei, China
Brand Name:
Wingsec
Certification:
ISO 9001:2015, SGS, REACH, RoHS
Model Number:
HT3788

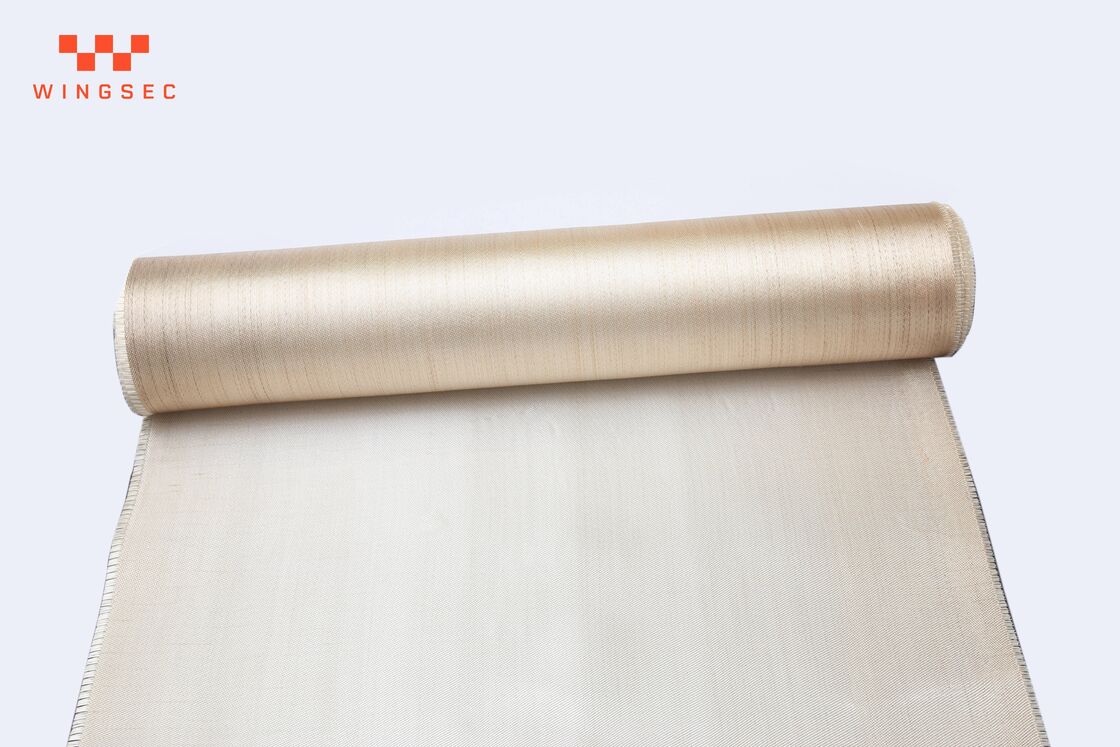

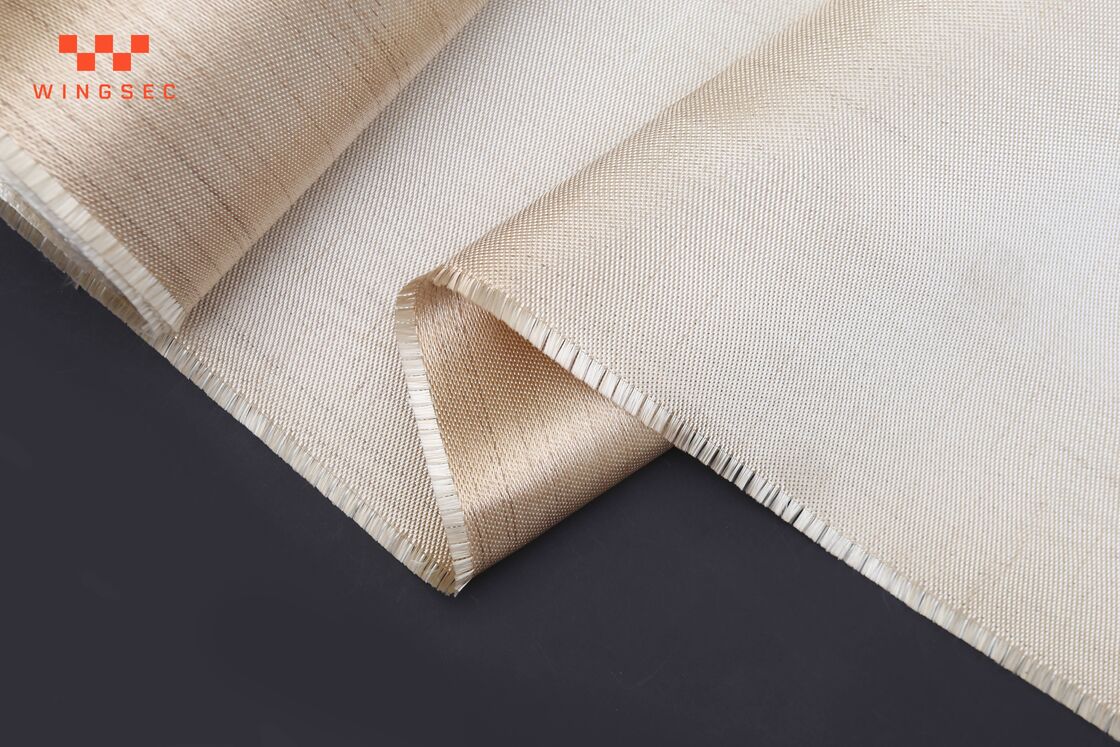

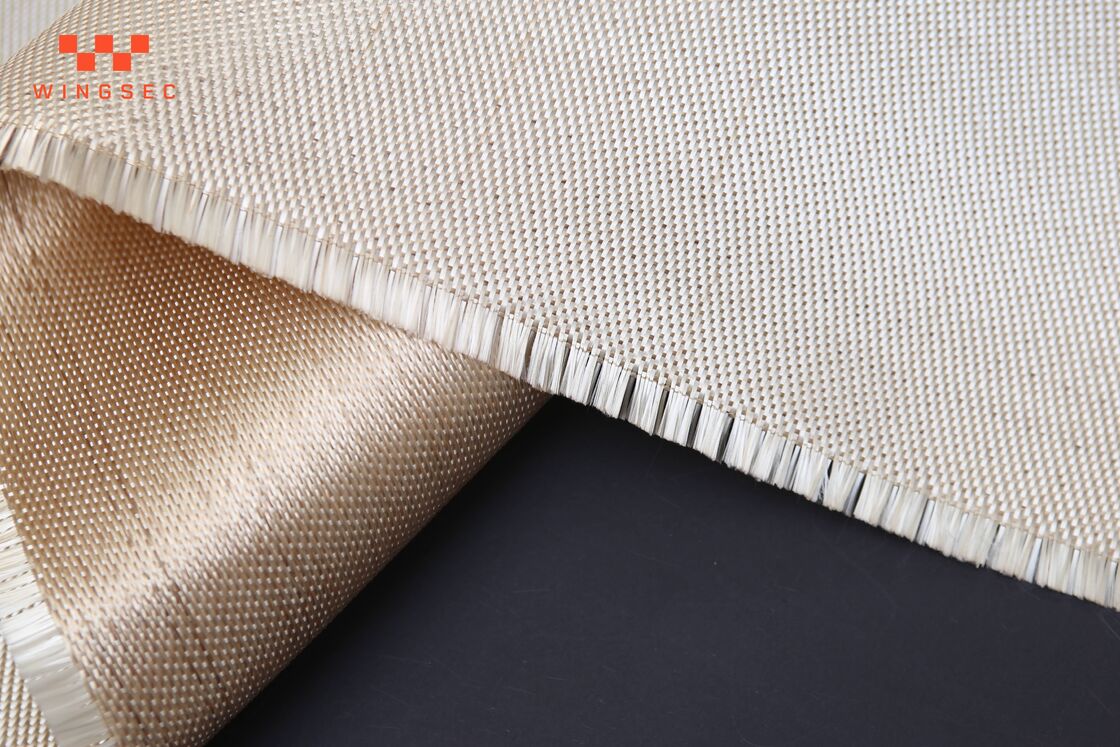

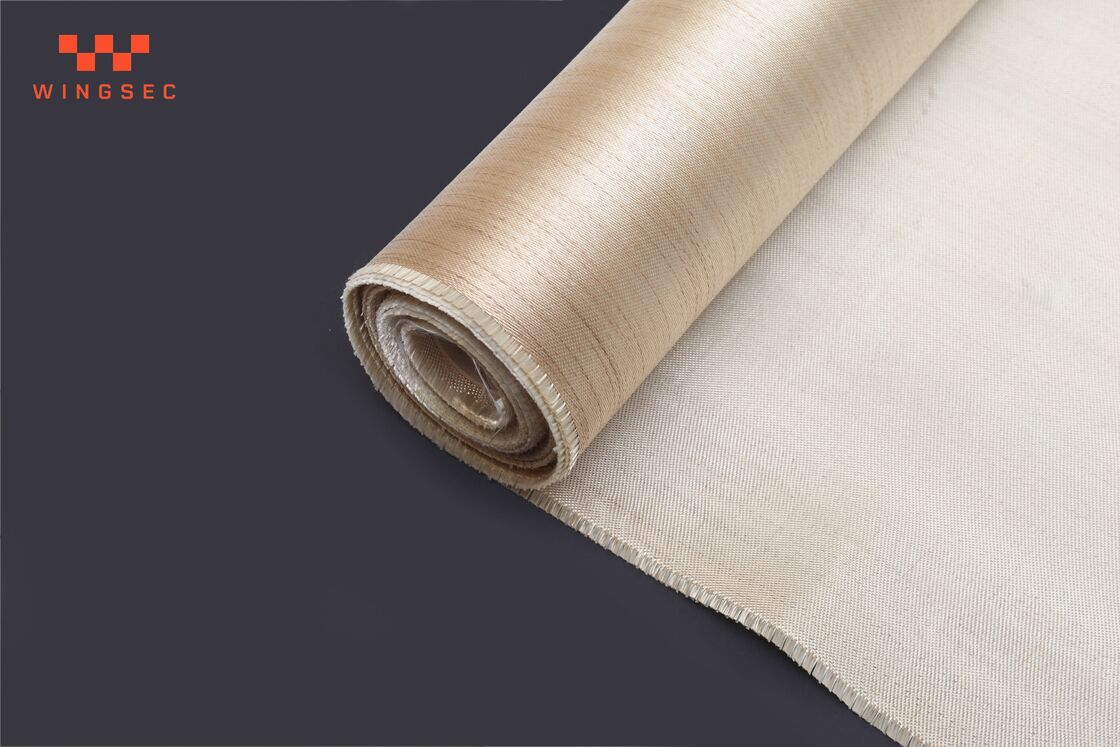

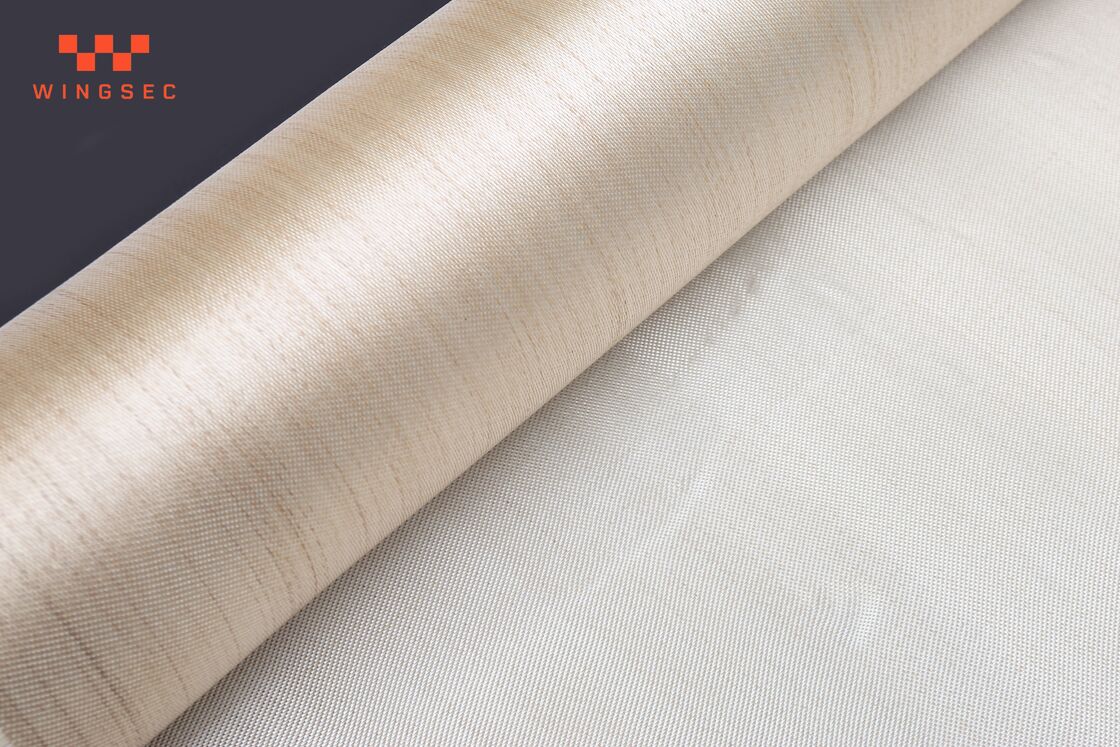

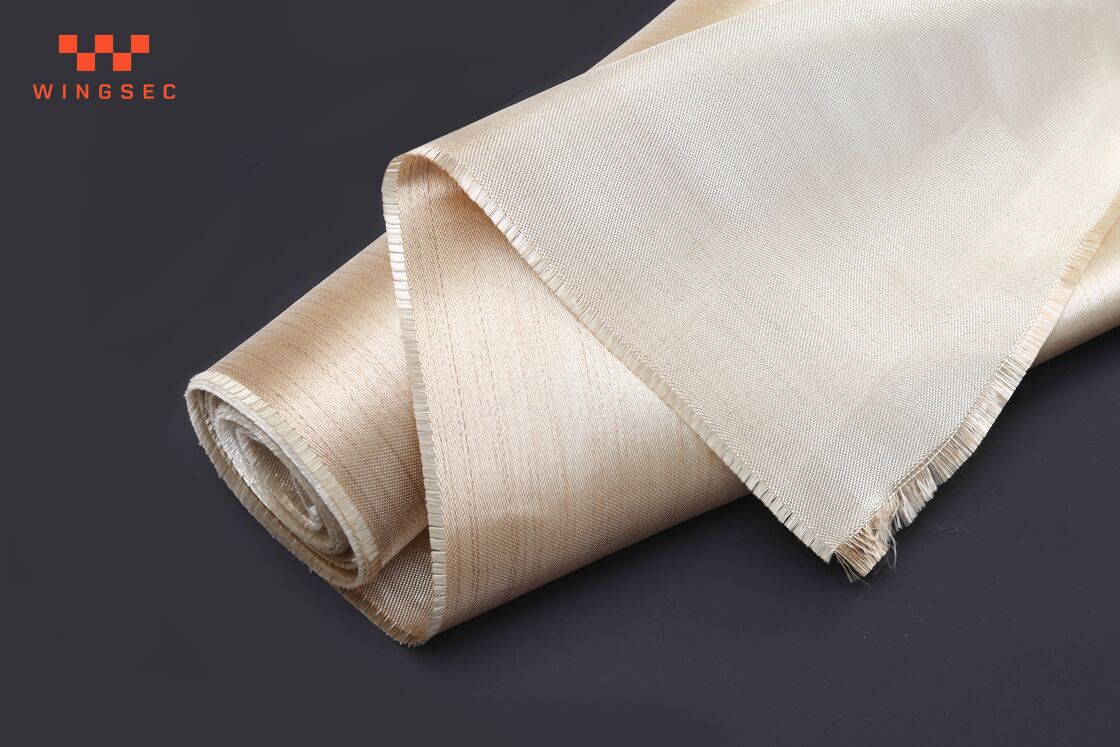

The HT3788 1.65mm heavy-duty heat-treated fiberglass welding blanket roll is engineered for maximum protection in demanding industrial environments. At 1.65mm thickness with 1650 g/m² weight, it provides exceptional defense against heavy welding spatter, continuous spark exposure, and intense radiant heat. The heat treatment process removes all organic sizing, ensuring smoke-free performance at temperatures up to 550°C. This fabric is the trusted choice for shipbuilding, structural steel fabrication, and heavy industrial welding operations.
| Parameter | Specification |
|---|---|
| Material | 100% E-Glass Fiberglass Yarn |
| Weave Type | Twill Weave |
| Thickness | 1.65 ± 0.16 mm |
| Width | 101.65 ± 2 cm (40 inch) |
| Weight | 1650 ± 50 g/m² (44.2 OZ/YD²) |
| Temperature Rating | 550°C (1022°F) |
| Tensile Strength Warp | 9500 N/5cm (1056 lbs/inch) |
| Tensile Strength Weft | 7500 N/5cm (833 lbs/inch) |
| Oil Content | < 0.5% |
| Coating Type | Heat Treatment (Smoke-Free) |
| Color | Golden / White |
Related Products
| Cloth Type | Style | Thickness | Weight |
| Woven Fiberglass Fabric | HT3732 | 0.4mm | 430gsm |
| HT800 | 0.8mm | 830gsn | |
| HT3788 | 1.6mm |
1650gsm |
|
| Texturized Fiberglass Fabric | HT2025 | 0.7mm | 580gsm |
| HTM30 | 1.2mm | 1200gsm | |
| Reinforced Fiberglass Fabric | HT 666 Reinforced with Wire | 0.6mm | 650gsm |
we can also produce other Fiberglass Fabrics, such as Write Fiberglass Fabric, PU-coated Fiberglass Fabric, Aluminum Foil GlasFiber, Silicone-coated Fiberglass Fabric, Acrylic-coated Fiberglass Cloth, Dried Fiberglass Fabrics, etc. Do you have an interest? Please contact me at any time.
Our Company Services:
1.If you want to know the detailed information, price, shipping information of other products, we can provide you with it.
2. If you accept our prices and services, you can contact us to request samples to check the quality, we can provide free samples, but we do not pay the first shipping
3. You can send your samples or technical parameters to our company, and we will re-order some samples for you according to your requirements within 15 days
4. If you have any questions about the freight forwarder, we can contact your freight forwarder to arrange the delivery and deliver the goods smoothly.
5. We will provide the most favorable prices and services, please contact us immediately
