Place of Origin:
China
Brand Name:
Wingsec
Certification:
BS474
Model Number:
WS HT2025
| Weave: Plain |
| Construction: 20 x 14 Ends/In |
| Width: 40" and 60" Standard |
| Thickness: 0.032" |
| Weight: 17.7 oz/sq yd |
| Roll Length: 50 yards |
| Service Temperature: 1000°F |

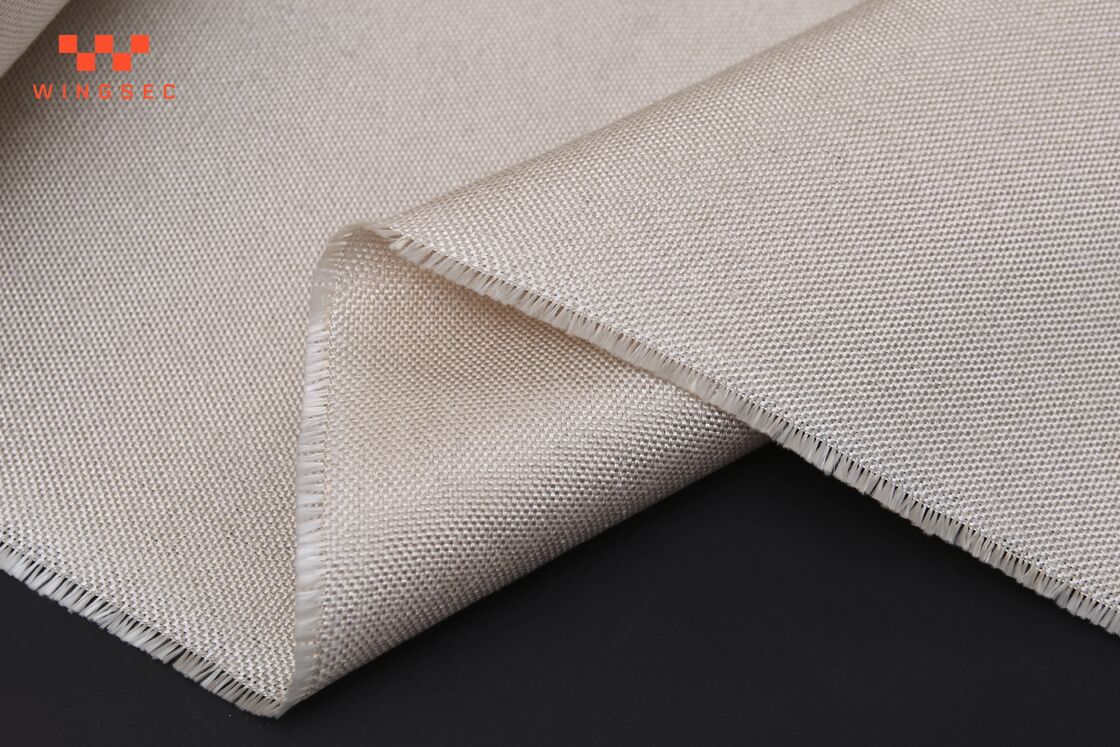

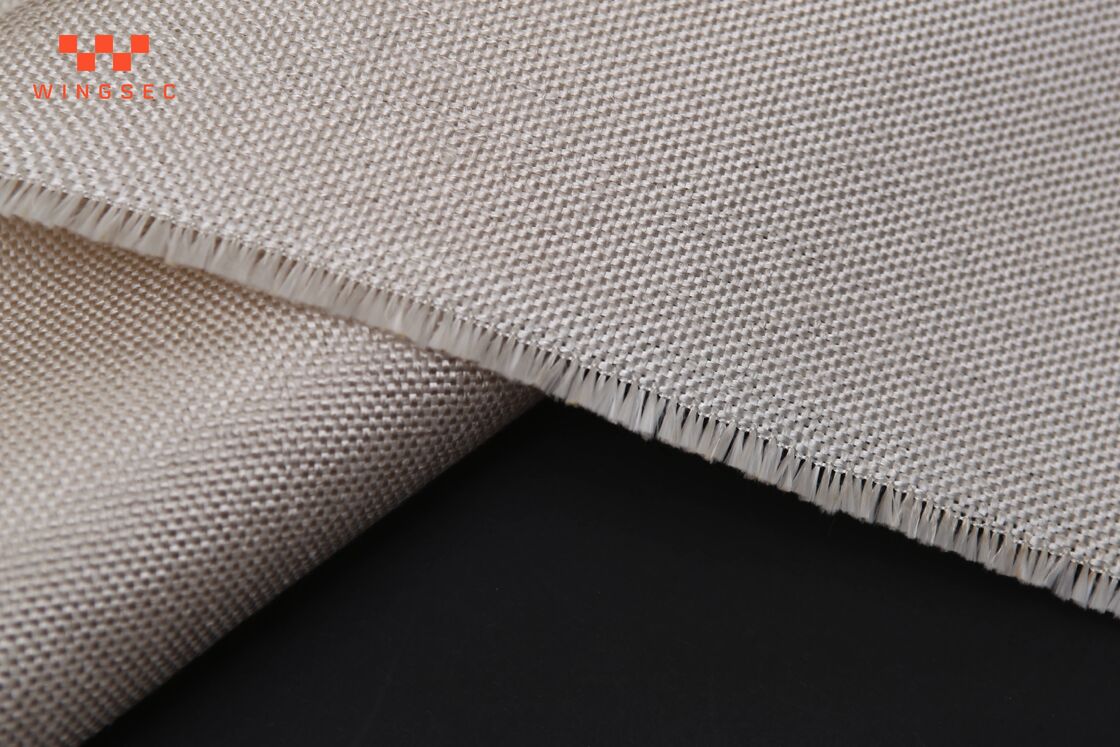

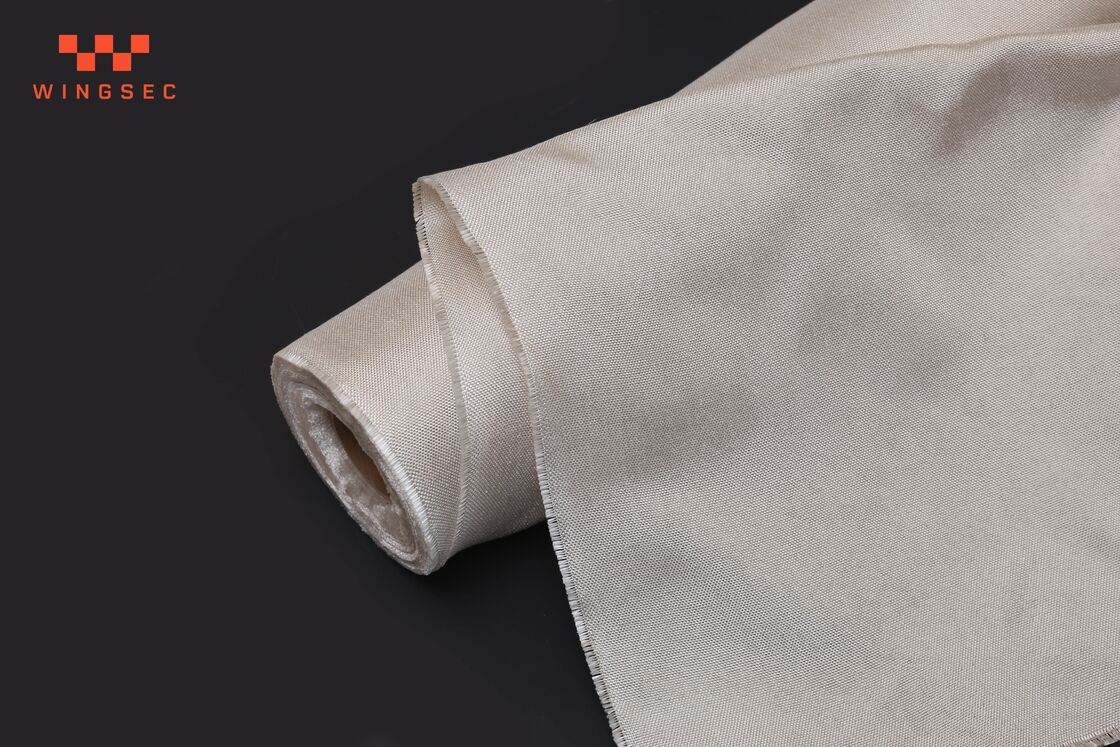

Caramelised glass fabric is composed of 100% type “E” glass fibre. This non-combustible, insulating material can resist a peak temperature of 600°C. It is natural and not harmful to human health or the environment. This fibre also has these advantages :
Furthermore, it doesn’t give off smoke. It is therefore a high-performance technical textile, with interesting properties for industrial applications requiring high mechanical and thermal resistance. This caramelized glass fabric is also highly effective in reducing smoke emissions in the event of a fire. This is why it is used in the manufacture of fire protection solutions.
| Appearance | Thickness | Base fabric | Width | Length | Weave |
| (mm) | (g/m2) | (m) | (m) | ||
| Filament | 0.4 | 430 | 1.0-1.5 | 50 | Twill |
| Filament | 1 | 840 | 1.0-1.5 | 50 | Satin |
| Filament | 1.7 | 1700 | 1.0-1.5 | 50 | Satin |
| Texturized | 0.8 | 650 | 1.0-1.5 | 50 | Plan |
| Texturized | 1 | 800 | 1.0-1.5 | 50 | Plain |
| Texturized | 1.5 | 1000 | 1.0-1.5 | 50 | Plain |
| Texturized | 2 | 1250 | 1.0-1.5 | 50 | Plain |
| Texturized | 3 | 1800 | 1.0-1.5 | 50 | Plain |
Main Applications
Fabric air distribution ducts
Fabric ductwork connector
Fire doors & Fire curtains
Welding/fire blankets
Other fire and smoke control systems.
FAQs
Q: Why choose us?
A: Wingsec's management and staff have over 20 years of combined experience in the industrial textiles industry. Leveraging advanced equipment, Wingsec is committed to providing customers with high-quality, cost-effective products.
Q: What is your delivery time?
A: We typically ship within 10 days of order, but the specific delivery time depends on the quantity you require.
Q: Where is your shipping port?
A: Typically, Shanghai Port, but custom orders are also available.
Q: Can you produce custom products?
A: Of course, we can customize according to your requirements.
Q: What payment methods do you accept?
A: We accept T/T, D/A, L/C, and D/P.
Q: Do you have other production methods?
A: Of course. We offer silicone-coated fiberglass cloth, polyurethane-coated fiberglass cloth, stainless steel wire-reinforced alkali-free fiberglass cloth, vermiculite-coated fiberglass cloth, graphite-treated fiberglass cloth, calcium silicate-coated fiberglass cloth, EPDM-coated fiberglass cloth, fluororubber-coated fiberglass cloth, aluminum foil-coated fiberglass cloth, woven lock/finished fiberglass cloth, fire blankets, welding blankets, and customized solutions for your insulation needs. We look forward to hearing from you.
