Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
Silicone Coating Fiberglass Cloth

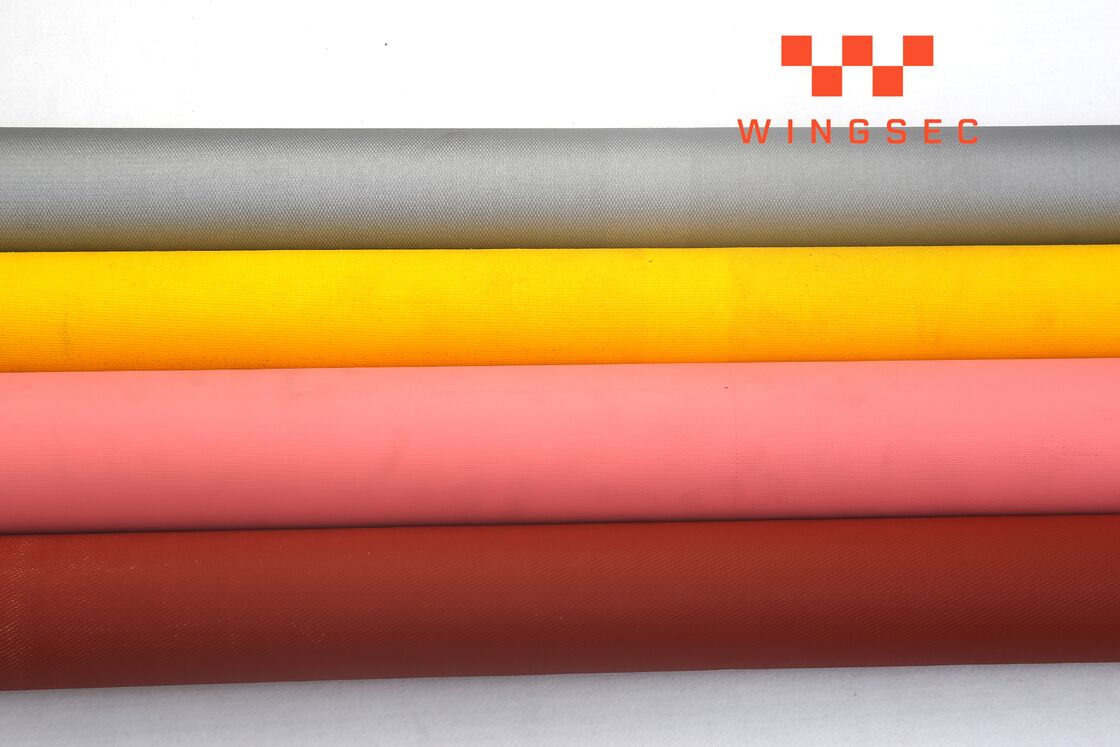

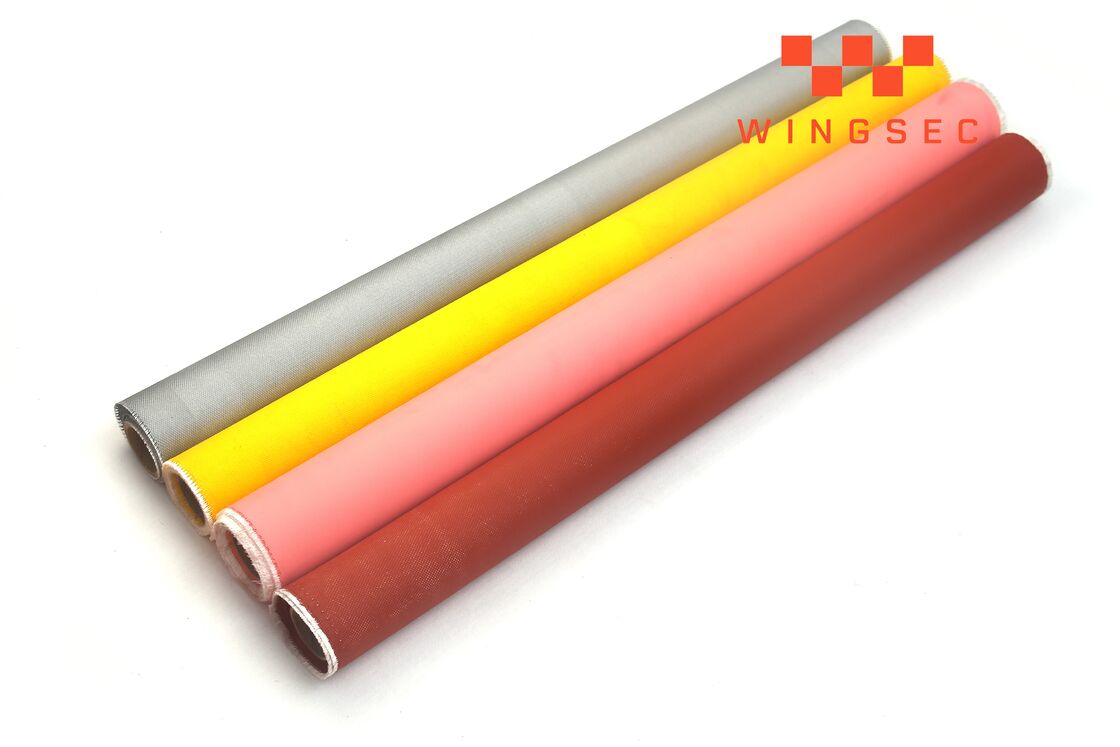

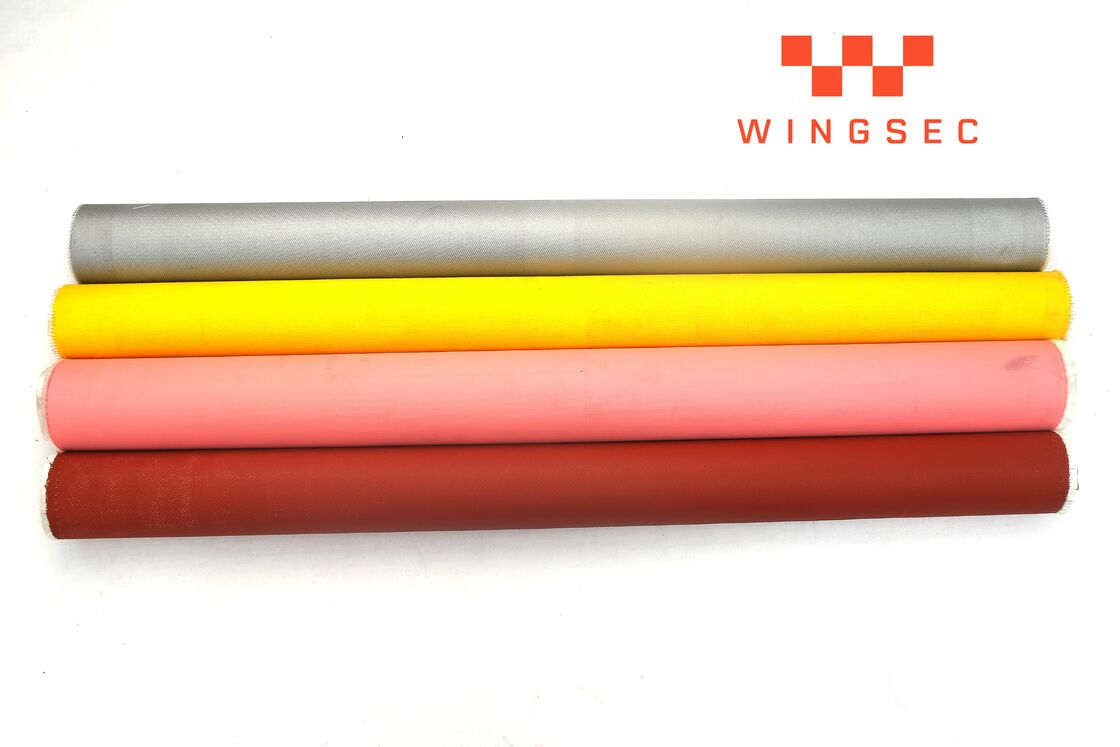

34 Oz Silicone Coating Fabric For High Temperature Removable Pads Fireproof Fiberglass Fabric
Silicone Coated Fabric Introduction
Wingsec silicone fiberglass fabric is made up of fiberglass material that is then coated or impregnated with 100% silicone rubber. This fabric is water resistant, resistant to chemicals, oil and UV, low smoke, good flame retardation, flexible even in low temperatures. It also provides greater abrasion puncture and tear resistance, great life in for uses of heat and electricity.
Technique Data Sheets
| COATED FABRIC | Coating style No. WS3784-LG2-240g | ||
| Coating | Silicone rubber 2 sides | ||
| Weight | 1160 ± 30 g/m2 | 34 ± 0. 5oz/yd2 | ASTM D3776-96 |
| Thickness | 0.85± 0.02 mm | 0.034 ± 0.0008 inch | ASTM D1777-96 |
| Color | Red | ||
| Fire resistance | Flame retardant | ||
| Temp resistance | Glass fabric up to 5500C (10000F) | ||
| Silicone rubber coating up to 2500C (4800F) | |||
Much More Related Products
| Premier Quality | Thickness (mm) | Weight (g/m2) | Weaving |
| WS7628-LG2 | 0.2mm | 230 |
Plain |
| WS7628-LG2 | 0.23mm | 280 | Plain |
|
WS3732-LG1 |
0.4mm | 510 | Twill |
| WS3732-LG2 | 0.45mm | 590 | Twill |
| WS666-LG1 | 0.6mm | 750 | 8 H Satin |
| WS666-LG2 | 0.7mm |
850 |
8 H Satin |
| WS3784-LG1 | 0.8mm |
950 |
8 H Satin |
| WS3784-LG2 | 0.9mm | 1050 | 8 H Satin |
How to choose Knife Silicone Coating Fiberglass Fabric
| Knife Silicone Coating Difference Between Premier and Industry Quality | |||
| Premier Quality | Industry Quality | ||
| 1 | Loomstate | High-speed Rapier Weaving Machine | Normal Dornier (small weaving defects might occur occasionally) |
| 2 | Silicone | Wet, High-Quality Silicone Rubber | Dry, Standard Silicone Rubber |
| 3 | Apperance | Shiny and Tacky | Dull but Smooth |
| 4 |
Performance |
Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance | Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances |
| 5 | Application | Mostly for Removable Insulation Jackets | Mostly for Welding, But Also for Economic Removable Insulation Jackets |
Silicone Coating Cloth Features
Product Name: Silicone Coated Fiberglass Fabric
Material: Silicone Coated Fiberglass Fabric
High temperature resistant
Excellent electrical insulation
Good flame retardant
Excellent chemical resistance
High strength and good flexibility
Resistant to oil and water
Excellent weather resistance
Application
Silicone Coated Fiberglass Fabric, also known as silicone-impregnated fiberglass cloth or silicone-coated glass fabric, offers excellent heat resistance, strong tensile strength, and outstanding flexibility. It is well suited for applications requiring insulation, fire protection, and thermal stability. Common uses include industrial insulation systems, gaskets, expansion joints, and liners for machinery. It is also widely applied in the production of protective clothing, gloves, and safety apparel.
In the automotive sector, this fabric protects fuel lines, brake systems, and other heat-sensitive components. It is frequently used to insulate electrical wires and cables, providing reliable protection against high temperatures and electrical hazards. In aerospace applications, it helps shield critical parts such as fuel tanks and equipment from extreme thermal conditions. The construction industry also relies on it for fire protection and safety barriers.
Silicone Coated Fiberglass Fabric plays an important role in the medical field as well, where it helps protect personnel, patients, and equipment from heat and hazardous environments. In the energy industry, it contributes to improved efficiency by enhancing insulation and reducing heat loss.
Overall, Silicone Coated Fiberglass Fabric is a highly versatile and durable material. Its combination of heat resistance, flexibility, and mechanical strength makes it an ideal solution across automotive, aerospace, medical, construction, and energy industries, ensuring long-term reliability in demanding applications.
Silicone Coating Fiberglass Fabric RFQs
1. Are you a silicone coated fiberglass fabric manufacturer?
A. Yes, we are a factory specializing in the production of heat or flame resistance fabrics and coated fabrics. Our factory is located in Yangzhou, Jiangsu,China.
2. What is the temperature resistance of the silicone coated fiberglass?
A. Silicone coated fabric is composed of silicone coating and glass fiber cloth. The temperature of the silicone coating is 250 C degrees, and the glass fiber cloth is 550 C degrees.
3. What is the main applications of silicone coated fiberglass cloth?
A. High temperature removable jackets, valve covers, welding blanket and curtains, expansion joints, fire blankets, splash curtains, conveyor belt.
4. Can silicone coated fiber glass fabric be used in industry?
A.Yes — silicone coated fiberglass fabric is widely used in industry, because it combines the strength and thermal resistance of fiberglass with the durability, flexibility, and chemical resistance of silicone rubber. You can email us(angelo.cheng@yd-wingsec.com) to learn more about it.
Silicone Coated Fiberglass Fabric provides comprehensive technical support and services to ensure that customers receive the best product experience. Our services include:
To ensure our customers receive the best service possible, our technical support team is available 24/7. We provide prompt and accurate technical support via phone, email, and online chat.
Silicone Coated Fiberglass Fabric Packaging and Shipping:
Why Choose Us
As a professional manufacturer of high-temperature fiberglass materials, Wingsec / Yidun High Temperature Materials Co., Ltd. provides OEM & ODM service, consistent quality control, and fast delivery for industrial insulation solutions.
Send your inquiry directly to us
