Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
WS666-LG2

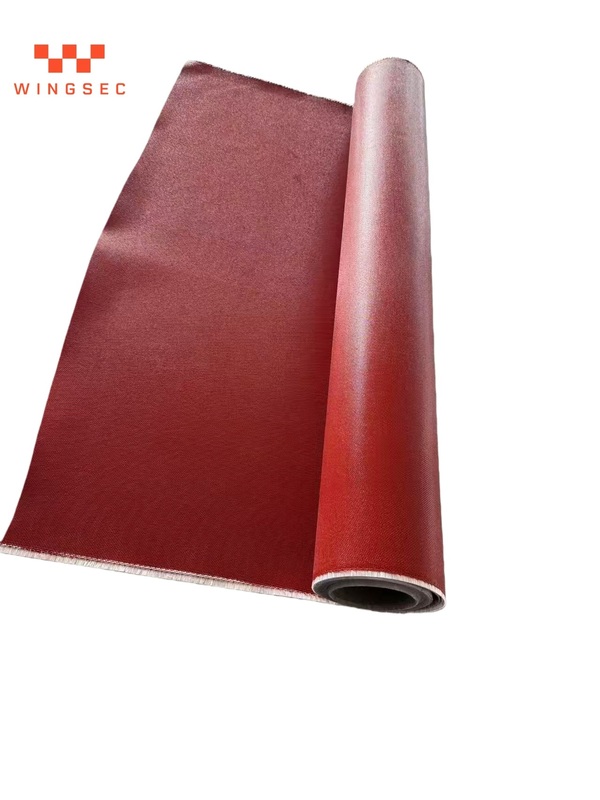

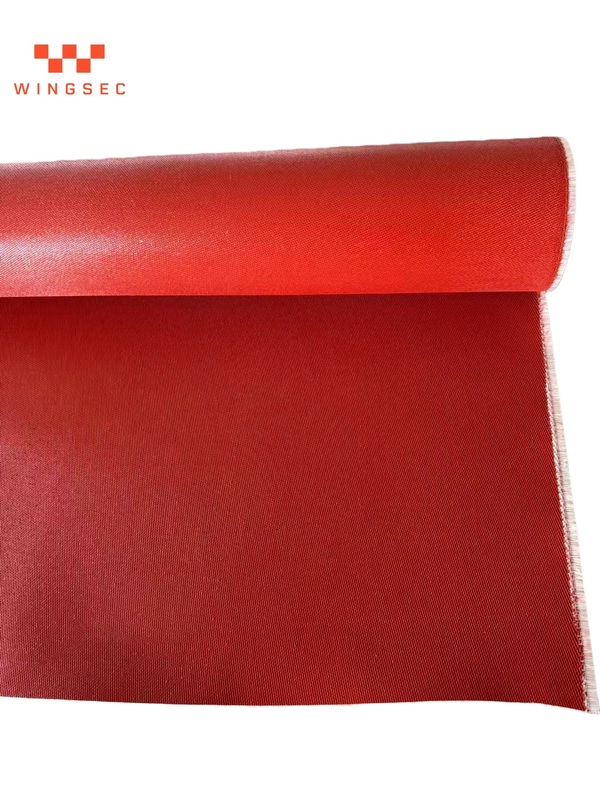

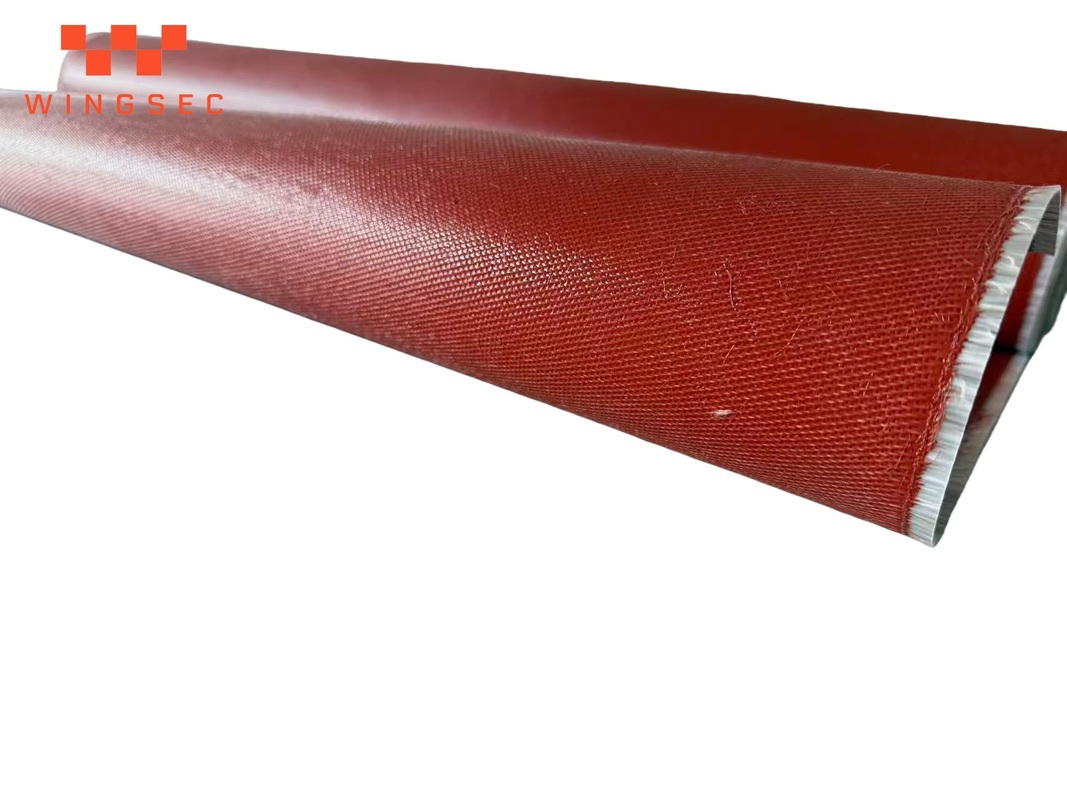

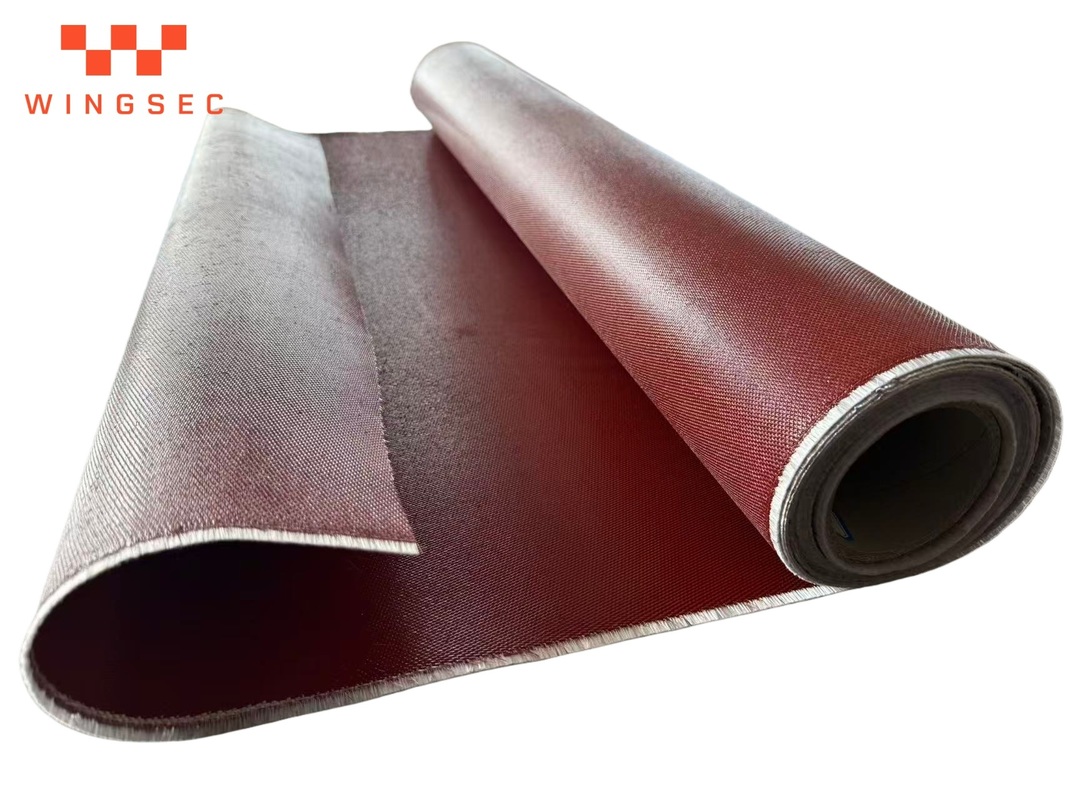

Non Flammable Abrasion Resistance Silicone Coated Fabric 850g High Strength
Silicone Coated Fabric Introduction
Technique Data Sheets
| BASE FABRIC | Base fabric style No. YD3732 | ||
| (metric) | (English) | Test methods | |
| Weave | 8H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1*3 | ECG 75 1/3 | |
| Weft | EC9 68 1*3 | ECG 75 1/3 | |
| Construction | |||
| Warp | 16 ± 1 ends/cm | 40 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 15± 1 picks/cm | 38 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 630 ± 30 g/m2 | 18.5 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.7 ± 0.06 mm | 0.03 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. WS3732-LG2-160g | ||
| Coating | Silicone rubber 2 sides | ||
| Weight | 830 ± 30 g/m2 | 24.48 ± 0. 88oz/yd2 | ASTM D3776-96 |
| Thickness | 0.7± 0.02 mm | 0.028 ± 0.0007 inch | ASTM D1777-96 |
| Color | Red | ||
| Fire resistance | Flame retardant | ||
| Temp resistance | Glass fabric up to 5500C (10000F) | ||
| Silicone rubber coating up to 2500C (4800F) | |||
Much More Related Products
| Premier Quality | Thickness (mm) | Weight (g/m2) | Weaving |
| WS7628-LG2 | 0.2mm | 230 |
Plain |
| WS7628-LG2 | 0.23mm | 280 | Plain |
|
WS3732-LG1 |
0.4mm | 510 | Twill |
| WS3732-LG2 | 0.45mm | 590 | Twill |
| WS666-LG1 | 0.6mm | 750 | 8 H Satin |
| WS666-LG2 | 0.7mm |
850 |
8 H Satin |
| WS3784-LG1 | 0.8mm |
950 |
8 H Satin |
| WS3784-LG2 | 0.9mm | 1050 | 8 H Satin |
How to choose Knife Silicone Coating Fiberglass Fabric
| Knife Silicone Coating Difference Between Premier and Industry Quality | |||
| Premier Quality | Industry Quality | ||
| 1 | Loomstate | High-speed Rapier Weaving Machine | Normal Dornier (small weaving defects might occur occasionally) |
| 2 | Silicone | Wet, High-Quality Silicone Rubber | Dry, Standard Silicone Rubber |
| 3 | Apperance | Shiny and Tacky | Dull but Smooth |
| 4 |
Performance |
Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance | Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances |
| 5 | Application | Mostly for Removable Insulation Jackets | Mostly for Welding, But Also for Economic Removable Insulation Jackets |
Silicone Coating Cloth Features
Excellent heat resistance
High strength and flexible
Non-flammable
Good heat and cold resistance (-70 to 260℃)
Outstanding resistant of chemical and weathering
Application
Silicone Coating Fiberglass Fabric RFQs
1. Are you a silicone coated fiberglass fabric manufacturer?
A. Yes, we are a factory specializing in the production of heat or flame resistance fabrics and coated fabrics. Our factory is located in Yangzhou, Jiangsu,China.
2. What is the temperature resistance of the silicone coated fiberglass?
A. Silicone coated fabric is composed of silicone coating and glass fiber cloth. The temperature of the silicone coating is 250 C degrees, and the glass fiber cloth is 550 C degrees.
3. What is the main applications of silicone coated fiberglass cloth?
A. High temperature removable jackets, valve covers, welding blanket and curtains, expansion joints, fire blankets, splash curtains, conveyor belt.
4. Can silicone coated fiber glass fabric be used in industry?
A.Yes — silicone coated fiberglass fabric is widely used in industry, because it combines the strength and thermal resistance of fiberglass with the durability, flexibility, and chemical resistance of silicone rubber. You can email us(angelo.cheng@yd-wingsec.com) to learn more about it.
Why Choose Us
As a professional manufacturer of high-temperature fiberglass materials, Wingsec / Yidun High Temperature Materials Co., Ltd. provides OEM & ODM service, consistent quality control, and fast delivery for industrial insulation solutions.
