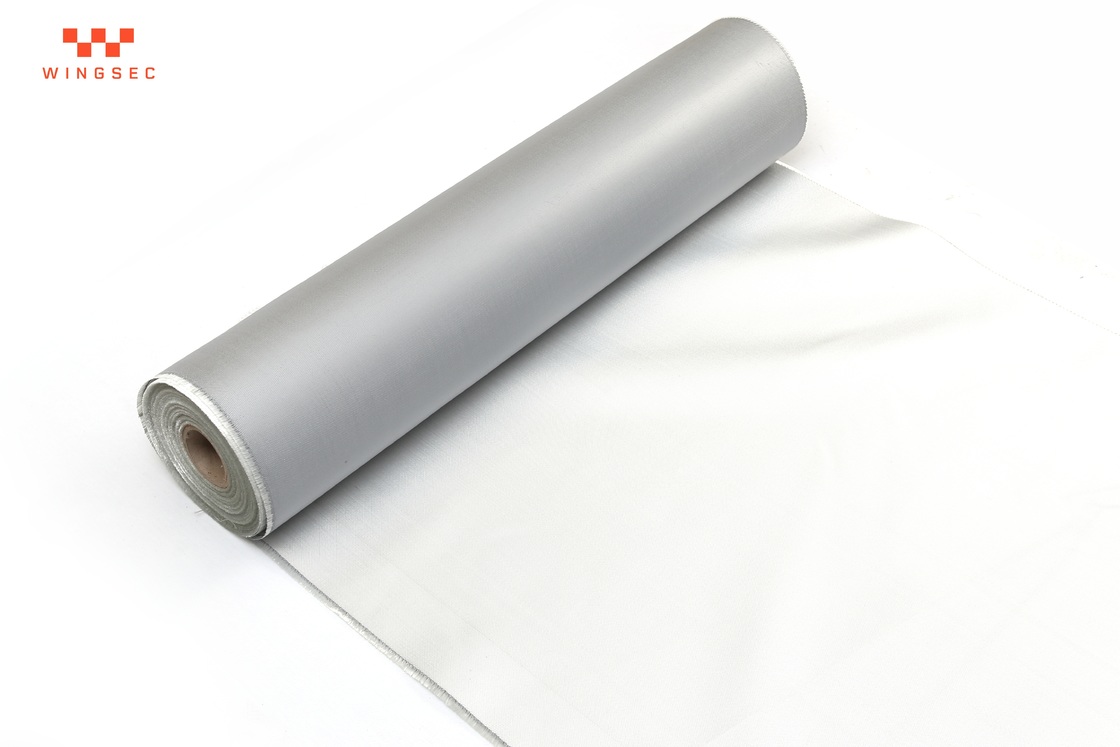

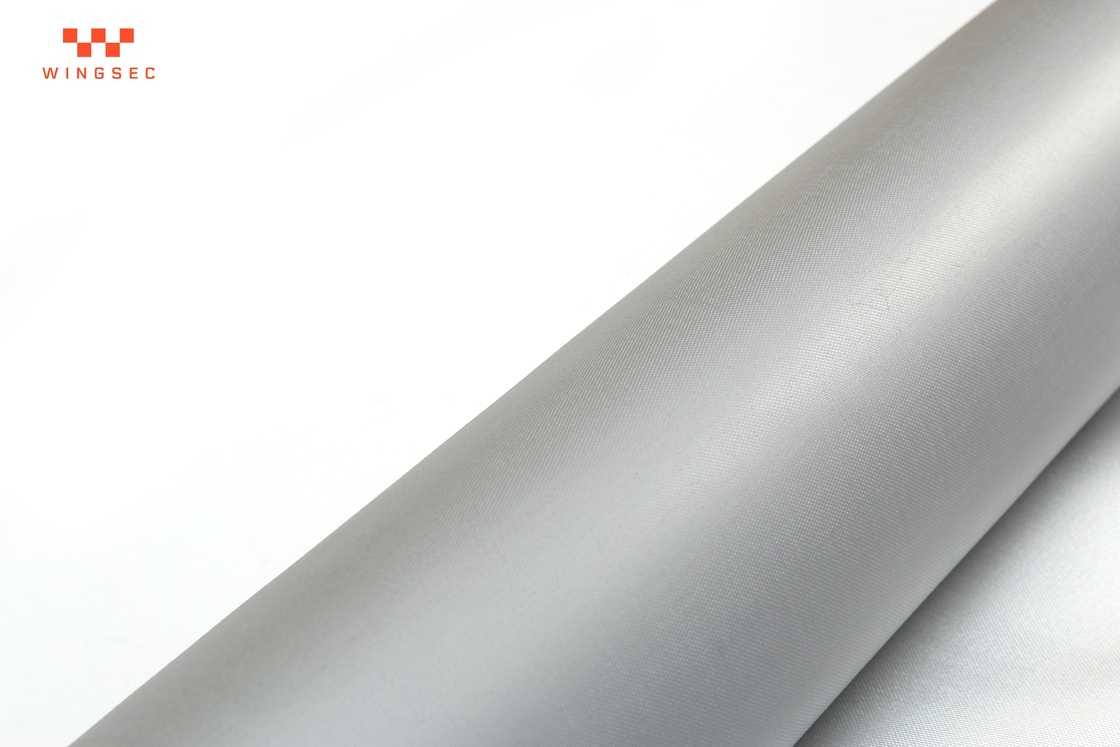

Fire Resistant PU Coated Fiberglass Cloth 460gsm Fiberglass Polyurethane Coated Fabric

PU Coated Fiberglass Cloth 460gsm Fire Resistant polyurethane coated fabric

Polyurethane Coated Fabric Introduction

PU coated fiberglass fabric is made by special formulated flame retarded aluminum pigment polyurethane (PU) coated glass fabric or silica fiberglass fabric. PU coated imparts fiber glass cloth good weave setting (anti-fiber fraying, fabric rigid) and water repel properties. PU coated fiberglass cloth is a outstanding fireproof cloth for heat resistance and fireproof application. Polyurethane PU coated smoke cloth can withstand a continuous working temperature of 550℃ and a short term working temperature of 600℃. It has impressive fire and smoke applications due to its many useful characteristics such as being impermeable to gases while still allowing some light through. In addition, it is halogen free, fire proof and has high stability.
Polyurethane coating fiberglass cloth is also often used for sound insulation veneer materials, air duct thermal protection fabrics, blinds, etc. The polyurethane-bonded high-density canvas membrane has different densities and is suitable for other loads.
All the Wingsec's fabric can be finished with this PU coating.

Technique Data Sheets

Much More Related Products

Polyurethane Coating Cloth Features

• Good certified fire resistance.
• End users can choose the favority face.
• Easy to be applied, sewn and fabricated.
• Well abrasion resistance property.
• Well tensile strength.
• Nominal Thickness, unit weight, pattern, all can be customized base on your use method.

Application

Fire curtain

Welding blanket

Compensator / Flexible sleeve

Removable heat insulation jacket

Heat insulation mat

Fabric duct

                               Fireproof Bag                                                                      Welding Blanket

                    Fireproof Insulation Jacket                                                        Fire & Smoke Curtain

Advantages of Fiberglass Cloth
Fiberglass fabric remains the most commonly used reinforcement material in the composites industry. Fiberglass is the lowest-cost and easiest to process of all reinforcement materials. Furthermore, when combined with resin, fiberglass fabric offers strength, light weight, and excellent appearance.

When selecting industrial fiberglass fabric, many specific parameters need to be considered. These parameters can be categorized into four basic variables: yarn weight, warp count, weave pattern, and fabric surface treatment.

The wide variation in fiberglass yarn weight and warp count provides the basis for fabric design. Together, yarn weight and warp count determine the fabric's strength, weight, and thickness.

Fiberglass fabric is manufactured using basic weave types. There are five basic weave patterns for industrial fiberglass fabric: plain, twill, satin, leno, and basket weave.

The fabric structure is determined by the number of warp and weft yarns per inch of fabric and the weave pattern.

The surface treatment of fiberglass fabric is important. Most applications require the use of a coating material with the fiberglass fabric. For compatibility with resin coating, organic coating or post-treatment, perform surface treatment.

RFQs

1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Why do you choose us?
A: Wingsec management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q: What is your delivery time?
A: Generally we will within 30 days of delivery to you
4. Q: Can you produce customized goods?
A: Surely, we can be customized according to your demanding.
5. Q: What kinds of payment you accept?
A: We accept T/T, L/C, D/P.
6. Q: Do you have other production?
A:  Certainly, we still have Rewettable fiberglass fabric, EPDM, Fluoride, Silicone, Polyurethane, Vermiculite coated fiberglass fabric, & Aluminized aramid fabric. We are looking forward to your enquiry.
