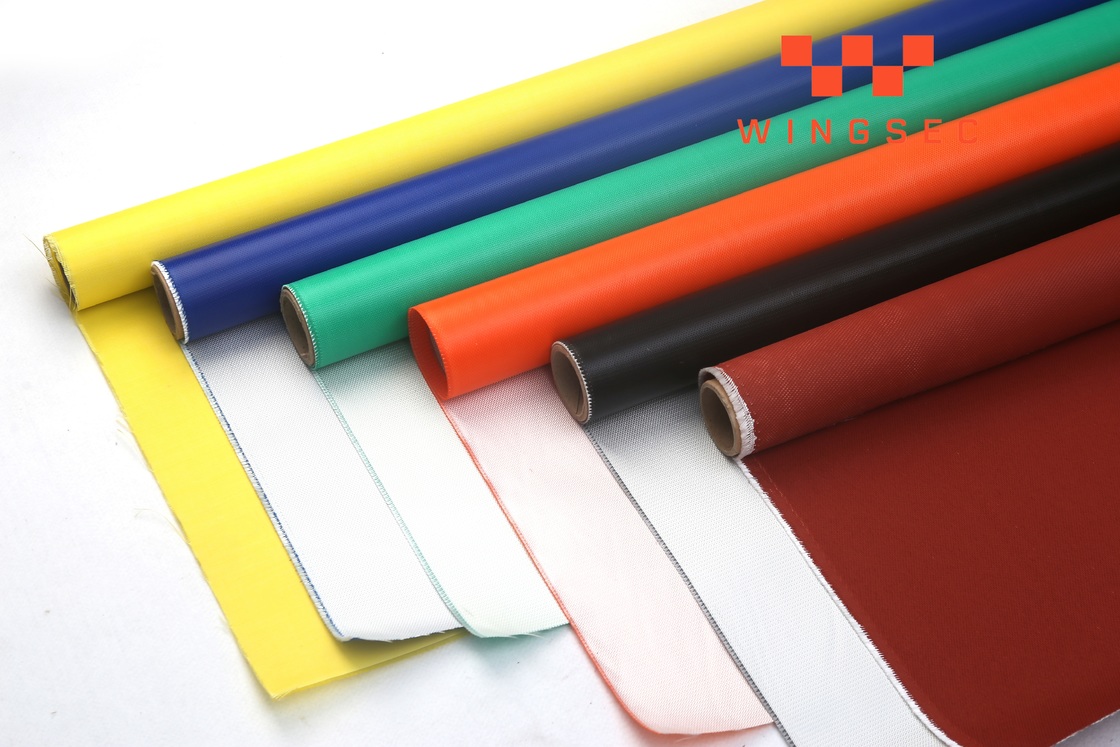

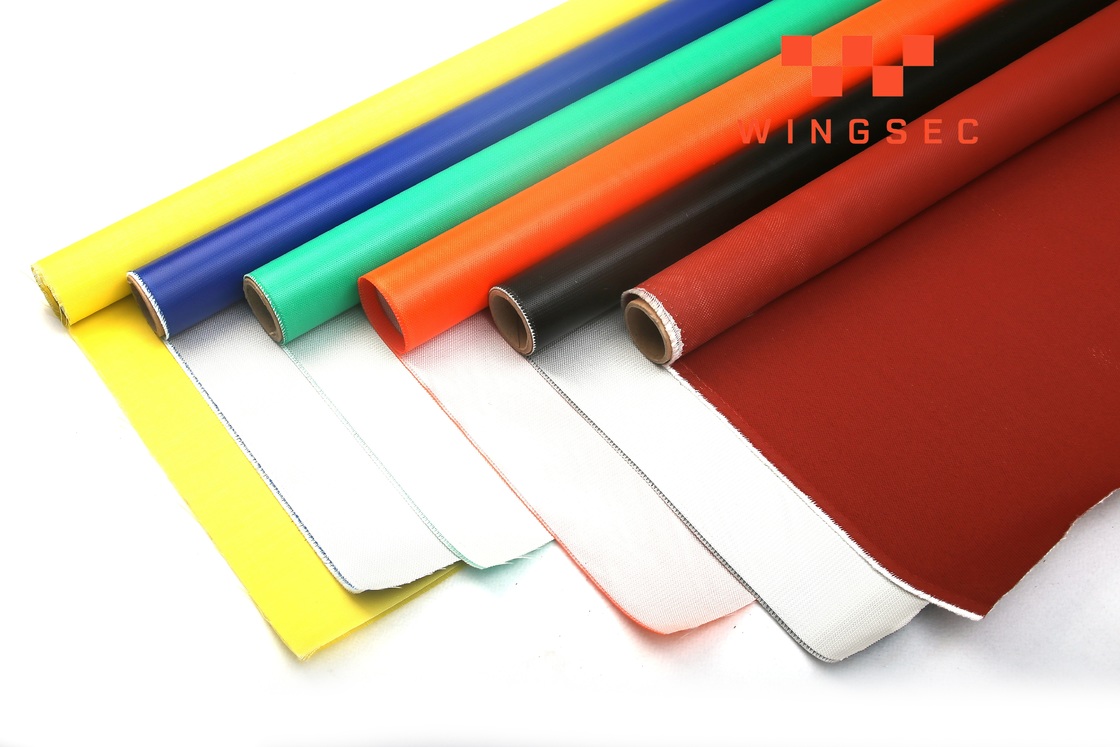

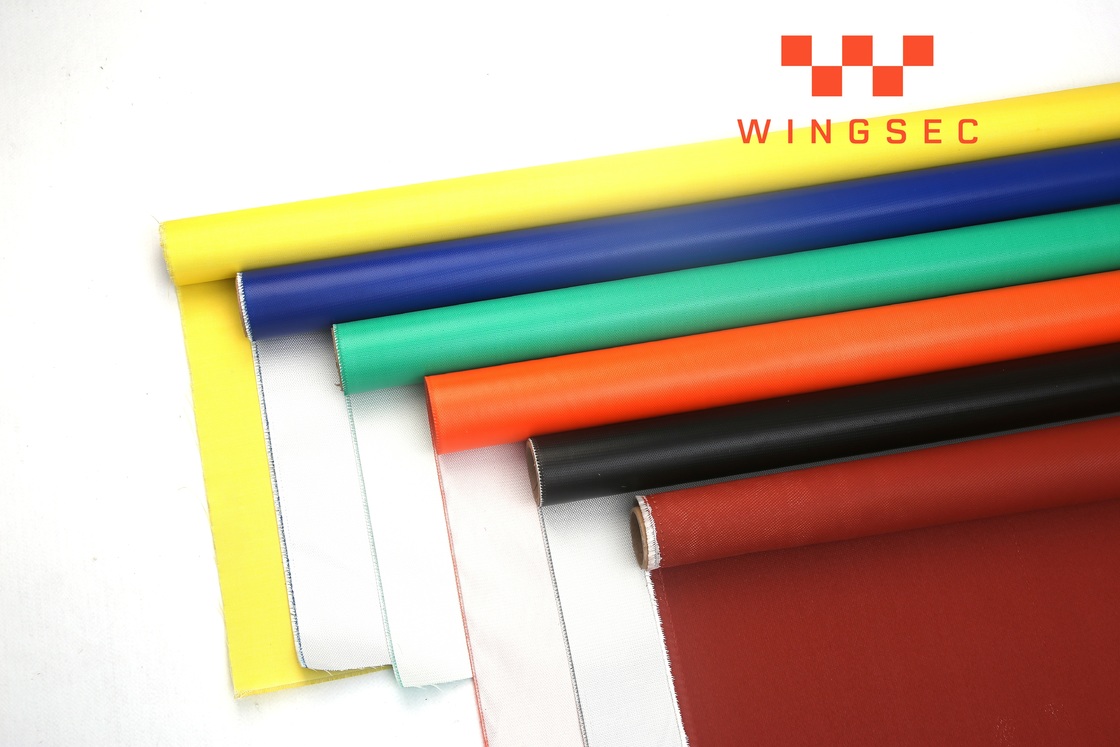

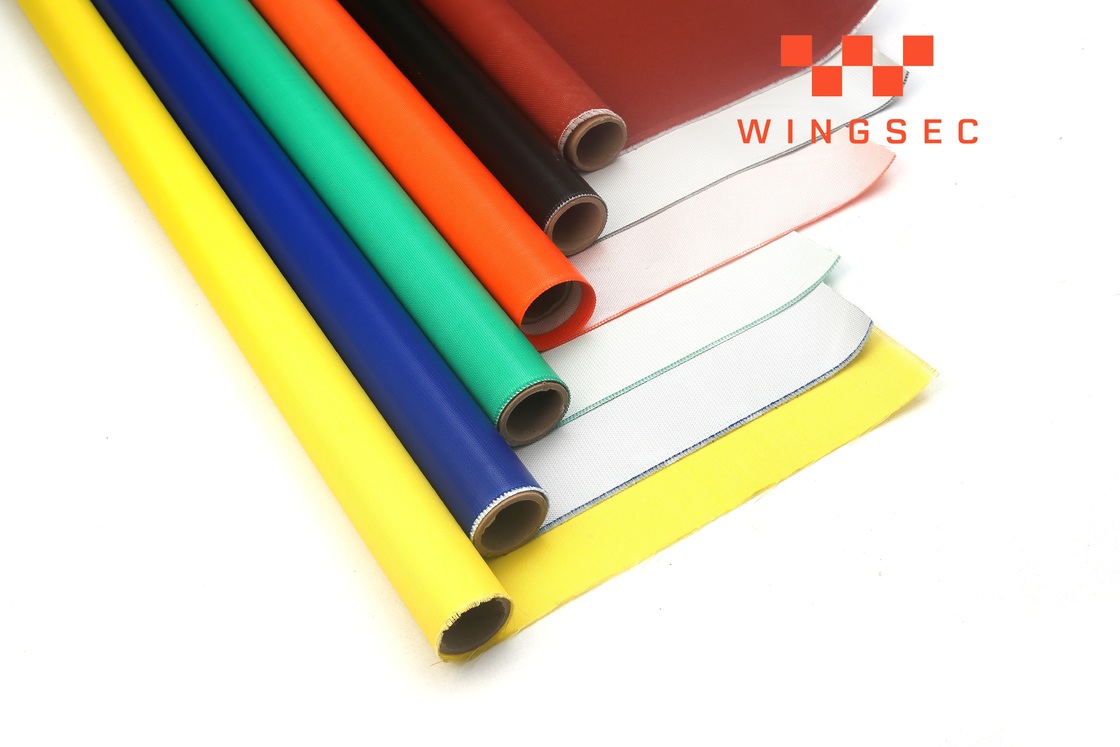

Silicone Coated Fabric Introduction
High-quality silicone coated fiberglass fabric designed to meet the rigorous demands of industrial and commercial environments. The unique combination of fiberglass base and silicone coating allows it to withstand extreme temperatures up to 260°C, while offering excellent resistance to fire, water, UV rays, and chemicals. Ideal for welding blankets, fireproof curtains, oven insulation, and electrical insulation applications, this versatile material ensures long-term durability and safety. Its flexibility and lightweight structure make it easy to cut, sew, or wrap around equipment, machinery, and surfaces that require protection from heat or sparks. Resistant to abrasion, tearing, and environmental factors, this silicone coated fiberglass cloth is perfect for automotive, construction, and manufacturing industries. The smooth silicone surface also prevents contamination and facilitates easy cleaning, making it a reliable solution for both industrial and home safety applications.
Technique Data Sheets
| WS3732 LG1 Grey Silicone Coating Fiberglass Cloth | ||
| Item Model | WS3732 LG1 Grey | |
| Description | E-glass Silicone Coating Industry Fabric | |
| Weave Structure | 1/3 Twill | |
| Cloth Weight | 430gsm | |
| Silicone Coating | 80g/m2 | |
| Thickness | 0.43mm | |
| Yarn Type | Warp | EC9 136 Tex |
| Weft | EC9 136Tex | |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 12±1 ends/cm | |
| Breaking Strength | Warp | >700N/cm |
| Weft | >600N/cm | |
| Working Temperature | Basic fabric 550 ºC, Silicone coating 260 ºC | |
| Fire Resistance | Non-Flame | |
Much More Related Products
| Premier Quality | Thickness (mm) | Weight (g/m2) | Weaving |
| WS7628-LG2 | 0.2mm | 230 |
Plain |
| WS7628-LG2 | 0.23mm | 280 | Plain |
|
WS3732-LG1 |
0.4mm | 510 | Twill |
| WS3732-LG2 | 0.45mm | 590 | Twill |
| WS666-LG1 | 0.6mm | 750 | 8 H Satin |
| WS666-LG2 | 0.7mm |
850 |
8 H Satin |
| WS3784-LG1 | 0.8mm |
950 |
8 H Satin |
| WS3784-LG2 | 0.9mm | 1050 | 8 H Satin |
How to choose Knife Silicone Coating Fiberglass Fabric
| Knife Silicone Coating Difference Between Premier and Industry Quality | |||
| Premier Quality | Industry Quality | ||
| 1 | Loomstate | High-speed Rapier Weaving Machine | Normal Dornier (small weaving defects might occur occasionally) |
| 2 | Silicone | Wet, High-Quality Silicone Rubber | Dry, Standard Silicone Rubber |
| 3 | Apperance | Shiny and Tacky | Dull but Smooth |
| 4 |
Performance |
Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance | Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances |
| 5 | Application | Mostly for Removable Insulation Jackets | Mostly for Welding, But Also for Economic Removable Insulation Jackets |
Silicone Coating Cloth Features
Excellent Heat Resistance – Continuous working temperature up to 260°C, short-term up to 550°C
Chemical & Weather Resistance – Resistant to oils, ozone, moisture, and aging
High Tensile Strength – Reinforced woven fiberglass base ensures superior durability
Electrical Insulation – Stable dielectric performance under high temperature
Waterproof & Anti-Stick Surface – Silicone coating prevents water, dust, and molten metal adhesion
Easy to Cut & Sew – Suitable for making customized covers, jackets, and welding curtains
Application
1. smoke curtain, fire blankets, welding blankets.
2. removable insulation jackets, heat shield, valve covers.
3. flexible duct connector.
Silicone Coating Fiberglass Fabric RFQs
1. Are you a silicone coated fiberglass fabric manufacturer?
A. Yes, we are a factory specializing in the production of heat or flame resistance fabrics and coated fabrics. Our factory is located in Yangzhou, Jiangsu,China.
2. What is the temperature resistance of the silicone coated fiberglass?
A. Silicone coated fabric is composed of silicone coating and glass fiber cloth. The temperature of the silicone coating is 250 C degrees, and the glass fiber cloth is 550 C degrees.
3. What is the main applications of silicone coated fiberglass cloth?
A. High temperature removable jackets, valve covers, welding blanket and curtains, expansion joints, fire blankets, splash curtains, conveyor belt.
4. Can silicone coated fiber glass fabric be used in industry?
A.Yes — silicone coated fiberglass fabric is widely used in industry, because it combines the strength and thermal resistance of fiberglass with the durability, flexibility, and chemical resistance of silicone rubber. You can email us(angelo.cheng@yd-wingsec.com) to learn more about it.
Why Choose Us
As a professional manufacturer of high-temperature fiberglass materials, Wingsec / Yidun High Temperature Materials Co., Ltd. provides OEM & ODM service, consistent quality control, and fast delivery for industrial insulation solutions.
