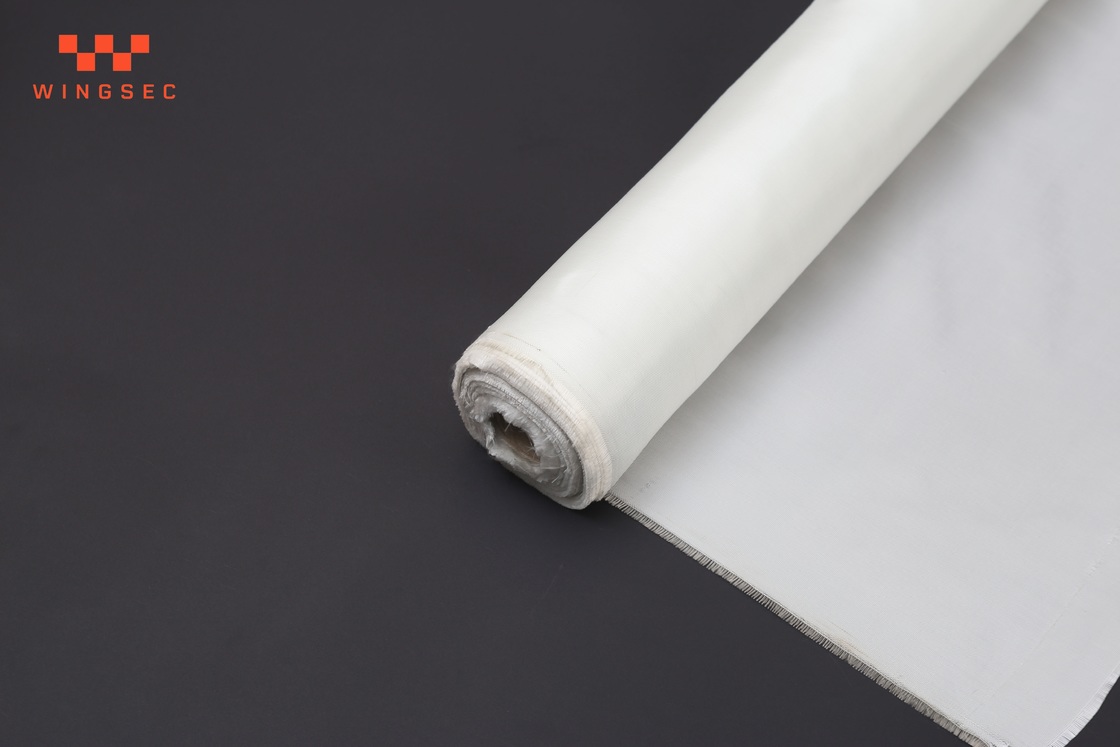

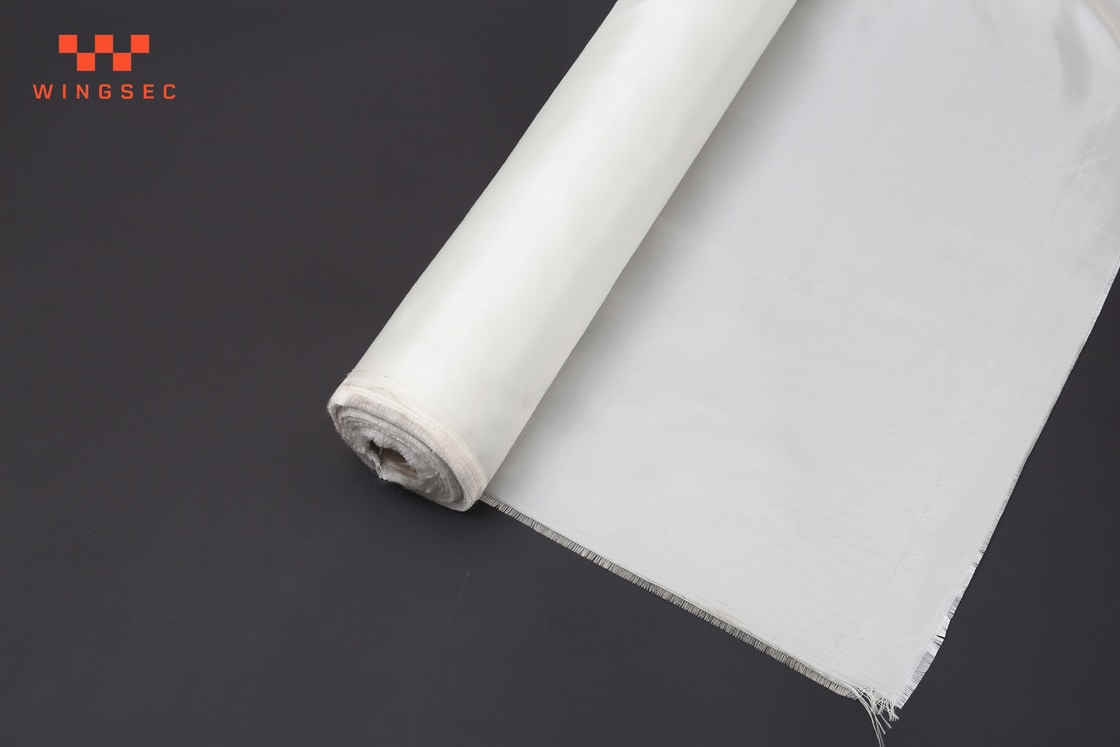

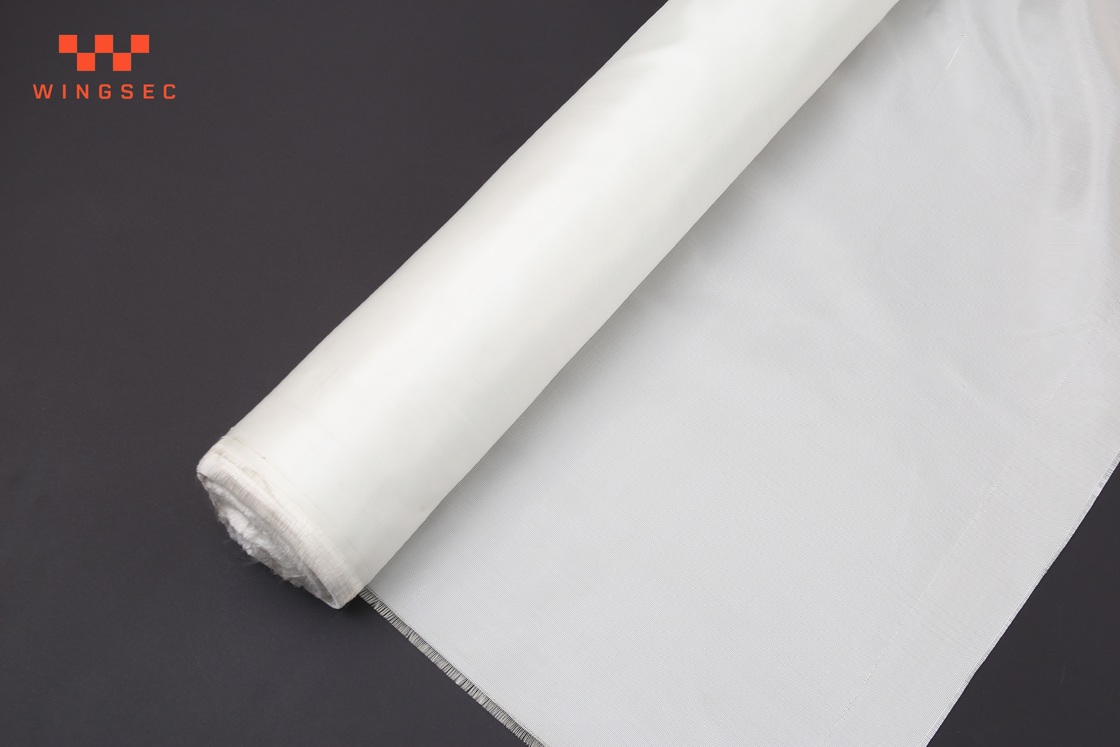

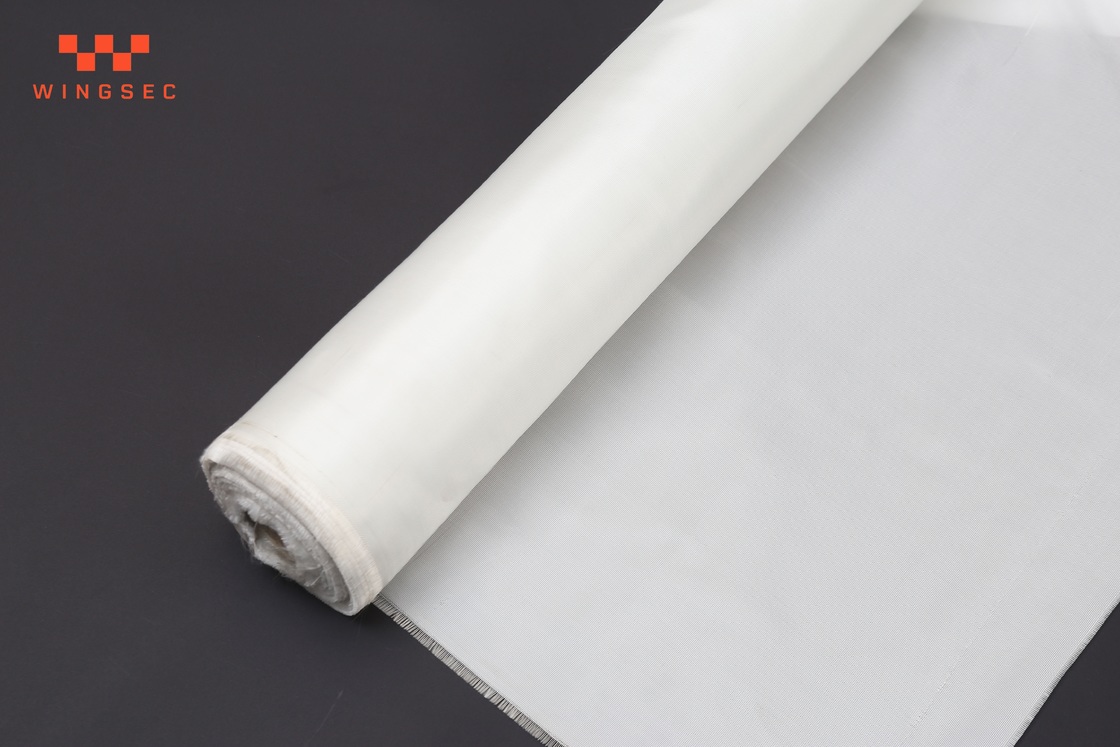

0.4mm Thickness Fireproofing Fiberglass Cloth Roll , Corrosion Resistant Woven Fiberglass Cloth
Product Introduction
Fiberglass cloth is an ideal high-tensile-strength industrial material, offering excellent properties such as high dimensional stability, flame retardancy, heat resistance, and chemical resistance. Our main product lines include various medium-alkali and alkali-free fiberglass cloths, with weaves including leno, plain, twill, and satin. All thicknesses, weights, densities, and widths can be customized and adjusted to meet customer requirements, and post-processing can be applied to suit the specific application.
| WS3732 |
| Item Model |
3732 Fiberglass Fabric |
| Description |
E-glass Industrial Fabric |
| Weave Structure |
1/3 Twill Weave |
| Weight |
430gsm |
| Thickness |
0.43mm |
| Yarn Type |
Warp |
EC9 68 1*2 |
| Weft |
EC9 68 1*2 |
| Thread Count |
Warp |
18±1 ends/cm |
| Weft |
12±1 picks/cm |
| Break Strength |
Warp |
6000 N/5cm |
| Weft |
4500 N/5cm |
| LOI |
< 5% |
| Working Temperature |
≤550℃ |
Product Features
This fiberglass fabric is made from continuous glass fiber yarn. It offers excellent properties: lightweight, high strength, high-temperature and heat resistance, non-flammability, corrosion resistance, excellent electrical insulation, and environmental friendliness.
1. Excellent chemical resistance;
2. Fire and heat resistance;
3. Easy resin impregnation and high bond strength.
Electrical insulation fabric provides exceptional performance for the electrical industry. Its high strength, dimensional stability, high-temperature resistance, and excellent electrical properties make it a primary reinforcement material for high-voltage laminates in printed circuit boards.
Applications:
Used in automotive, marine, gratings, bathtubs, FRP composites, storage tanks, waterproofing, reinforcement, insulation, spraying, spray guns, mats, GMT, boats, CSM, FRP, panels, car bodies, knitting, chopped strands, pipes, plaster molds, boat hulls, wind energy, wind turbine blades, FRP boat hulls, FRP swimming pools, FRP fish tanks, FRP fishing boats, FRP molds, FRP rods, FRP swimming pools, FRP boat molds, FRP pools, FRP chop guns, FRP spray guns, FRP water tanks, fiberglass pressure vessels, fiberglass rods, fiberglass fish ponds, fiberglass resin, fiberglass car bodies, fiberglass boards, fiberglass ladders, fiberglass insulation, fiberglass boats, fiberglass rooftop tents, fiberglass statues, fiberglass gratings, fiberglass rebar, fiberglass reinforced concrete, fiberglass swimming pools, and more.
Much More Related Products
| Fiberglass Cloth Roving |
| Item Name |
Thickness (mm) |
Weight (g/m2) |
Weave |
Width Length (cm) |
Remarks |
| E7628 |
0.18 |
180 |
Plain |
127 |
All Size Can be Customized |
| C7628 |
0.2 |
200 |
Plain |
100/130/150 |
| CW280 |
0.28 |
280 |
Plain |
102 |
| E3732 |
0.38 |
430 |
1/3 Satin |
100/120/150/180/200 |
| C3732 |
0.38 |
430 |
1/3 Twill |
100/120/150/180/200 |
| 2523 |
0.38 |
380 |
Plain |
100/120/150/180/200 |
| E666 |
0.6 |
630 |
8H Satin |
100/120/150/180/200 |
| C666 |
0.6 |
630 |
8H Satin |
100/120/150/180/200 |
| E3784 |
0.8 |
850 |
8H Satin |
100/120/150/180/200 |
| C3784 |
0.8 |
850 |
8H Satin |
100/120/150/180/200 |
| E3786 |
1.2 |
850 |
8H Satin |
100/120/150/180/200 |
| C3786a |
1.2 |
1000 |
12H Satin |
100/120/150/180/200 |
| C3786b |
1.2 |
1200 |
12H Satin |
100/120/150/180/200 |
| C3786c |
1.2 |
1300 |
12H Satin |
100/120/150/180/200 |
| E3788 |
1.6 |
1650 |
12H Satin |
100/120/150/180/200 |
| C3788 |
1.6 |
1650 |
12H Satin |
100/120/150/180/200 |
