Place of Origin:
China
Brand Name:
Wingsec
Certification:
UL94-V0
Model Number:
WS3732-LG1

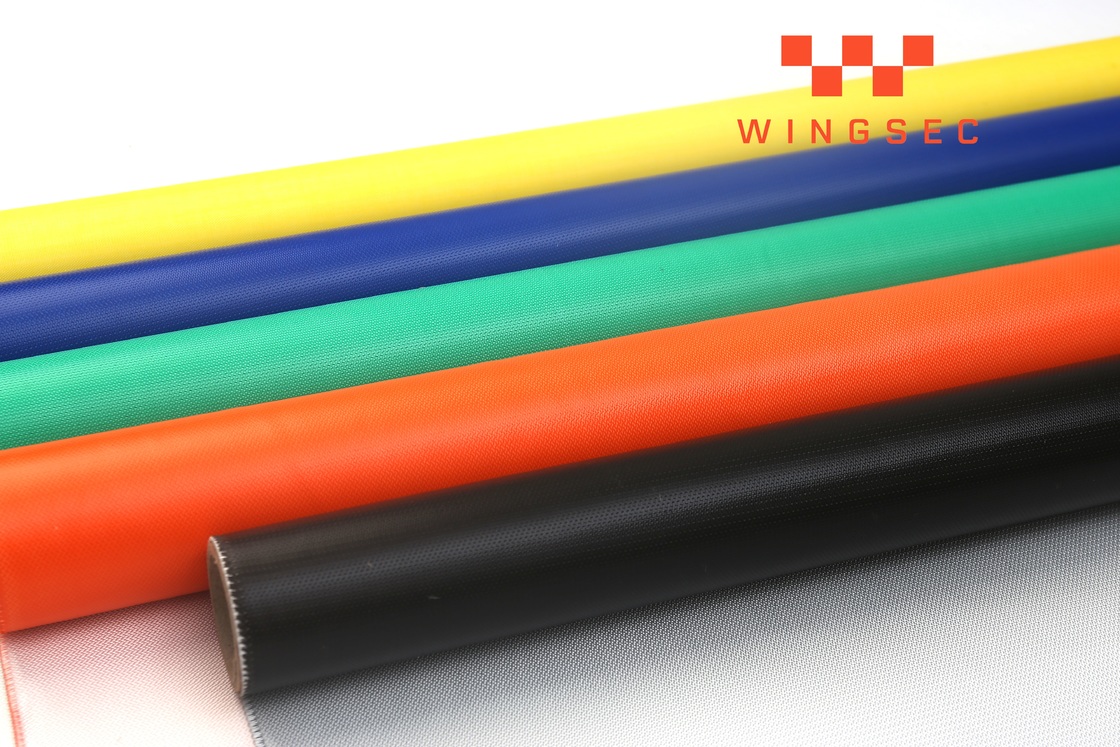

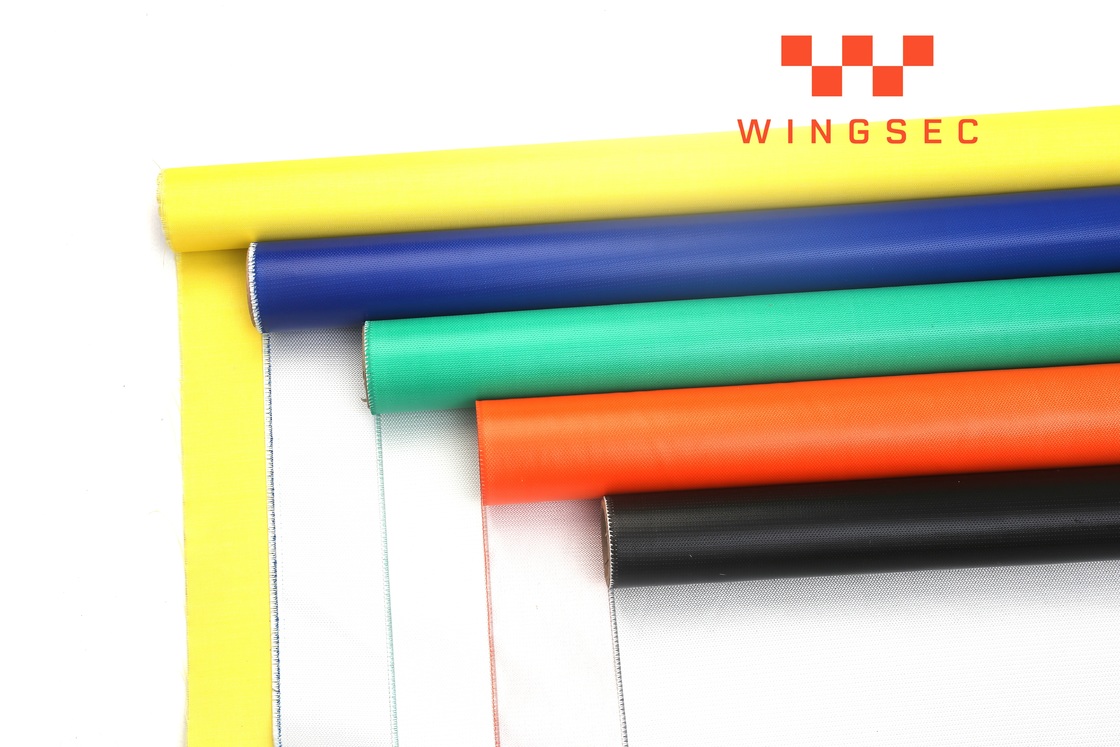

0.4mm Thickness Fireproof Grey Silicone Coated Fiberglass Fabric for Heat Resistant
Silicone Coated Fabric Introduction
Wingsec 0.4mm thickness silicone coated fabric is used twill weaved fiberglass fabric, then coated with special formulated silicone rubber on one side or double sides. It has many features, such as heat resistant, fireproof, water resistance, electric isolation, chemical resistance, abrasion resistance, and UV or weather resistance. Available in a wide variety of colors, such as silver, gray, red, white, yellow, black or other colors. Silicone fabric is often used for fire protection, heat insulation, and high temperature applications.
Technique Data Sheets
| WS3732 LG1 Grey Silicone Coating Fiberglass Cloth | ||
| Item Model | WS3732 LG1 Grey | |
| Description | E-glass Silicone Coating Industry Fabric | |
| Weave Structure | 1/3 Twill | |
| Cloth Weight | 430gsm | |
| Silicone Coating | 80g/m2 | |
| Thickness | 0.43mm | |
| Yarn Type | Warp | EC9 136 Tex |
| Weft | EC9 136Tex | |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 12±1 ends/cm | |
| Breaking Strength | Warp | >700N/cm |
| Weft | >600N/cm | |
| Working Temperature | Basic fabric 550 ºC, Silicone coating 260 ºC | |
| Fire Resistance | Non-Flame | |
Much More Related Products
| Premier Quality | Thickness (mm) | Weight (g/m2) | Weaving |
| WS7628-LG2 | 0.2mm | 230 |
Plain |
| WS7628-LG2 | 0.23mm | 280 | Plain |
|
WS3732-LG1 |
0.4mm | 510 | Twill |
| WS3732-LG2 | 0.45mm | 590 | Twill |
| WS666-LG1 | 0.6mm | 750 | 8 H Satin |
| WS666-LG2 | 0.7mm |
850 |
8 H Satin |
| WS3784-LG1 | 0.8mm |
950 |
8 H Satin |
| WS3784-LG2 | 0.9mm | 1050 | 8 H Satin |
How to choose Knife Silicone Coating Fiberglass Fabric
| Knife Silicone Coating Difference Between Premier and Industry Quality | |||
| Premier Quality | Industry Quality | ||
| 1 | Loomstate | High-speed Rapier Weaving Machine | Normal Dornier (small weaving defects might occur occasionally) |
| 2 | Silicone | Wet, High-Quality Silicone Rubber | Dry, Standard Silicone Rubber |
| 3 | Apperance | Shiny and Tacky | Dull but Smooth |
| 4 |
Performance |
Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance | Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances |
| 5 | Application | Mostly for Removable Insulation Jackets | Mostly for Welding, But Also for Economic Removable Insulation Jackets |
Silicone Coating Cloth Features
The products are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated with silicone rubber, which is a brand new product with good performance and multiple applications. On request, one side silicone coated or both sides silicone coated products are both available, customers color available.
Application
Industry Conveyor belt and flexible hoses, expansion joints.
Serve as welding blankets, foundry splash protection, heat protection quilt.
Acoustic insulation of piping works
Electrical insulation, chemical resistant, UV light, abrasion and contamination resistance, packing material.
Others: Apart from the above application, silicone fiberglass fabric can also be used as sealing material, temperature resistance, and anti-corrosion conveyer belt and packaging material.
Fireproof Bag Welding Blanket
Fireproof Insulation Jacket Fire & Smoke Curtain
Silicone Coating Fiberglass Fabric RFQs
1. Are you a silicone coated fiberglass fabric manufacturer?
A. Yes, we are a factory specializing in the production of heat or flame resistance fabrics and coated fabrics. Our factory is located in Yangzhou, Jiangsu,China.
2. What is the temperature resistance of the silicone coated fiberglass?
A. Silicone coated fabric is composed of silicone coating and glass fiber cloth. The temperature of the silicone coating is 250 C degrees, and the glass fiber cloth is 550 C degrees.
3. What is the main applications of silicone coated fiberglass cloth?
A. High temperature removable jackets, valve covers, welding blanket and curtains, expansion joints, fire blankets, splash curtains, conveyor belt.
4. Can silicone coated fiber glass fabric be used in industry?
A.Yes — silicone coated fiberglass fabric is widely used in industry, because it combines the strength and thermal resistance of fiberglass with the durability, flexibility, and chemical resistance of silicone rubber. You can email us(angelo.cheng@yd-wingsec.com) to learn more about it.
