Industrial Silicone Coated Fiberglass Fabric for Oil and Water Resistance in Harsh Environments
Silicone Coated Fabric Introduction
High-temperature resistant silicone fabric is made of high-quality glass fiber, possessing excellent high-temperature and corrosion resistance, and coated with silicone rubber. It is a high-performance, versatile new product.

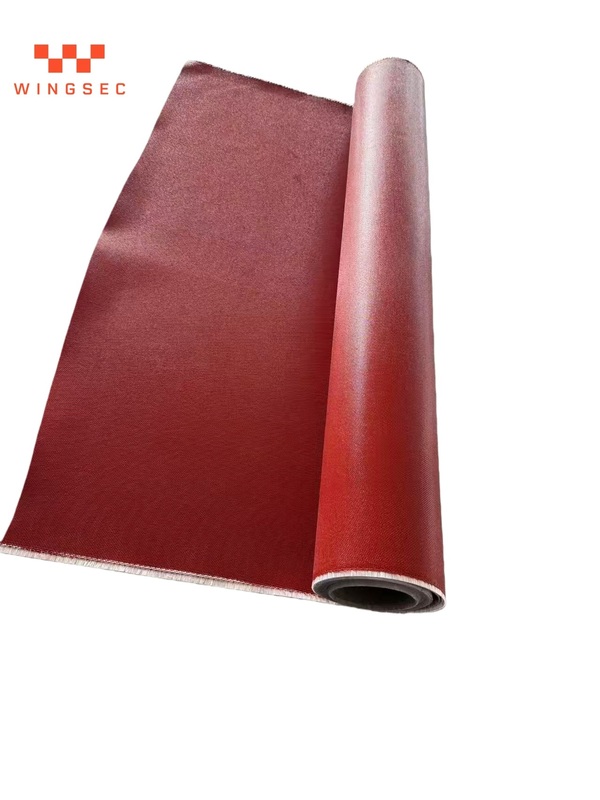

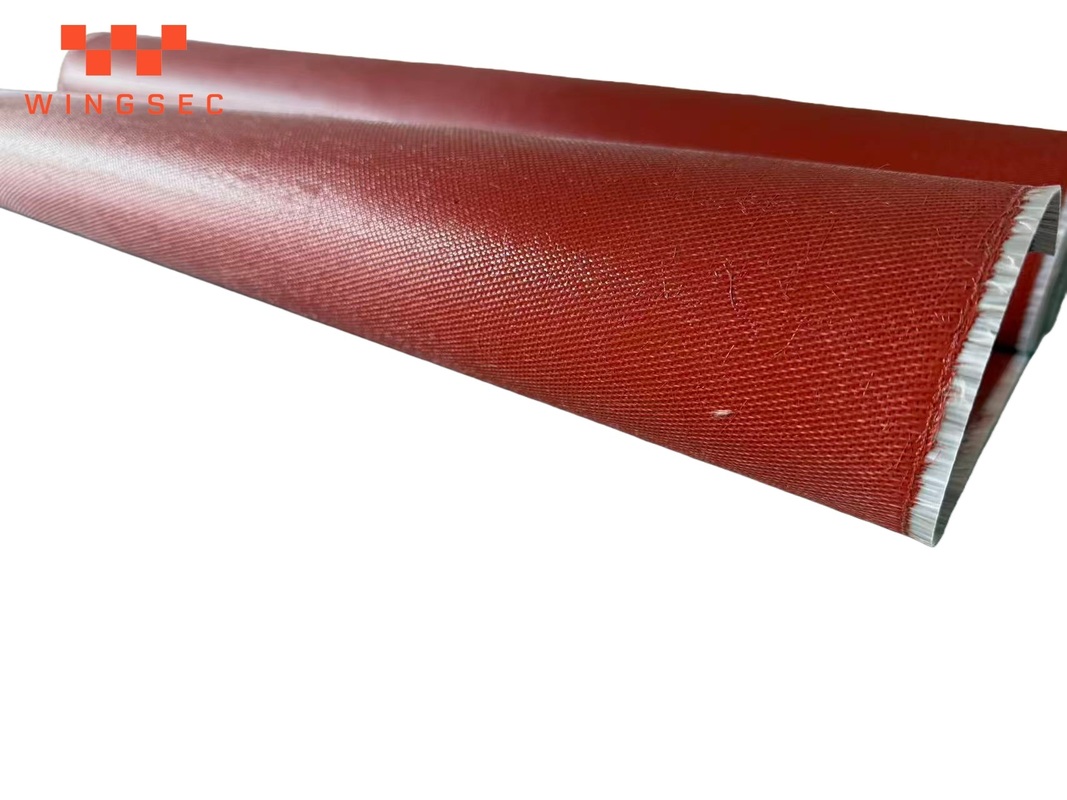

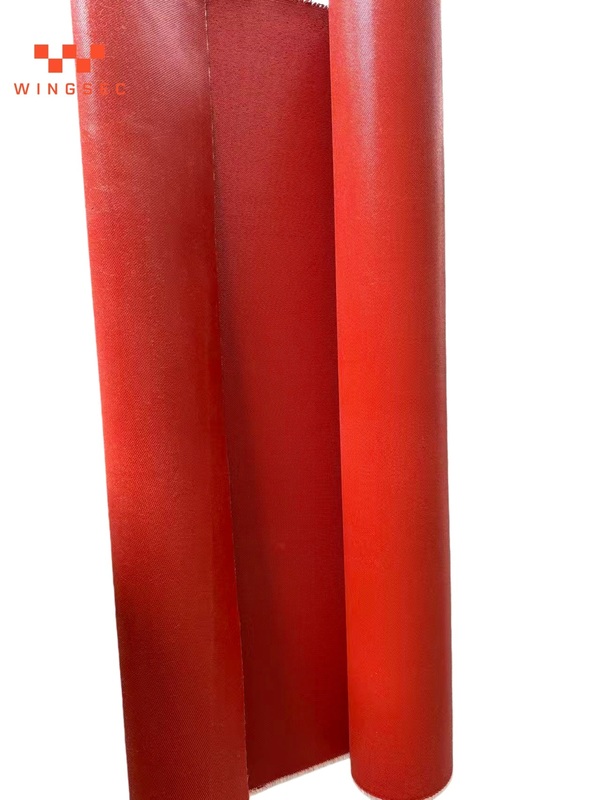

This is a double-sided silicone-coated fabric based on E-glass fiber. The silicone coating is durable, wear-resistant, and can withstand high temperatures. Compared to uncoated fabric, it not only extends service life but also has stronger oil, water, and electrical insulation properties. The operating temperature range of this coated glass fiber fabric is -70~260℃.
Alkali-free fiber (commonly known as E-glass fiber): With an R2O content of less than 0.8%, it is an aluminoborosilicate composition. It has excellent chemical stability, electrical insulation properties, and strength. It is mainly used as an electrical insulation material, glass fiber reinforcing material, and tire cord.
Technique Data Sheets
| BASE FABRIC |
Base fabric style No. YD3732 |
| |
(metric) |
(English) |
Test methods |
| Weave |
8H Satin |
Crowfoot |
|
| Yarn |
|
|
|
| Warp |
EC9 68 1*3 |
ECG 75 1/3 |
|
| Weft |
EC9 68 1*3 |
ECG 75 1/3 |
|
| Construction |
|
|
|
| Warp |
16 ± 1 ends/cm |
40 ± 3 ends/inch |
ASTM D 3775-96 |
| Weft |
15± 1 picks/cm |
38 ± 3 picks/inch |
ASTM D 3775-96 |
| Weight |
630 ± 30 g/m2 |
18.5 ± 0.9 oz/yd2 |
ASTM D3776-96 |
| Thickness |
0.7 ± 0.06 mm |
0.03 ± 0.002 inch |
ASTM D1777-96 |
| COATED FABRIC |
Coating style No. WS3732-LG2-160g |
| Coating |
Silicone rubber 2 sides |
|
|
| Weight |
830 ± 30 g/m2 |
24.48 ± 0. 88oz/yd2 |
ASTM D3776-96 |
| Thickness |
0.7± 0.02 mm |
0.028 ± 0.0007 inch |
ASTM D1777-96 |
| Color |
Red |
| Fire resistance |
Flame retardant |
| Temp resistance |
Glass fabric up to 5500C (10000F) |
| Silicone rubber coating up to 2500C (4800F) |
Much More Related Products
| Premier Quality |
Thickness (mm) |
Weight (g/m2) |
Weaving |
| WS7628-LG2 |
0.2mm |
230 |
Plain
|
| WS7628-LG2 |
0.23mm |
280 |
Plain |
|
WS3732-LG1
|
0.4mm |
510 |
Twill |
| WS3732-LG2 |
0.45mm |
590 |
Twill |
| WS666-LG1 |
0.6mm |
750 |
8 H Satin |
| WS666-LG2 |
0.7mm |
850
|
8 H Satin |
| WS3784-LG1 |
0.8mm |
950
|
8 H Satin |
| WS3784-LG2 |
0.9mm |
1050 |
8 H Satin |
How to choose Knife Silicone Coating Fiberglass Fabric
| Knife Silicone Coating Difference Between Premier and Industry Quality |
| |
|
Premier Quality |
Industry Quality |
| 1 |
Loomstate |
High-speed Rapier Weaving Machine |
Normal Dornier (small weaving defects might occur occasionally) |
| 2 |
Silicone |
Wet, High-Quality Silicone Rubber |
Dry, Standard Silicone Rubber |
| 3 |
Apperance |
Shiny and Tacky |
Dull but Smooth |
| 4 |
Performance
|
Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance |
Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances |
| 5 |
Application |
Mostly for Removable Insulation Jackets |
Mostly for Welding, But Also for Economic Removable Insulation Jackets |
Silicone Coating Cloth Features
Silicon fiber glass cloth is specially designed to retain the unique properties of silicon fiber while incorporating glass fiber into the matrix, giving it additional advantages such as dimensional stability, durability, excellent tensile strength, and low elongation. Furthermore, it can be used in a temperature range of -94°F to +500°F (-70°C to +260°C).
Application
Fiberglass cloth is commonly used as a reinforcing material in composite materials, electrical insulation materials, thermal insulation materials, and circuit boards, making a significant contribution to the national economy.
Fiberglass cloth is widely used in wall reinforcement, external wall insulation, and roof waterproofing. It can also be used to reinforce wall materials such as cement, plastics, asphalt, marble, and mosaic.
In the industrial field, fiberglass cloth is mainly used for thermal insulation, fireproofing, and flame retardancy. When burning, this material absorbs a large amount of heat, preventing the spread of flames and thus isolating the air.
In the filtration field, fiberglass cloth can be used for gas and liquid filtration.
Silicone Coating Fiberglass Fabric RFQs
1. Are you a silicone coated fiberglass fabric manufacturer?
A. Yes, we are a factory specializing in the production of heat or flame resistance fabrics and coated fabrics. Our factory is located in Yangzhou, Jiangsu,China.
2. What is the temperature resistance of the silicone coated fiberglass?
A. Silicone coated fabric is composed of silicone coating and glass fiber cloth. The temperature of the silicone coating is 250 C degrees, and the glass fiber cloth is 550 C degrees.
3. What is the main applications of silicone coated fiberglass cloth?
A. High temperature removable jackets, valve covers, welding blanket and curtains, expansion joints, fire blankets, splash curtains, conveyor belt.
4. Can silicone coated fiber glass fabric be used in industry?
A.Yes — silicone coated fiberglass fabric is widely used in industry, because it combines the strength and thermal resistance of fiberglass with the durability, flexibility, and chemical resistance of silicone rubber. You can email us(angelo.cheng@yd-wingsec.com) to learn more about it.
